The precision µX8600 is an effective X-ray inspection system for Printed circuit boards with ICs such as BGAs. The camera's tilt function allows for inspection of objects in three dimensions. This allows inspection of various components such as multilayer PCBs, voids, barrel fill (THT), etc.
The precision μX8600 is an advanced X-ray inspection system, specifically engineered for the detailed analysis of populated Printed Circuit Boards (PCBs). It is the ideal solution for inspecting complex components such as Ball Grid Arrays (BGAs), Chip Scale Packages (CSPs), and other fine-pitch devices.
The system's integrated tilt and rotation mechanism allows for sophisticated oblique and 360-degree viewing, enabling multi-dimensional analysis of internal structures. This capability is crucial for accurately identifying challenging defects within multilayer PCBs, detecting subtle voids in solder joints, and verifying the quality of barrel fill in Through-Hole Technology (THT) components. The μX8600 empowers engineers to perform comprehensive failure analysis and quality control with unparalleled clarity.
Multi-angle view with tilting camera
X-ray camera can be tilted to capture images from various angles. Equipped with a large stage to accommodate large specimens
By tilting the camera, large objects can be observed from an angle without being fixed. Furthermore, the use of a turntable eliminates the need to open the door to fine-tune the object position for efficient oblique observation.
Tilt camera
Tilt Rotation
X-ray tube voltage: 130 kV, Power: 10 W
X-ray tube voltage: 130 kV, Power: 40 W
High penetrating power 130 kV X-ray tube
Capable of observing samples covered with metal and thick objects
Even objects that are difficult to penetrate, such as power semiconductors, electronic components with heat sinks, and thick-walled aluminum die-castings, can be observed with an X-ray penetrating power of 130 kV.
X-ray tube voltage: 90 kV, Power: 18 W

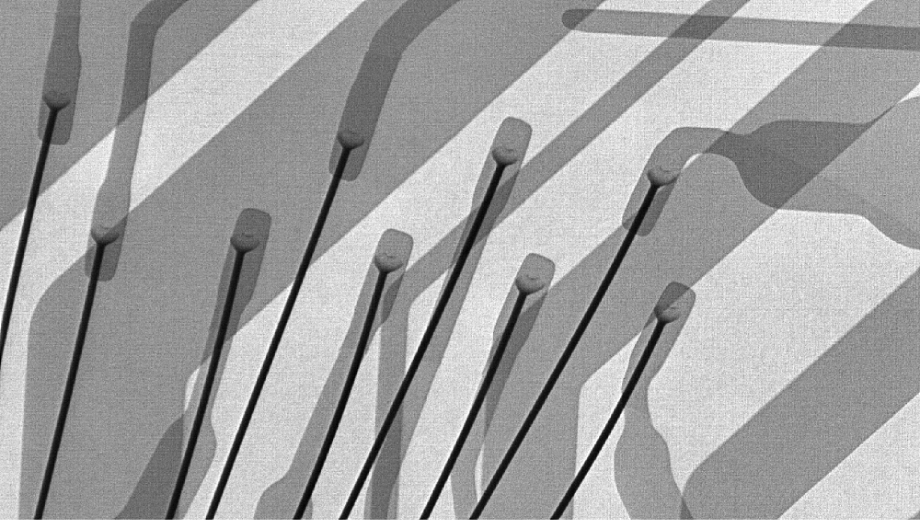

High-resolution digital flat panel detector
High-resolution 3-megapixel camera, state-of-the-art image processing technology, and our originally developed Microfocus X-ray tube to achieve unprecedented image quality.
With a combination of the high-resolution camera (14-bit), X-ray tube developed by Matsusada, and the latest image processing function HDR-Pro, the precision µX8600 enables you to obtain high-quality images with a wide dynamic range. This solution improves defect analysis and inspection efficiency.
Large sliding door
The large stage X: 400 mm × Y: 450 mm enables the inspection of large workpieces such as large printed circuit boards (PCBs).
The wide opening allows easy loading and unloading of objects and improves work efficiency.

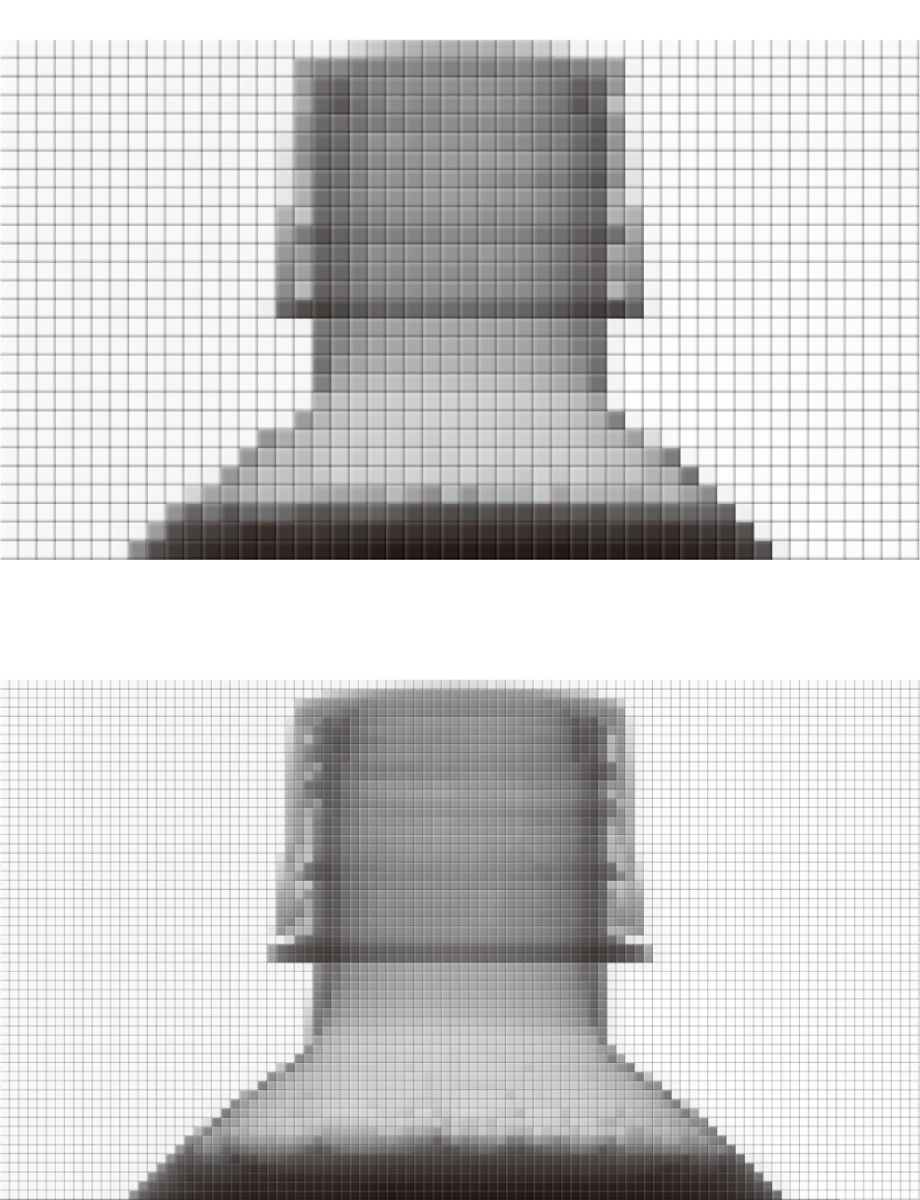

High resolution camera
Equipped with a 3-megapixel (optional 6-megapixel) detector, the precision µX8600 enables you to achieve clear images with high resolution.

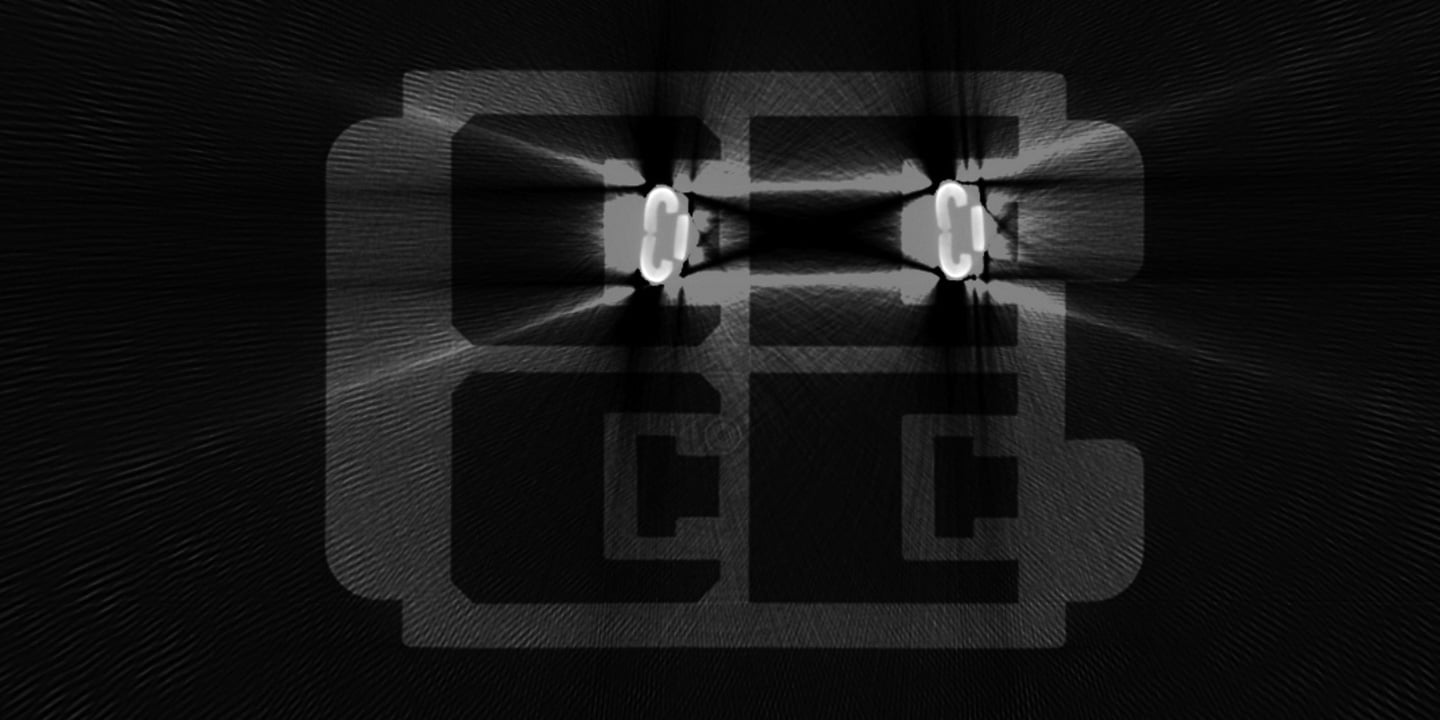

Metal artifact reduction function

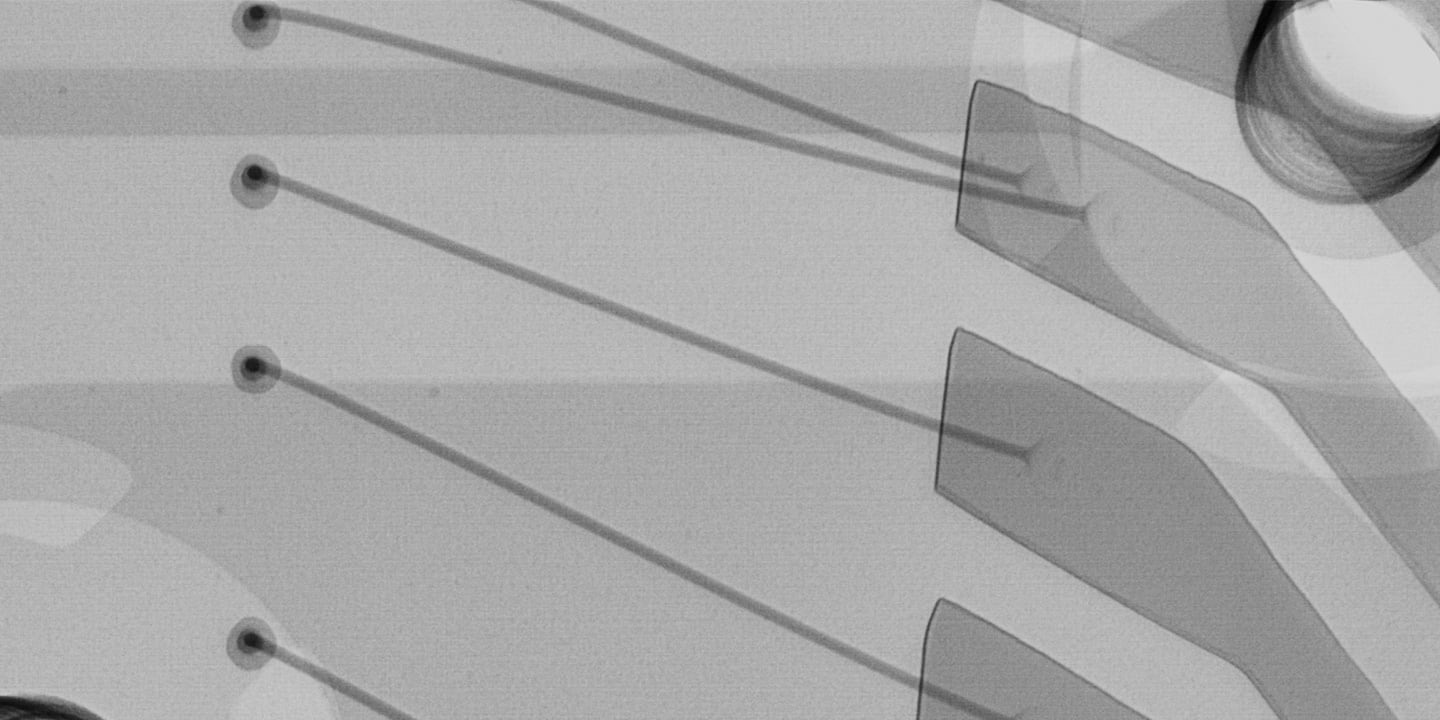

Introducing HDR-Pro: Our New X-ray Image Processing Function
The HDR-Pro function produces a wide dynamic range of radiographic images. This function makes it easier to see areas that are too bright and overexposed or dark and difficult to see. You can observe with X-ray images of optimal quality.

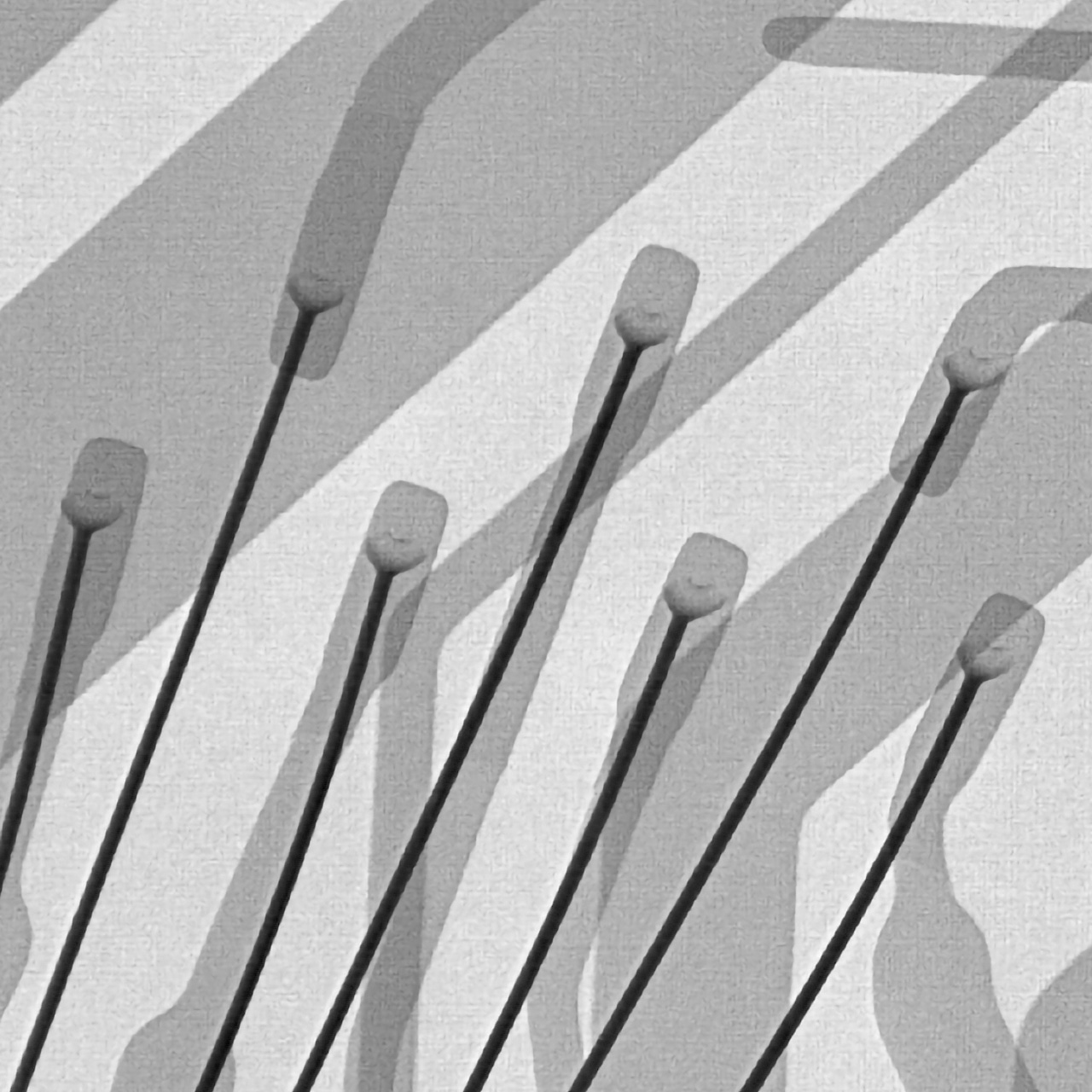

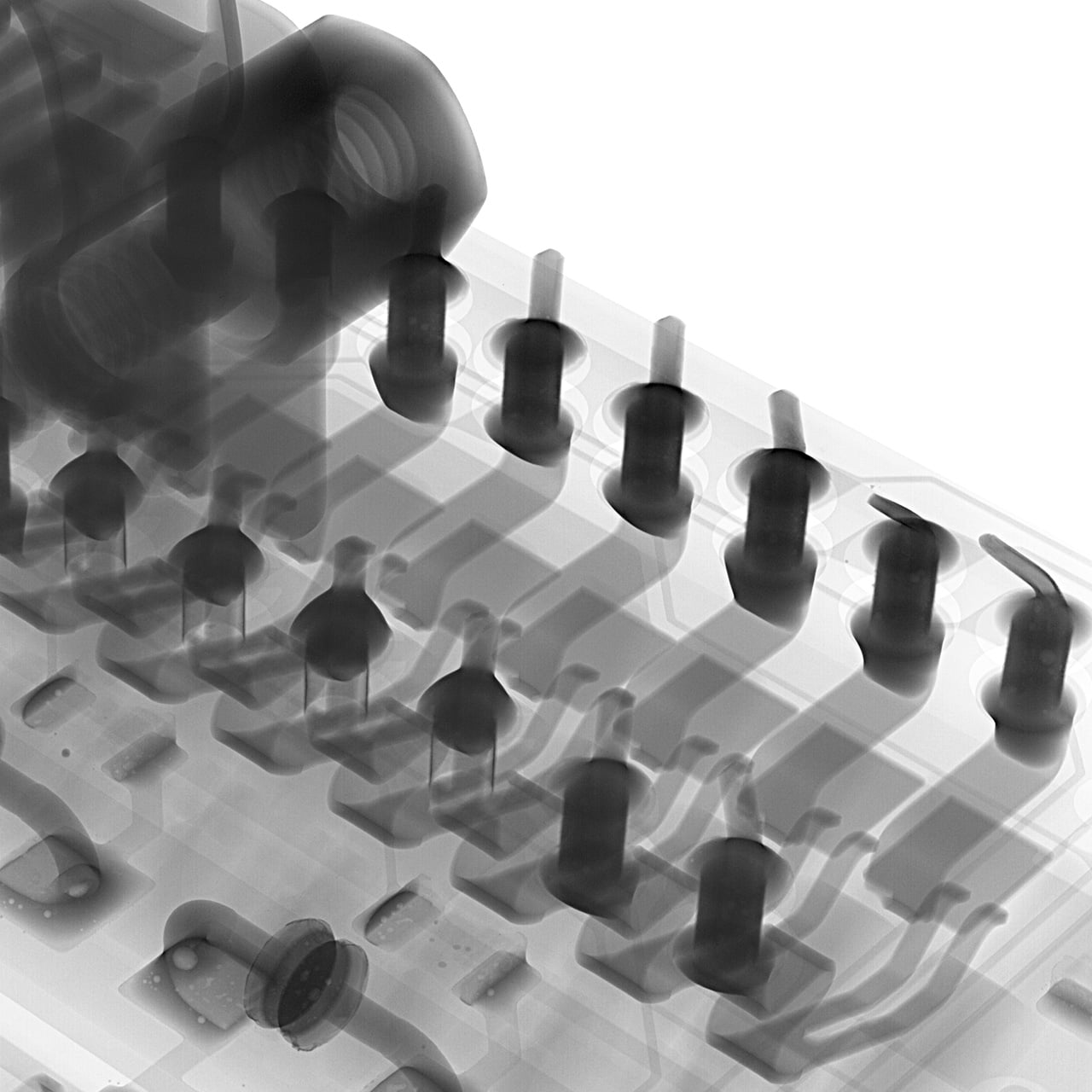

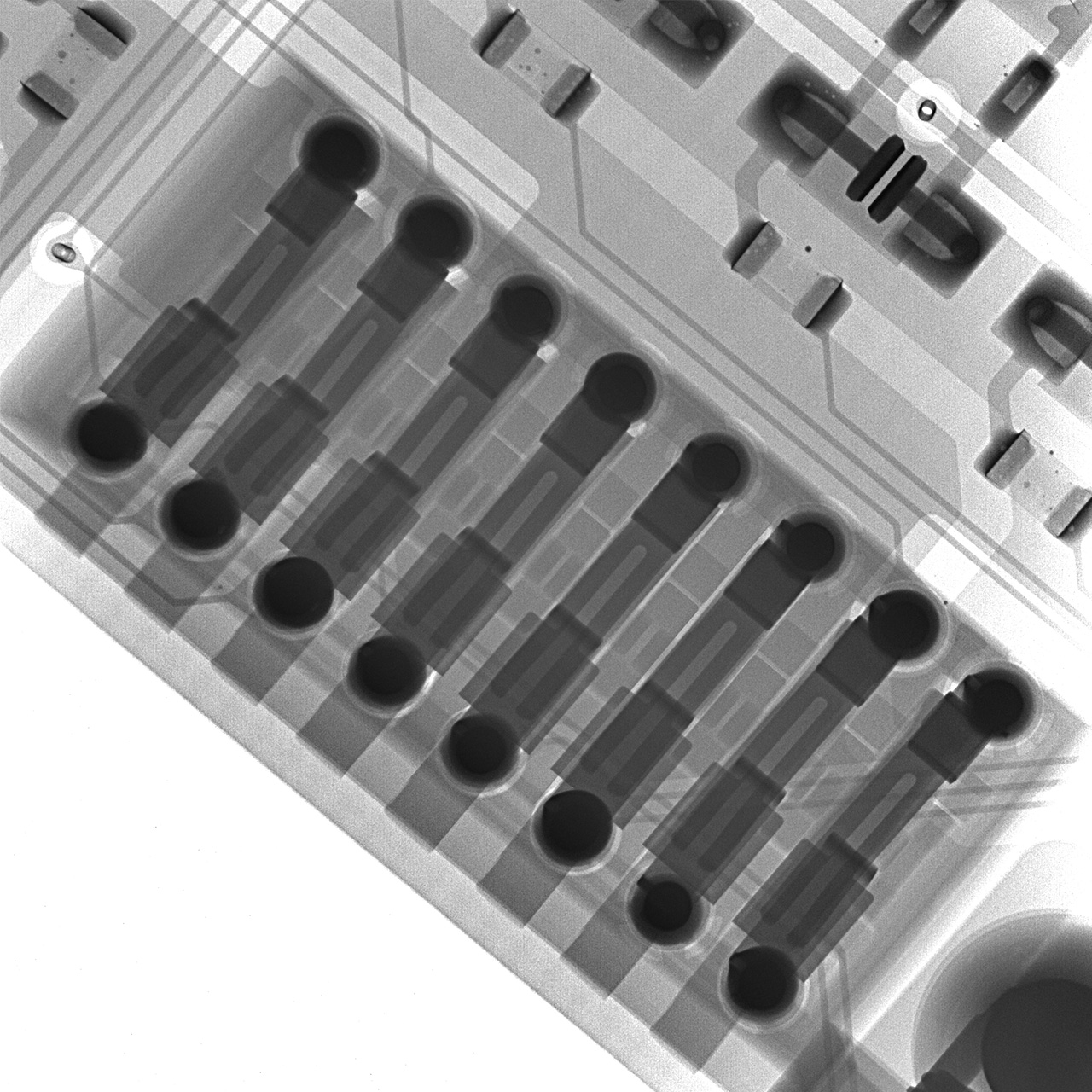

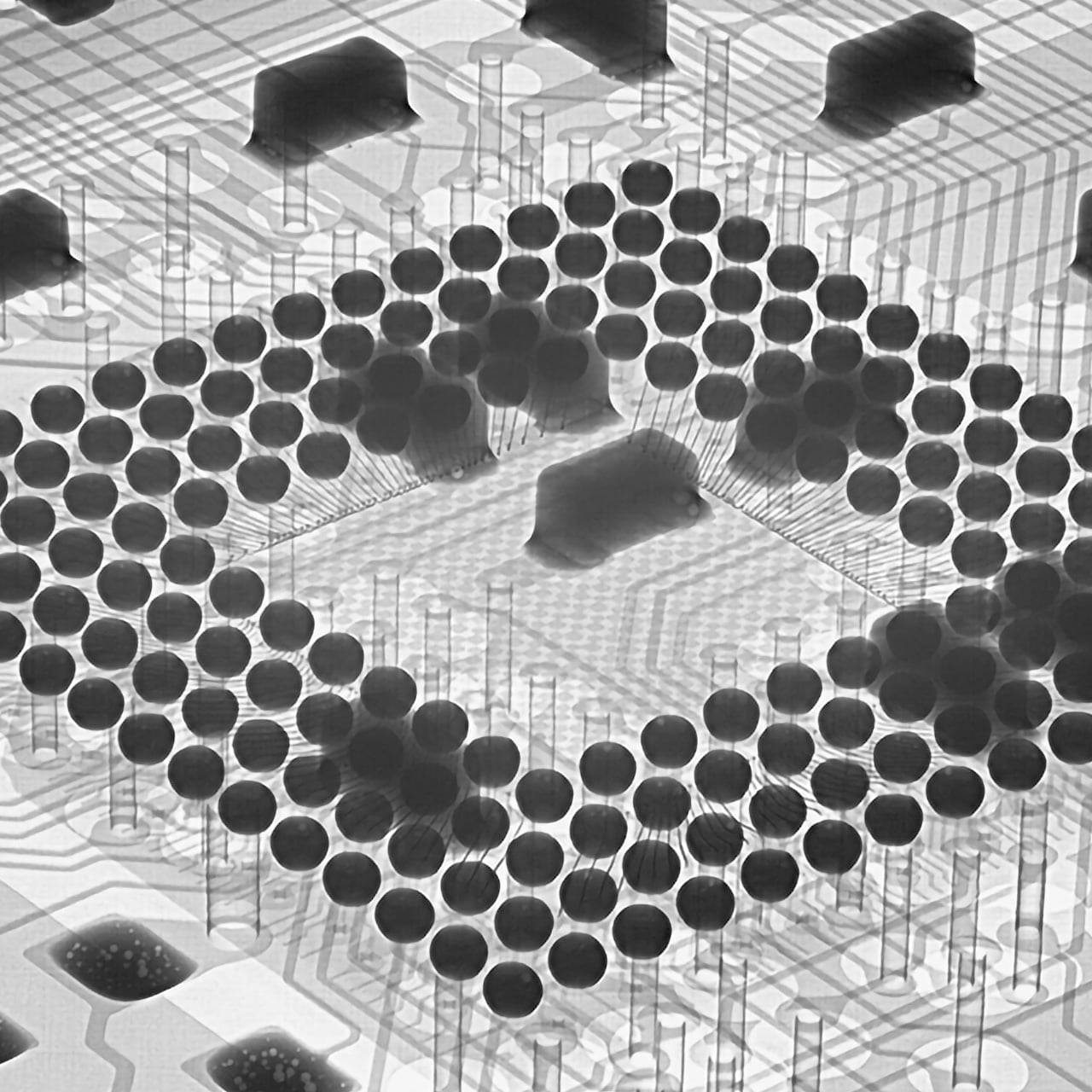

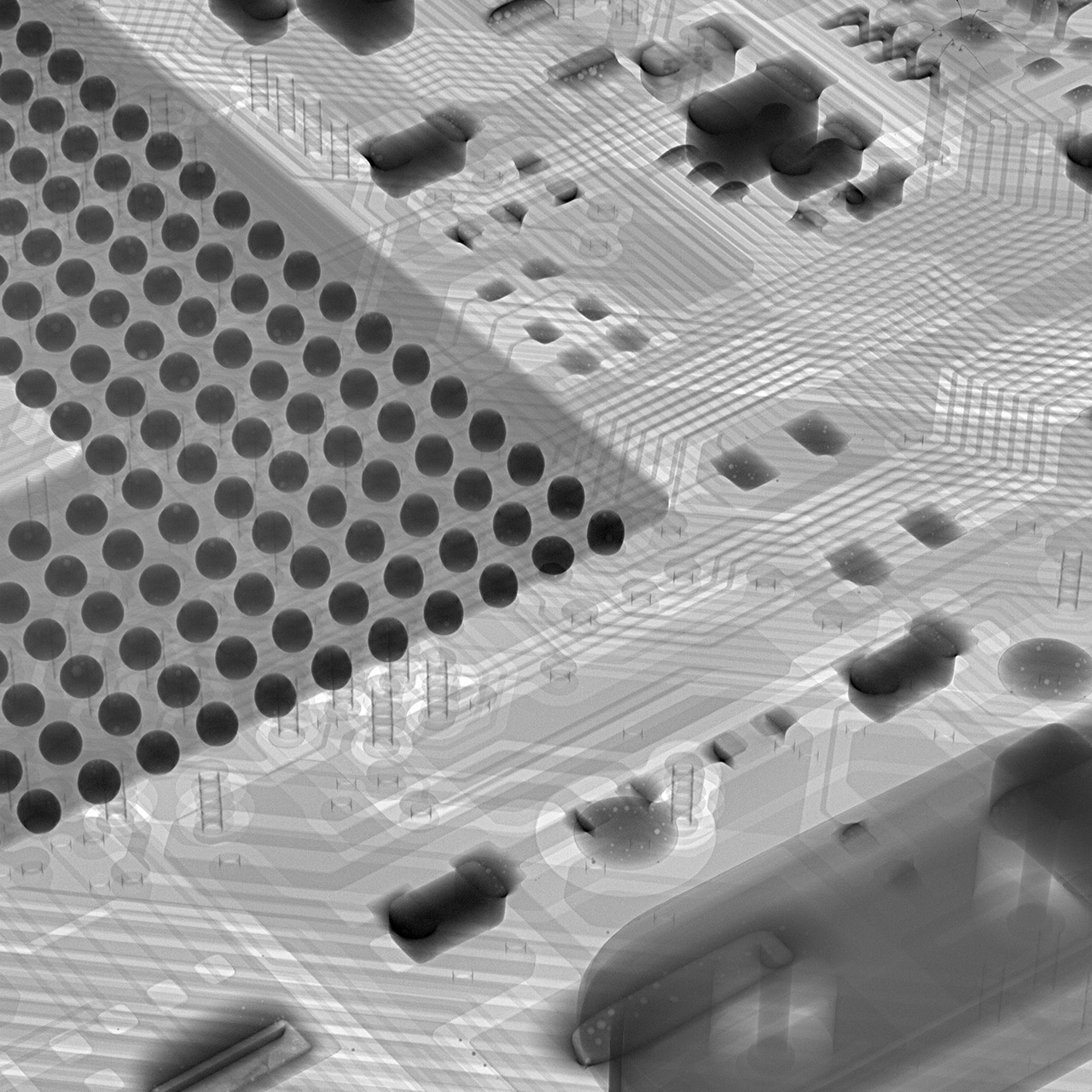

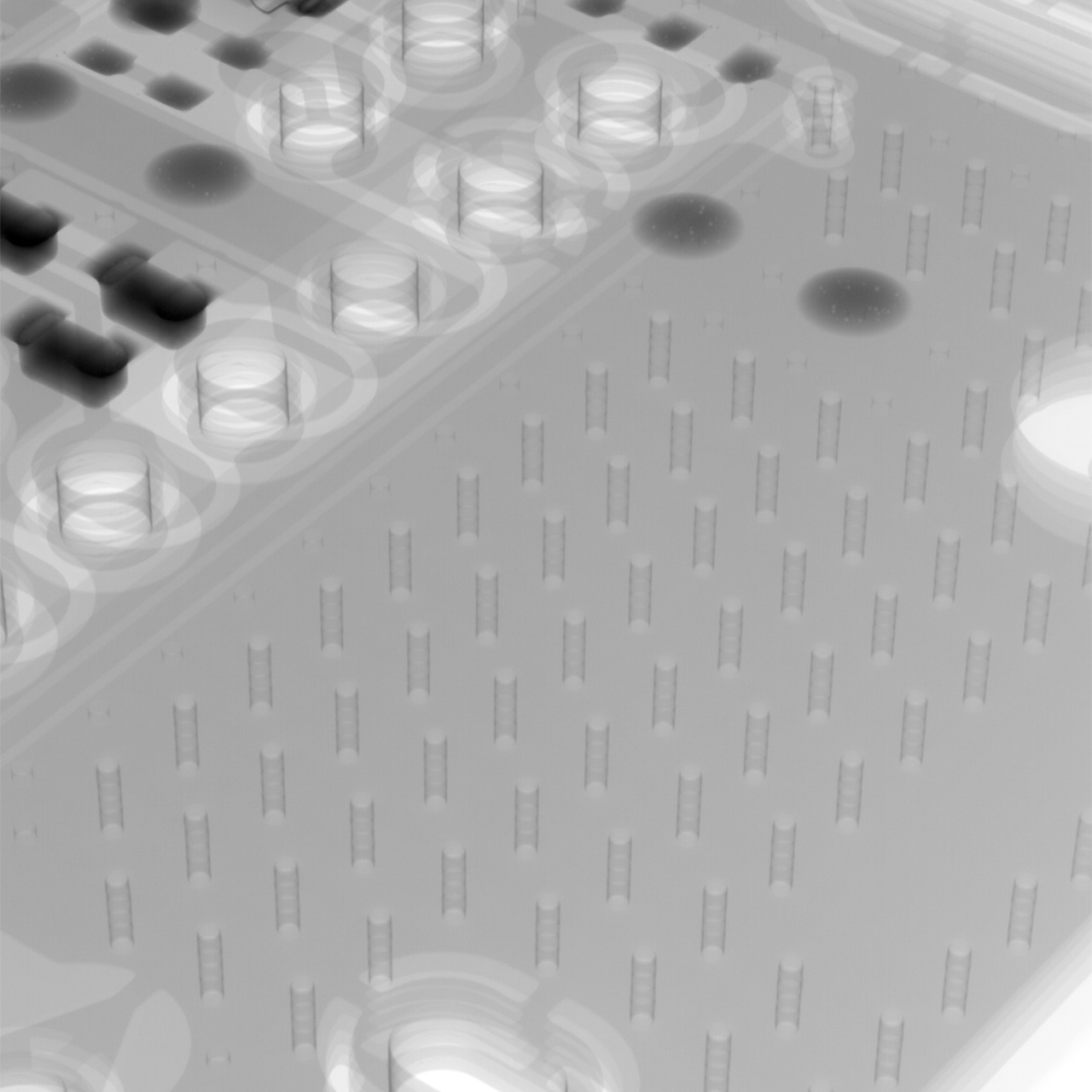

Image Gallery
