RACK MOUNT HIGH VOLTAGE POWER SUPPLIES
Ultra low noise and overwhelming high stability
- Voltage range: 1 to 150 kV
- Current: 0.2 to 30 mA
- Power: 15 to 120 W
- Local and remote operation
High-Performance High Voltage Power Supply with Ultra-Low Noise of a Minimum 1.5V in 150kV Output Models
The AE series is a high-performance rackmount high-voltage power supply offering a wide range of models with output voltages from 1 kV to 150 kV.
With ultra-low noise of 1.5 Vrms at 150 kV output, the AE series has already been highly evaluated in quality from Japan and abroad since its release.
The series meets the demand for high-performance and stable reference power supply. The series is also designed for highly reliable operation and has built-in protection circuits based on our power supply technology.
The product offers high reliability and safety that can ensure safe use at any time. In addition, the series comes with various functions of remote control and monitoring as standard. Using -LG option, remote PC control is available via LAN, USB, RS-232C, RS-485, and GPIB by adding the control adapter.
FEATURES AND BENEFITS
- Ultra low noise
- The original oscillation circuit suppresses spike noise to an extremely low level.
- Comprehensive functions
- The series is equipped with various remote functions, including output ON/OFF control, output voltage setting/control, output voltage/current monitoring, interlock switch, and other features that facilitate high-performance operation.
- Outstanding operability
- Two potentiometers, offering fine and coarse adjustments, allow for quick and precise output voltage settings. The large, highly visible LED meter ensures easy and accurate operation.
- Low ripple 10 ppm, High stability 50 ppm/hr.
- Wide lineup of high voltage power supply from 1 kV to 150 kV and 15 W to 120 W
- Local and remote operation
- Front panel adjustable overload trip level
- Remote and front panel monitoring of DC output voltage and current
- Automatic protection against overload, short circuit, and arc.
APPLICATIONS
- Electron microscope
- Voltage reference
- Electronic component evaluation test
- Mass Spectrometry (MS)
- Electron beam
- X-ray tube
- Electron gun
- Ion beam
- Insulation breakdown test
- Electron Beam Lithography (EBL)
- Scanning Electron Microscope (SEM)
- All kinds of high-voltage testing
Models
| Model | Max Output | |||
|---|---|---|---|---|
| Voltage | Current | Power | Ripple [rms] | |
| AE-1P15 | 1 kV | 15 mA | 15 W | 10 ppm |
| AE-1P30 | 30 mA | 30 W | ||
| AE-3P10 | 3 kV | 10 mA | 30 W | 10 ppm |
| AE-3P20 | 20 mA | 60 W | ||
| AE-5P6 | 5 kV | 6 mA | 30 W | 10 ppm |
| AE-5P12 | 12 mA | 60 W | ||
| AE-10P3 | 10 kV | 3 mA | 30 W | 10 ppm |
| AE-10P6 | 6 mA | 60 W | ||
| AE-20P1.5 | 20 kV | 1.5 mA | 30 W | 10 ppm |
| AE-20P3 | 3 mA | 60 W | ||
| AE-30P1 | 30 kV | 1 mA | 30 W | 10 ppm |
| AE-30P2 | 2 mA | 60 W | ||
| AE-40P0.75 | 40 kV | 0.75 mA | 30 W | 10 ppm |
| AE-40P1.5 | 1.5 mA | 60 W | ||
| AE-50P0.5 | 50 kV | 0.5 mA | 25 W | 10 ppm |
| AE-50P1 | 1 mA | 50 W | ||
| AE-60P0.5 | 60 kV | 0.5 mA | 30 W | 10 ppm |
| AE-60P1 | 1 mA | 60 W | ||
| AE-80P0.3 | 80 kV | 0.3 mA | 24 W | 10 ppm |
| AE-80P0.75 | 0.75 mA | 60 W | ||
| AE-100P0.3 | 100 kV | 0.3 mA | 30 W | 10 ppm |
| AE-120P0.25 | 120 kV | 0.25 mA | 30 W | 10 ppm |
| AE-120P1 | 1 mA | 120 W | ||
| AE-150P0.2 | 150 kV | 0.2 mA | 30 W | 10 ppm |
| Model | Max Output | |||
|---|---|---|---|---|
| Voltage | Current | Power | Ripple [rms] | |
| AE-1N15 | -1 kV | 15 mA | 15 W | 10 ppm |
| AE-1N30 | 30 mA | 30 W | ||
| AE-3N10 | -3 kV | 10 mA | 30 W | 10 ppm |
| AE-3N20 | 20 mA | 60 W | ||
| AE-5N6 | -5 kV | 6 mA | 30 W | 10 ppm |
| AE-5N12 | 12 mA | 60 W | ||
| AE-10N3 | -10 kV | 3 mA | 30 W | 10 ppm |
| AE-10N6 | 6 mA | 60 W | ||
| AE-20N1.5 | -20 kV | 1.5 mA | 30 W | 10 ppm |
| AE-20N3 | 3 mA | 60 W | ||
| AE-30N1 | -30 kV | 1 mA | 30 W | 10 ppm |
| AE-30N2 | 2 mA | 60 W | ||
| AE-40N0.75 | -40 kV | 0.75 mA | 30 W | 10 ppm |
| AE-40N1.5 | 1.5 mA | 60 W | ||
| AE-50N0.5 | -50 kV | 0.5 mA | 25 W | 10 ppm |
| AE-50N1 | 1 mA | 50 W | ||
| AE-60N0.5 | -60 kV | 0.5 mA | 30 W | 10 ppm |
| AE-60N1 | 1 mA | 60 W | ||
| AE-80N0.3 | -80 kV | 0.3 mA | 24 W | 10 ppm |
| AE-80N0.75 | 0.75 mA | 60 W | ||
| AE-100N0.3 | -100 kV | 0.3 mA | 30 W | 10 ppm |
| AE-120N0.25 | -120 kV | 0.25 mA | 30 W | 10 ppm |
| AE-120N1 | 1 mA | 120 W | ||
| AE-150N0.2 | -150 kV | 0.2 mA | 30 W | 10 ppm |
| Model | Max Output | |||
|---|---|---|---|---|
| Voltage | Current | Power | Ripple [rms] | |
| AE-1R15 | 1 kV / -1 kV | 15 mA | 15 W | 10 ppm |
| AE-1R30 | 30 mA | 30 W | ||
| AE-3R10 | 3 kV / -3 kV | 10 mA | 30 W | 10 ppm |
| AE-3R20 | 20 mA | 60 W | ||
| AE-5R6 | 5 kV / -5 kV | 6 mA | 30 W | 10 ppm |
| AE-5R12 | 12 mA | 60 W | ||
| AE-10R3 | 10 kV / -10 kV | 3 mA | 30 W | 10 ppm |
| AE-10R6 | 6 mA | 60 W | ||
| AE-20R1.5 | 20 kV / -20 kV | 1.5 mA | 30 W | 10 ppm |
| AE-20R3 | 3 mA | 60 W | ||
| AE-30R1 | 30 kV / -30 kV | 1 mA | 30 W | 10 ppm |
| AE-30R2 | 2 mA | 60 W | ||
| AE-40R0.75 | 40 kV / -40 kV | 0.75 mA | 30 W | 10 ppm |
| AE-40R1.5 | 1.5 mA | 60 W | ||
| AE-50R0.5 | 50 kV / -50 kV | 0.5 mA | 25 W | 10 ppm |
| AE-50R1 | 1 mA | 50 W | ||
| AE-60R0.5 | 60 kV / -60 kV | 0.5 mA | 30 W | 10 ppm |
| AE-60R1 | 1 mA | 60 W | ||
| Bipolar switching has an internal connector replacement method. | ||||

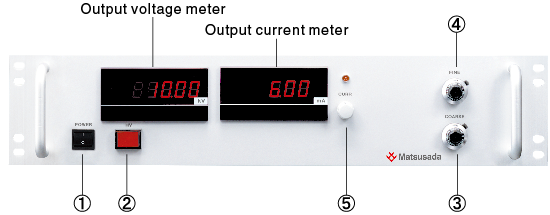

Functions
Normal Operation: Output (1) to (5), conversely to stop operation.
- POWER ON/OFF switch: This has priority over all operations.
- High voltage ON/OFF switch:
Output is enable when this is ON. External output can be turned ON/OFF only when high voltage switch is ON. This switch is also used for resetting interlock and cut off mode. - COARSE potentiometer (10-turn, lockable)
- FINE potentiometer (10-turn, lockable)
- Overload trip level setting dial: 1-turn LED is lit up when the protection circuit is operating.
- GND terminal(M6)
- AC inlet
- FUSE
- OUTPUT connector (Matsusada precision's property)
- Output voltage monitor
- Output current monitor
- Connector for USB, RS-232C, RS-485, and GPIB interface, and changing-over switch (option)

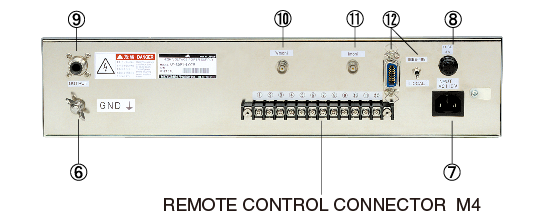

REMOTE CONTROL CONNECTOR M4

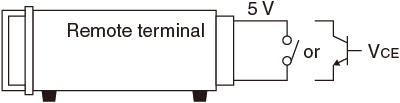

External output ON/OFF *
| Output | External relay | Open collector |
|---|---|---|
| ON | Short | VCE ≤ 0.4 V |
| OFF | Open | VCE ≥ 2 V |
Sink current ≥ 10 mA
Output control
| Output voltage | LR | Vcon |
|---|---|---|
| 0 to MAX | R2 0 to 5 kΩ |
0 to 10 V Input imp ≥ 10 kΩ |
Output is possible in external relay short or a status of VCE less than 0.4 V.
The output will be cut off when open or 2 V or remote. To work again, turn the OUTPUT switch ON after resetting by turning the OUTPUT switch OFF in a status of short or 0.4 V or less.
* -LG option: When the switch (12) is on the IEEE-488 side, the remote switch and output control are not enabled from a remote terminal, but from only IEEE-488 operation.
Interlock
Output is possible in external relay short or a status of VCE less than 0.4 V.
Output will be cut off when open or 2 V or more. To output again, turn the OUTPUT switch ON after resetting by turning the OUTPUT switch OFF in a status of short or 0.4 V or less.
* -LG option: When the switch (12) is on the IEEE-488 side, the remote switch and output control are not enabled from a remote terminal but from only the IEEE-488 operation.
Output monitor BNC receptacle *
- Vout: 0 to ±10 V（0 to +10 V)
- [standard] Monitor polarity equals output polarity
- [-LG option] Positive polarity regardless of high voltage polarity.
- Iout: 0 to +10 V
Output impedance is 1 kΩ. * -LG option: Generates output no matter whether a switch (12) is on or off.
Specifications
- Input voltage
- 115 Vac ±10％ (103.5 to 126.5 Vac), 50/60 Hz, Single-phase
- Output voltage control
-
[Local] "Coarse" and "Fine" 10-turn potentiometer on the front panel
[Analog remote] External control voltage 0 to 10 Vdc or external 5kΩ potentiometer
[Digital remote] Additional CO-HV adapter
Options
- -LC
-
Current limiting
Front panel adjustable 10% to 105% of maximum output current.
- -LG
-
Enables remote control via USB, LAN, RS-232C, RS-485, and GPIB interfaces
(CO-HV adapter is required.)
- -LN
-
Output state auto-recovery (former: no power failure protection)
AC input line ON/OFF enables High Voltage output ON/OFF.
- -LW
-
Slow start
10-second high voltage output ramp-up
- -L(230V)
-
Input voltage 198 Vac to 253 Vac, single-phase
- -L(3m)
-
Change the length of the High-voltage output shielded cable to 3 meters.
- -L(5m)
-
Change the length of the High-voltage output shielded cable to 5 meters. (only for ≤ 40 kV models)
- -L(7m)
-
Change the length of the High-voltage output shielded cable to 7 meters. (only for ≤ 10 kV models)
How to order
When ordering, add Option No. in the following order by alphabet, number to Model No.
Example: AE-60P1-LCGNW(230V)(3m)
Accessories
- Optical communication
-
Optical isolation adapters, utilize fiber optic cables for digital communication, which enables extremely reliable communication even in noisy environments such as in factories and for long-distance control. By using optical fibers, they are electrically isolated, so safe operation is possible even in power supply configurations with potential differences.
Application Control of high-voltage power supplies via LAN, USB, RS-232C, RS-485, or GPIB. Connection Using fiber optical cables, the adapter for each interface is connected to CO-HV units. With the dedicated control cable, the CO-HV units are connected to a high-voltage power supply AE series. Number of units Up to 32 pairs with CO-HV units and high-voltage power supplies are available. With GPIB, by setting the address, you can connect a maximum of 448 high-voltage power supply units (14 addresses x 32 units). Features The communication system is well suited for such situations where there is a distance between the computer and the high-voltage power supply or noisy environments. Also, it is especially ideal for use in combination with DC power supplies. The standard cable length is 2 meters, and it can be optionally extended up to 40 meters. -
Example of connecting

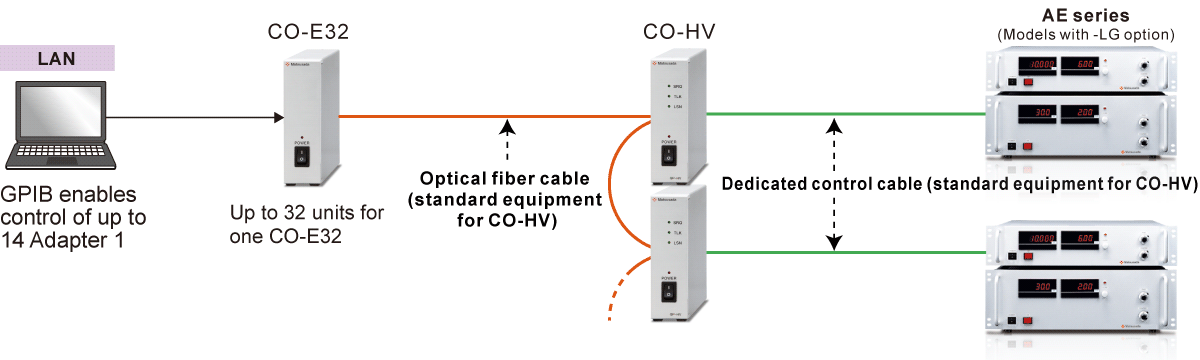

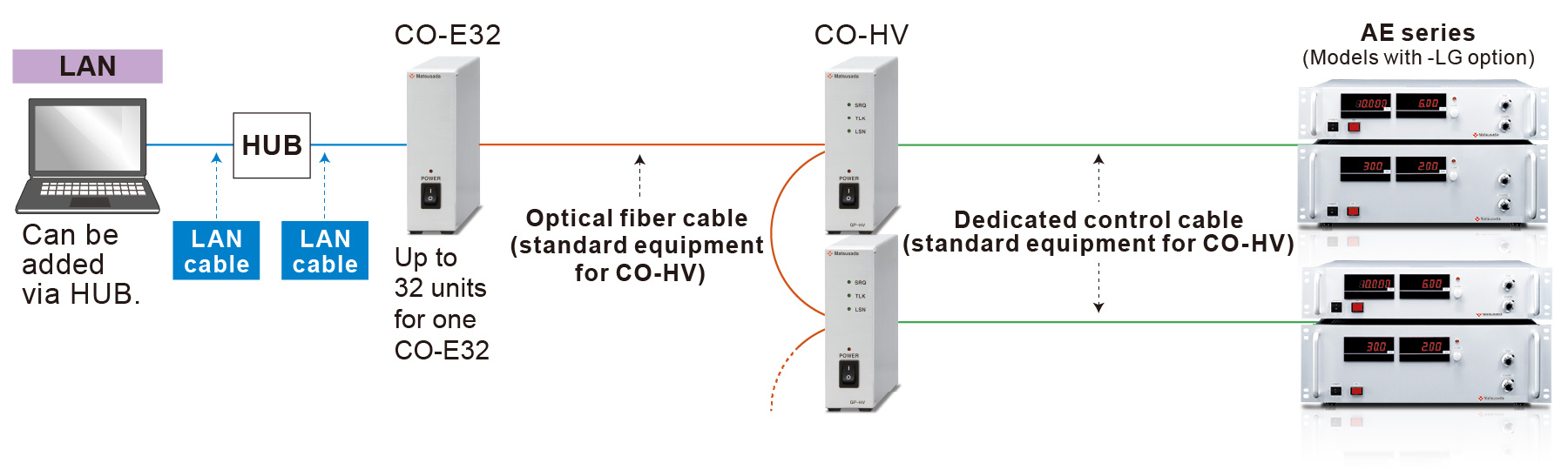

LAN
Order both CO-E32 and CO-HV (with CO-AF cables) together.

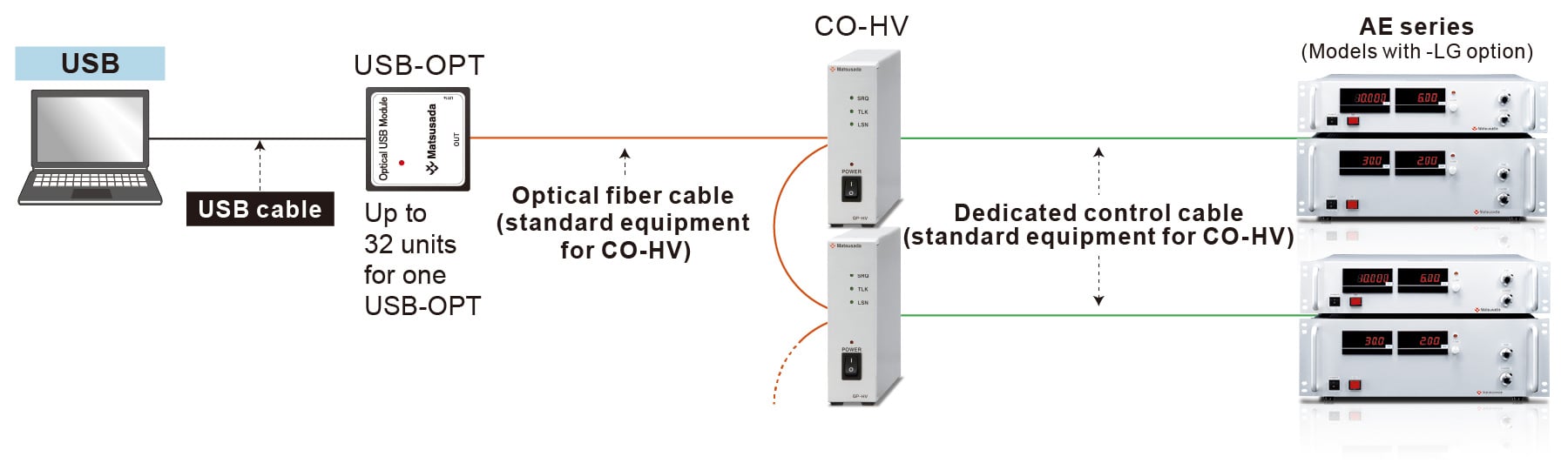

USB
Order both USB-OPT and CO-HV (with CO-AF cables) together.

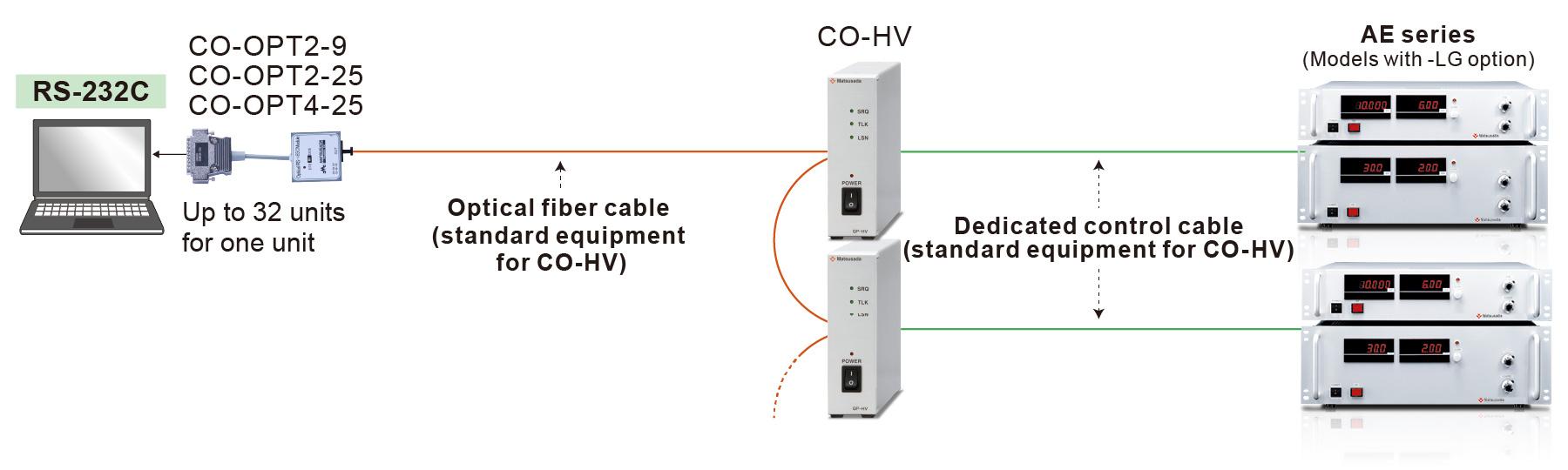

RS-232C and RS-485
Order CO-OPT2-9, CO-OPT2-25, or CO-OPT4-25 along with CO-HV (with CO-AF cables) together.

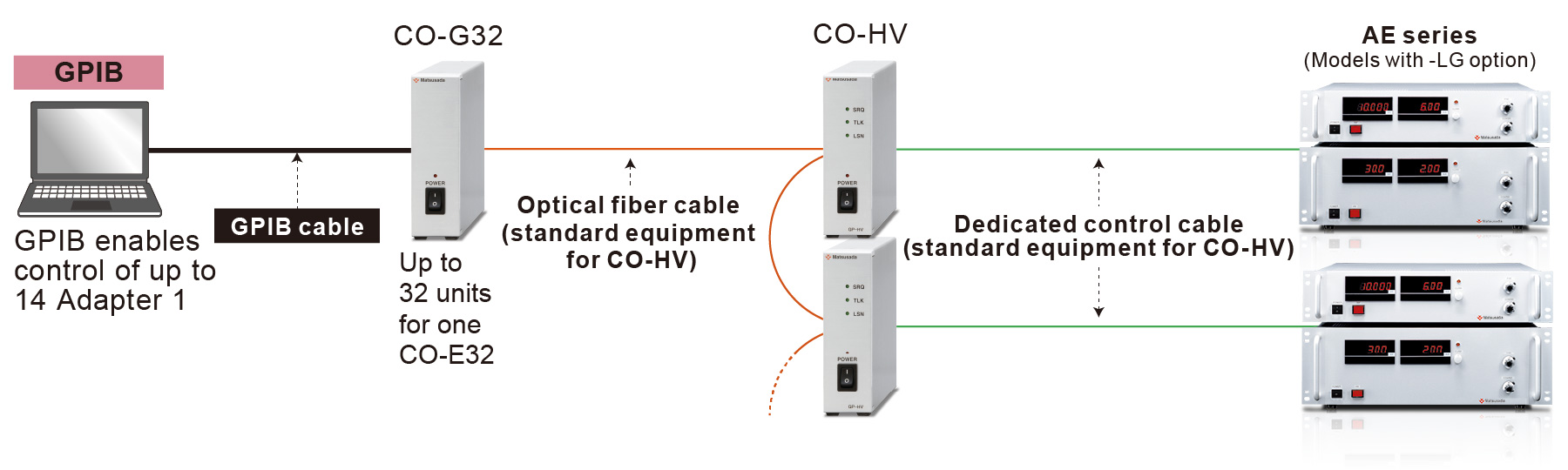

GPIB
Order both CO-G32 and CO-HV (with CO-AF cables) together.
- Application software
-
PSS2en series: Remote control, Test workflow design, and Data logging
PSS2en is the dedicated software that can actuate various power supplies, electronic loads, and digital controllers for power supplies manufactured by Matsusada Precision Inc. with a simple setup.
Click here for the PSS2en series
It is perfect for the aging test, the burn-in test, and the withstand voltage test for electronic parts, as well as for the endurance test, intermittent/continuous operation test, or various simulation tests for automobile electric components.
- Input cable
-
Included accessory CABLE TYPE1
125 V/10 A 2.5 meters
Fixed length
Included accessory
with -L(230V) optionCABLE TYPE3
250 V/10 A 2.5 meters
Fixed length
Additional accessory
with -L(230V) optionCABLE TYPE4
250 V/10 A 2.5 meters
Fixed length
Additional accessory
with -L(230V) optionCABLE TYPE13
250 V/15 A 2.5 meters
- Output Cable
-
[1 kV to 15 kV models] CN-15-MHVP
2.5meters
Specified length available[20 kV to 30 kV models] CN-30-MHVP
2.5meters
Specified length available[20 kV to 30 kV models] CN-30-MHVPP
2.5meters
Specified length available[40 kV models] CN-45-MHVPP
2.5meters
Specified length available[40 kV models] CN-45-MHVP
2.5meters
Specified length available[50 kV to 60 kV models] CN-60-MHVP [80 kV to 120 kV models] CN-120-MHVP
2.5 meters
Specified length available[150 kV or more models] CN-150-MHVP
2.5 meters
Specified length available
Dimensions
