An electron beam system is a highly sophisticated instrument that represents one of the most demanding applications for precision power supplies. It must simultaneously satisfy extremely stringent requirements for high voltage, high vacuum, and exceptional stability.
This page introduces the fundamentals of electron beam technology and explains the essential power supply systems required to achieve stable electron beam generation and control.
What is an Electron Beam?
An electron beam is a technology that accelerates electrons in a specific direction and focuses them into a narrow, concentrated beam.
Electrons are extremely light, charged particles that can be readily accelerated to high speeds using high voltage. Once accelerated, they carry significant kinetic energy and interact with a wide range of materials. Furthermore, because accelerated electrons have de Broglie wavelengths far shorter than those of visible light, electron beams enable exceptionally high-resolution observation, processing, and analysis.

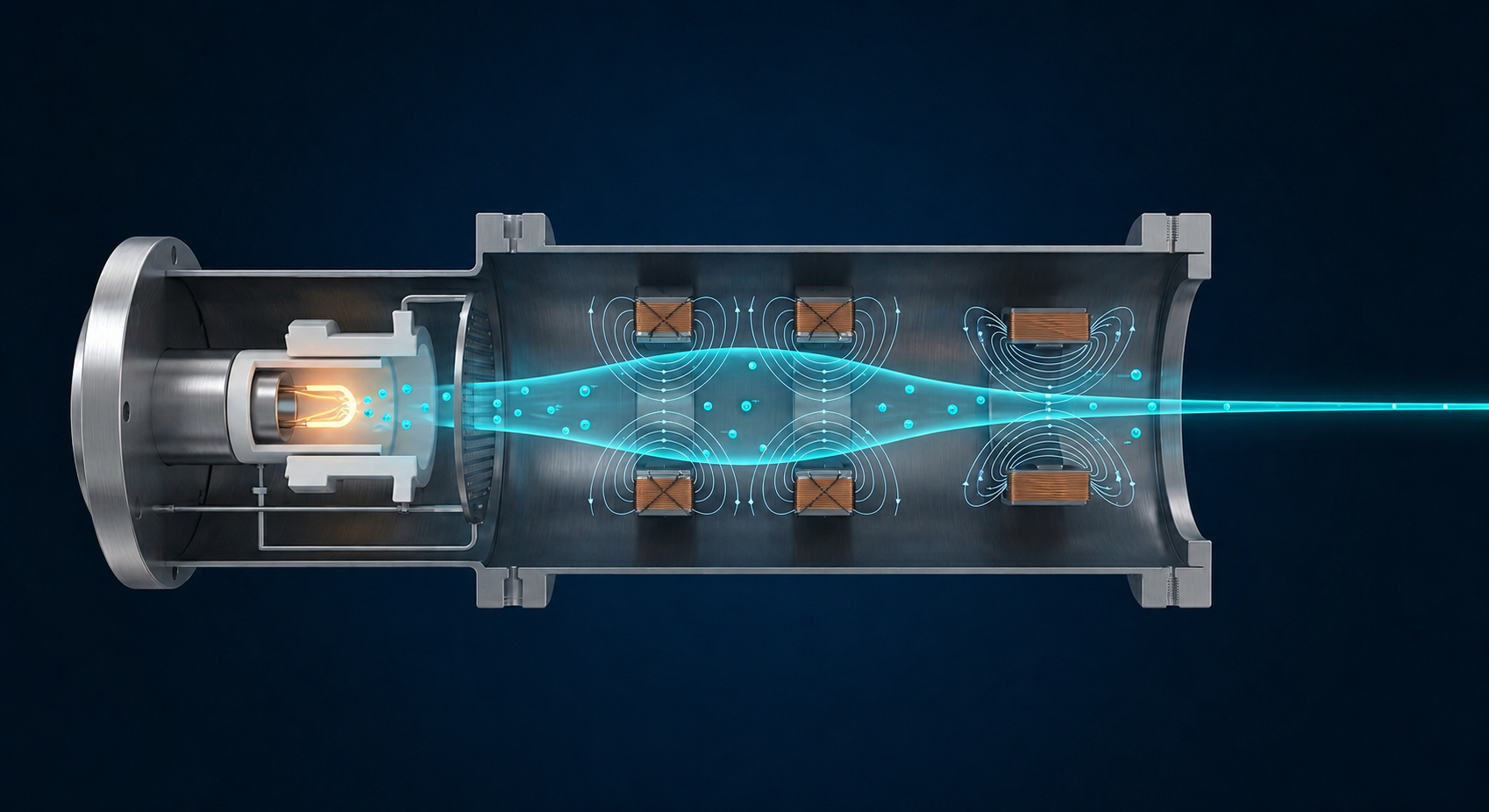

Operating Principle of Electron Beams
Electron beams are generated and controlled through the following processes:
-
Electron Emission
An electrical current is passed through a filament inside the electron gun, heating it and causing electrons to be released through thermionic emission.
-
Acceleration
A high voltage, typically ranging from several kilovolts to several hundred kilovolts, is applied to the emitted electrons, accelerating them to high speeds. The higher the acceleration voltage, the greater the kinetic energy of the electrons.
-
Focusing and Shaping
Electromagnetic lenses are used to focus the naturally diverging electron beam into a finely concentrated spot.
-
Deflection (Scanning)
Current is supplied to deflection coils to generate magnetic fields that control the trajectory of the electron beam, enabling high-speed scanning across the target area.
Applications of Electron Beams
Owing to their excellent focusing capability and high-energy characteristics, electron beams are used in a wide variety of applications ranging from nanoscale analysis to industrial processing.
Microfabrication and Manufacturing
-
Electron Beam Lithography
Ultra-fine pattern generation for semiconductors and photomasks. -
Electron Beam Welding
Deep-penetration precision welding utilizing high energy density.
Analysis and Observation
-
Scanning Electron Microscope (SEM)
Observation of surface topography and microstructures. -
Transmission Electron Microscope (TEM)
Atomic-scale structural and compositional analysis.
Material Modification and Sterilization
-
Resin Cross-Linking and Modification
Improves the mechanical strength and thermal resistance of materials. -
Sterilization of Medical Devices
Efficient sterilization using high-energy electrons.
Power Supplies Required for Electron Beam Systems
To ensure stable operation and maximize performance, electron beam systems rely on multiple power supply subsystems working together with exceptional precision.
1. High-Voltage Power Supply for Acceleration
This is the most critical power supply because it determines the energy of the electron beam.
- Voltage Range 5 kV to 300 kV
- Key Performance Indicator Voltage Stability (Ripple and Noise)
In high-resolution analytical instruments such as electron microscopes, even minor fluctuations in acceleration voltage can result in image instability and reduced resolution. Voltage stability on the order of 10⁻⁵ to 10⁻⁶ is often required.
2. Filament Power Supply
This power supply provides the heating necessary for electron emission.
- Stable delivery of low voltage (typically several volts) and high current (typically several amperes)
- Maintains a constant filament temperature
- High stability is required because even small fluctuations in filament current can lead to variations in beam current
- Since the filament power supply operates at the high-voltage potential of the electron gun, excellent insulation performance is required
- Filament temperature directly affects electron emission, and excessive heating can shorten cathode lifetime and degrade beam quality, making precise control essential
3. Electromagnetic Lens Power Supply (Focusing and Shaping)
This power supply drives the electromagnetic lenses responsible for focusing the electron beam.
- Highly stable current control
- Precise adjustment of focal position and spot size
- Direct impact on imaging resolution and processing accuracy
4. Deflection Power Supply (High-Speed Amplifier)
This drive power supply enables high-speed scanning of the electron beam.
- Fast response time
- High waveform accuracy and reproducibility
- Essential for precision scan control in electron microscopes and electron beam lithography systems
5. Beam Current Control Power Supply
This power supply controls the electron emission current from the electron gun.
- High-precision beam current control
- Stabilization of beam current and delivered energy
- Contributes to improved analytical accuracy and processing quality
6. Power Supply for Peripheral Equipment (Vacuum Pumps, etc.)
To ensure stable electron beam transmission, the interior of the system must be maintained under high-vacuum conditions.
Because electrons scatter and lose energy when they collide with gas molecules, stable power delivery to peripheral equipment such as vacuum pumps and vacuum gauges is essential.
Power Solutions Supporting High-Precision Electron Beam Control
The performance of an electron beam system depends heavily on acceleration voltage stability, beam current control accuracy, and high-speed deflection performance.
We provide highly stable, precision power supply solutions for a broad range of applications, including electron microscopes, electron beam processing equipment, electron beam lithography systems, and electron beam irradiation equipment.
Our solutions are designed to deliver the optimal combination of voltage range, stability, and response speed for each application, helping customers achieve reliable and high-performance electron beam operation.
