Ultra High Voltage Power Supply
Safe design featuring fully encapsulated high-voltage components
- Voltage range: 150 to 200 kV
- Power: 1.2 kW, 2 kW
Ultra-High Voltage Models (150 kV to 200 kV) Debut in a 19-inch Rack Format
The AUH series consists of high-performance high-voltage power supplies capable of outputting up to 200 kV within a standard 19-inch rack size. Featuring a fully molded design that eliminates exposed high-voltage parts, the series suppresses corona discharge more effectively than open-air models. This design removes the need for large insulation distances to prevent electric shock, enabling space-saving installation. With versatile remote control capabilities and comprehensive protection features, the AUH series ensures high reliability and usability.
FEATURES AND BENEFITS
- Ultra high voltage of 200kV and high power of 2kW.
- The AUH series achieves significant miniaturization by sealing the high-voltage output part through potting.
- Highly reliable design that is not easily affected by the operating environment.
APPLICATIONS
- Ion implantation equipment
- Electron beam system
- Capacitor charging
- Particle accelerator
Models
| Model | Output | ||
|---|---|---|---|
| Voltage [kV] | Current [mA] | Power [W] | |
| AUH-150P8 | 150 kV | 8 mA | 1200 W |
| AUH-150P13.3 | 13.3 mA | 2000 W | |
| AUH-160P7.5 | 160 kV | 7.5 mA | 1200 W |
| AUH-160P12.5 | 12.5 mA | 2000 W | |
| AUH-180P6.66 | 180 kV | 6.66 mA | 1200 W |
| AUH-180P11.1 | 11.1 mA | 2000 W | |
| AUH-200P6 | 200 kV | 6 mA | 1200 W |
| AUH-200P10 | 10 mA | 2000 W | |
| Model | Output | ||
|---|---|---|---|
| Voltage [kV] | Current [mA] | Power [W] | |
| AUH-150N8 | 150 kV | 8 mA | 1200 W |
| AUH-150N13.3 | 13.3 mA | 2000 W | |
| AUH-160N7.5 | 160 kV | 7.5 mA | 1200 W |
| AUH-160N12.5 | 12.5 mA | 2000 W | |
| AUH-180N6.66 | 180 kV | 6.66 mA | 1200 W |
| AUH-180N11.1 | 11.1 mA | 2000 W | |
| AUH-200N6 | 200 kV | 6 mA | 1200 W |
| AUH-200N10 | 10 mA | 2000 W | |
Specifications
- Input voltage
- 200 to 240 Vac, 50/60 Hz, Single-phase
200 to 240 Vac, 50/60 Hz, Three-phase (option) - Output voltage control
-
[Local] 10-turn potentiometer on the front panel
[Analog remote] External control voltage 0 to 10 Vdc or external 5kΩ potentiometer
[Digital remote] Additional CO-HV adapter - Output current control
-
[Local] 10-turn potentiometer on the front panel
[Analog remote] External control voltage 0 to 10 Vdc or external 5kΩ potentiometer
[Digital remote] Additional CO-HV adapter
Options
- -LF
-
Floating ground (Isolation voltage: 50 Vdc)
Ideal for measuring minute currents flowing into the load.
(Note: This option cannot be used to float the entire power supply at a high potential.)
FAQ: What is floating ground?
- -LLr *1
-
Low ripple
Reduces output ripple to 0.1% p-p.
- -LMs *2
-
Master-slave control
A maximum of four slave units can be controlled with one master unit.
- -LOc *2
-
Overcurrent protection with shutdown
Automatically cuts off output when an overcurrent is detected.
- -LW
-
Slow start
Ramps the output voltage to the maximum rating in approximately 10 seconds after the output is turned on.
- -L(200V3P) *1
-
Three-phase input
- -LLr option and -L(200V3P) option cannot be selected together. Only one of each can be selected.
- When simultaneously equipped with the -LMs option and the -LOc option, please contact us.
How to Order
When ordering, add Option No. in the following order by alphabet, and input voltage to Model No.
- Example:
- AUH-150PB-LFOcW(200V3P)
- AUH-200N10-LFMsW(200V3P)
Accessories
Digital remote control adapter
LAN / USB / RS-232C / RS-485 / GPIB Control
To remotely control this high-voltage power supply via LAN or USB, purchase both a digital converter (CO-HV) and an optical isolation adapter. The digital converter (CO-HV) converts the analog control signal of the high-voltage power supply into a digital optical signal. The optical isolation adapter converts interface signals such as LAN and USB to optical signals.
For details, check the CO / USB series for a digital converter (CO-HV) and optical isolation adapter.
- Optical isolation
- 16-bit (1/65535) high-resolution A / D .
- Computer and PLC controlled.
- Protecting from discharge and surge.
- Ideal for automation and labor-saving systems.
- Application software
-
PSS2en series: Remote control, Test workflow design, and Data logging
Click here for the PSS2en seriesPSS2en is the dedicated software that can actuate various power supplies, electronic loads, and digital controllers for power supplies manufactured by Matsusada Precision Inc. with a simple setup.
It is perfect for the aging test, the burn-in test, and the withstand voltage test for electronic parts, as well as for the endurance test, intermittent/continuous operation test, or various simulation tests for automobile electric components.
| Standard | CABLE TYPE5 |  |
 |
300 V/25 A | 2.5 meters |
|---|---|---|---|---|---|
| Sold separately -L(200V3P) option |
CABLE TYPE6 |  |
 |
600 V/25 A | 2.5 meters |

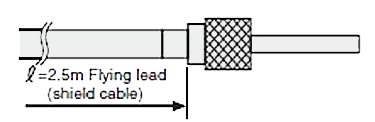

| Standard 150 kV models |
CN-150-MHVP |
|
2.5 meters |
|---|---|---|---|
| Standard 160 kV, 180 kV, 200 kV models |
CN-200-MHVP | 2.5 meters |
Dimensions
