Compact and Lightweight Benchtop High-Voltage Power Supply
- Max Voltage: 1 kV to 30 kV
- Max Current: 1 mA to 30 mA
- Max Power: 30 W
- Easy-to-use front panel controls
Compact 30 kV / 30 W output in a slim 70 mm (2.76-inch) wide chassis
The EQ series is a compact, versatile high-voltage power supply featuring integrated digital voltage and current meters.
Its lightweight design ensures excellent portability, making it easy to share between laboratories or test stations. It is an ideal choice for rapid prototyping and preliminary testing.
FEATURES AND BENEFITS
- High voltage/power of 30 kV/30 W
- Ultra-compact and easy operation
- Voltage and current digital meter as a standard
APPLICATIONS
- Insulation breakdown test
- For Biasing
- Academic and educational experiments
- Electrostatic Discharge (ESD) Testing
- Capacitor Charging
- Electron beam
- Ion beam
- Electronic component aging
- Inspection and evaluation of inverters and power devices
- Automatic Test Equipment (ATE)
- General high-voltage testing
Models
Functions
- OUTPUT ON indicator (LED)
- OUTPUT ON/OFF switch
Controls output ON/OFF in local mode. Functions as an emergency stop and reset in remote mode. - POWER ON/OFF switch
Main power switch (Overrides all other operations). - Fault indicator (LED)
Illuminates when Overcurrent or Overvoltage protection is activated. - Remote control indicator (LED)
Illuminates when the unit is in remote mode. - Output voltage meter
- Output current meter
- Output voltage adjustment potentiometer

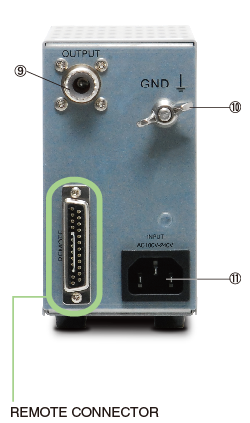

(10-turn, lockable) - High voltage output connector
- Ground (GND) Terminal (M6)
- AC inlet
Remote Connector
EXTERNAL OUTPUT ON/OFF
| Output | External relay | Open collector |
|---|---|---|
| ON | Short | VCE ≤ 0.4 V |
| OFF | Open | VCE ≥ 2 V |
Sink Current ≥ 10 mA
Output Control
| Output voltage | Vcon |
|---|---|
| 0 to Maximum | 0 to 10 V
Input impedance ≥ 10 kΩ |
Output Monitor
| Vout | 0 to 10 V (Monitor polarity equals output polarity.) |
|---|---|
| Iout | 0 to +10 V [Both output impedance 1 kΩ] |
Specifications
- Input voltage
- 100 to 240 Vac, 50/60 Hz, Single-phase
- Output voltage control
-
[Local] 10-turn potentiometer on front panel
[Analog remote] External control voltage 0 to 10 Vdc
Options
- -LCt
-
Overcurrent protection with shutdown
Cut off the high voltage output at approximately 105% of the rating
How to Order
When ordering, add Option No. to Model No.
- Example: EQ-10N3-LCt
| Included Accessory | CABLE TYPE1 |  |
 |
125 V/10 A | 2.5 meters Fixed length |
|---|---|---|---|---|---|
| Additional Accessory | CABLE TYPE3 | |
 |
250 V/10 A | 2.5 meters Fixed length |
| Included Accessory | CN-15MHVP |
|
2.5 meters (MAX 7 meters) |
|---|---|---|---|
| Included Accessory | CN-30MHVP |
|
2.5 meters (MAX 7 meters) |
Dimensions
Download
If you are unable to download a file
Please try the following solution.
- Please press Ctrl+F5 to clear the cache of your web browser and try again.
- Please restart your web browser and log in again to try again.
- Please change your web browser to another browser and try again.
- Restart the computer and try again.
- Please try again on a different computer.
-

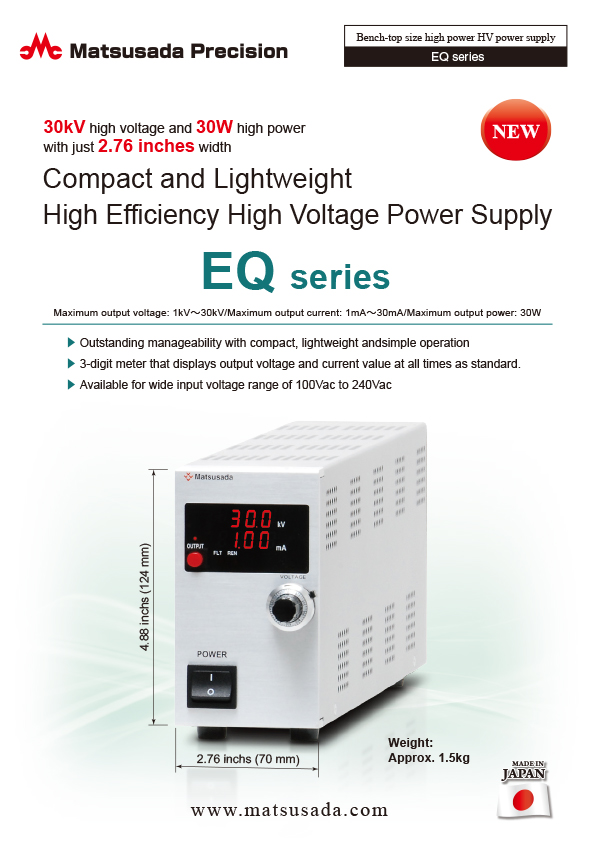

EQ series Datasheet
