PMT HIGH VOLTAGE POWER SUPPLY

  • Max Voltage: 5kV
  • Max Current: 2mA
  • Max Ripple: 15 mVp-p

Power Supply for Preamplifier are Integrated.

EP series is a high-performance high voltage power supply for photomultiplier tube (PMT) and Electron multiplier application. The ultra-compact size is just 8.35 inches/212 mm in width. Integrated High Voltage power supply and power supply for preamplifier ±15 V and ±5 V. The ultra-low ripple noise of as low as 15 mVp-p (High Voltage output part) is suitable for PMT and other applications. In addition, various digital controls are also possible by selecting the -LGob option.

FEATURES AND BENEFITS

  • Integrated power supplies for the preamplifier (±15 V, ±5 V output)
  • Low ripple 15 mVp-p (2 kV models High Voltage output part)
  • Ultra compact design of the best in its class
  • Large and noticeable 4-digit digital meter
  • Full protections

APPLICATIONS

Models

Positive polarity output
Model Maximum Output Ripple
Voltage Current
EP-2P2 0 to +2 kVdc 2 mA 15 mVp-p
EP-5P1 0 to +5 kVdc 1 mA 50 mVp-p
Negative polarity output
Model Maximum Output Ripple
Voltage Current
EP-2N2 0 to -2 kVdc 2 mA 15 mVp-p
EP-5N1 0 to -5 kVdc 1 mA 50 mVp-p

Specifications

For details, download the datasheet below.

Options

-LGob

Optical Interface Board
With optical communication, isolation control is performed. As complete isolation is performed by means of optical fiber, this enables advanced prevention of erroneous operations involved with transient phenomena caused by surges, inductive lightning, external noise, etc.

  • -LGob: Optical interface board + optical cable 2 meters
  • -LGob(Fc5): Optical interface board + optical cable 5 meters
  • -LGob(Fc10): Optical interface board + optical cable 10 meters
  • -LGob(Fc20): Optical interface board + optical cable 20 meters
  • -LGob(Fc40): Optical interface board + optical cable 40 meters

Select the optional optical interface board (-LGob) under the following conditions when using this high-voltage power supply.

  • Noisy environment including factories (Example: Motors or coils are used near power supplies and loads).
  • Using with high voltage floating (more than 250 V).
  • Installation distance of 2 meters or more between the high voltage power supply and a controller such as a computer, laptop, or Programmable Logic Controller (PLC).

Accessories

Adapters (sold separately)

To use the optical interface, you need to prepare an optical interface adapter separately. The following interface adapters are available according to the communication method of your controller port.

CO-E32

Adapter for LAN
A total of 32 units can be connected to one CO-E32.
LAN cable is not provided.

Adapter for LAN: CO-E32m | Benchtop High Voltage Power Supplies | Matsusada Precision
USB-OPT

Adapter for USB
A total of 32 units can be connected to one USB-OPT.
USB cable is not provided.

Adapter for USB: CO-U32m | Benchtop High Voltage Power Supplies | Matsusada Precision
CO-OPT2-9, CO-OPT2-25, CO-OPT4-25

Adapter for RS-232C (9 pin): CO-OPT2-9
Adapter for RS-232C (25 pin): CO-OPT2-25
Adapter for RS-485 (25 pin): CO-OPT4-25
Total 32 units can be connected.

Adapter for RS-232C, RS-485 | Benchtop High Voltage Power Supplies | Matsusada Precision
CO-G32

Adapter for GPIB
A total of 32 units can be connected to one CO-G32.
GPIB cable is not provided.

Adapter for GPIB: CO-G32m | Benchtop High Voltage Power Supplies | Matsusada Precision

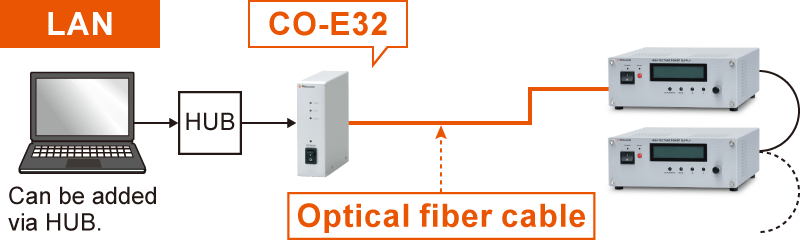

When you connect "Load," "EP series," and "Computer," if you prevent the influence on the computer by the noise that occurred with load, please choose the -LGob option. With that in mind, we recommend using it by combining our adapter (sold separately).

(A) Optical fiber cable

For details, refer to CO/USB series datasheet.

Input Cable
Standard CABLE TYPE1 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 125 V / 10 A 2.5 meters

Fixed length
Sold separately CABLE TYPE3
(for the input of 200 V)		 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 250 V / 10 A 2.5 meters

Fixed length
Sold separately CABLE TYPE4
(for the input of 200 V)		 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 250 V / 10 A 2.5 meters

Fixed length

Dimensions

For details, download the datasheet below.

Download
