LOW NOISE COMPACT
HIGH VOLTAGE POWER SUPPLY

Compact Benchtop High Voltage power supply

  • Output voltage: 1kV to 5kV
  • Output current: 0.6mA to 15mA
  • Output power: 15W
  • Reversible polarity
  • CE marking (For some models)

High Performance High Voltage Supply Thoroughly Pursued "Compact" and "Low Noise"

ES series is a benchtop high-voltage power supply with a compact size and high performance.
With its space-saving compactness and lightweight, it is suitable for operation in a lab with limited space.
Due to the low ripple and high stability, the Photomultiplier Tube (PMT) is one of the most suitable applications among many others.
User-friendly operation and full protection offer the best match power supply for benchtop experiments and learning materials.
With remote control functions, various interface options, and many options, it is suitable for building systems, too.

FEATURES AND BENEFITS

  • Low ripple 5 mVp-p minimum (up to 2 kV output model), high stability, and excellent temperature coefficient
  • Easy and Safe operation with the POWER switch and the output voltage setting dial along with various protection circuits
  • With 84 models from a wide variety of product lines available, find the solution that best meets your needs.

Applications

Models

Model Output Ripple [mVp-p] Safety standards
Voltage [kV] Current [mA] Power [W]
ES-1P3 0 to 1 kV 3 mA 3 W 5 mVp-p CE mark
ES-1P6 6 mA 6 W 5 mVp-p CE mark
ES-1P15 15 mA 15 W 10 mVp-p -
ES-1.5P2 0 to 1.5 kV 2 mA 3 W 5 mVp-p CE mark
ES-1.5P4 4 mA 6 W 5 mVp-p CE mark
ES-1.5P10 10 mA 15 W 10 mVp-p -
ES-2P1.5 0 to 2 kV 1.5 mA 3 W 5 mVp-p CE mark
ES-2P3 3 mA 6 W 5 mVp-p CE mark
ES-2P7.5 7.5 mA 15 W 10 mVp-p -
ES-3P1 0 to 3 kV 1 mA 3 W 10 mVp-p CE mark
ES-3P2 2 mA 6 W 10 mVp-p CE mark
ES-3P5 5 mA 15 W 10 mVp-p -
ES-5P0.6 0 to 5 kV 0.6 mA 3 W 20 mVp-p CE mark
ES-5P1.2 1.2 mA 6 W 20 mVp-p CE mark
Model Output Ripple [mVp-p] Safety standards
Voltage [kV] Current [mA] Power [W]
ES-1N3 0 to -1 kV 3 mA 3 W 5 mVp-p CE mark
ES-1N6 6 mA 6 W 5 mVp-p CE mark
ES-1N15 15 mA 15 W 10 mVp-p -
ES-1.5N2 0 to -1.5 kV 2 mA 3 W 5 mVp-p CE mark
ES-1.5N4 4 mA 6 W 5 mVp-p CE mark
ES-1.5N10 10 mA 15 W 10 mVp-p -
ES-2N1.5 0 to -2 kV 1.5 mA 3 W 5 mVp-p CE mark
ES-2N3 3 mA 6 W 5 mVp-p CE mark
ES-2N7.5 7.5 mA 15 W 10 mVp-p -
ES-3N1 0 to -3 kV 1 mA 3 W 10 mVp-p CE mark
ES-3N2 2 mA 6 W 10 mVp-p CE mark
ES-3N5 5 mA 15 W 10 mVp-p -
ES-5N0.6 0 to -5 kV 0.6 mA 3 W 20 mVp-p CE mark
ES-5N1.2 1.2 mA 6 W 20 mVp-p CE mark
Model Output Ripple [mVp-p] Safety standards
Voltage [kV] Current [mA] Power [W]
ES-1R3 0 to ±1 kV 3 mA 3 W 5 mVp-p CE mark
ES-1R6 6 mA 6 W 5 mVp-p CE mark
ES-1R15 15 mA 15 W 10 mVp-p -
ES-1.5R2 0 to ±1.5 kV 2 mA 3 W 5 mVp-p CE mark
ES-1.5R4 4 mA 6 W 5 mVp-p CE mark
ES-1.5R10 10 mA 15 W 10 mVp-p -
ES-2R1.5 0 to ±2 kV 1.5 mA 3 W 5 mVp-p CE mark
ES-2R3 3 mA 6 W 5 mVp-p CE mark
ES-2R7.5 7.5 mA 15 W 10 mVp-p -
ES-3R1 0 to ±3 kV 1 mA 3 W 10 mVp-p CE mark
ES-3R2 2 mA 6 W 10 mVp-p CE mark
ES-3R5 5 mA 15 W 10 mVp-p -
ES-5R0.6 0 to ±5 kV 0.6 mA 3 W 20 mVp-p CE mark
ES-5R1.2 1.2 mA 6 W 20 mVp-p CE mark

Specifications

For details, download the datasheet below.

Options

-LSh

SHV output connector
The output connector on the rear panel is used as the SHV receptacle. The output cable is attached to a plug in the SHV output connector.

-L(230V)

Input Voltage 200 Vac to 240 Vac ±10% 50 Hz/60 Hz 1 Ø

-L(3m), -L(5m), -L(7m)

Changing the shielded high-voltage output cable
Select the cable length from 3 meters, 5 meters, or 7 meters. (If you would like the cable to be different lengths, contact our sales representatives.)

How to order

When ordering, add Option No. to Model No. in alphabetical order, followed by the input voltage and the cable length.
<Example> ES-1P3-LSh(230V)(7m)

Accessory

AC Input Cable
Standard CABLE TYPE1 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 125 V / 10 A 2.5 meters

Fixed length
Standard
with -L(230V) option		 CABLE TYPE3 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 250 V / 10 A 2.5 meters

Fixed length
High-Voltage Output Cable
Standard CN-BNC-HVP CN-BNC-HVP
 2.5 meters
(Specified length
available)
Standard
with -LSh option		 CN-SHV-HVP CN-SHV-HVP
 2.5 meters
(Specified length
available)
Sold separately CN-BNC-HVPP CN-BNC-HVPP
 2.5 meters
(Specified length
available)
Sold separately CN-BNC-HVPSP CN-BNC-HVPP
 2.5 meters
(Specified length
available)
Sold separately
with -LSh option		 CN-SHV-HVPP CN-SHV-HVPP
 2.5 meters
(Specified length
available)

Digital remote control adapter

LAN / USB / RS-232C / RS-485 / GPIB Control

To remotely control this high-voltage power supply via LAN or USB, purchase both a digital converter (CO-HV) and an optical isolation adapter. The digital converter (CO-HV) converts the analog control signal of the high-voltage power supply into a digital optical signal. The optical isolation adapter converts interface signals such as LAN and USB to optical signals.

For details, check the CO / USB series for a digital converter (CO-HV) and optical isolation adapter.

  • Optical isolation
  • 16-bit (1/65535) high-resolution A/D.
  • Computer and PLC controlled.
  • Protecting from discharge and surge.
  • Ideal for automation and labor-saving systems.
Refer to the CO/USB series
CO/USB series | Digital controllers | Matsusada Precision

Application software for power supplies and electronic loads

PSS2en series
PSS2en is the dedicated software that can actuate various power supplies, electronic loads, and digital controllers for power supplies manufactured by Matsusada Precision Inc. with a simple setup.
It is perfect for the aging test, the burn-in test, and the withstand voltage test for electronic parts, and for the endurance test, intermittent/continuous operation test, or various simulation tests for electric components of automobiles.
For details, refer to the PSS2en page.

PSS2en | Application software for power supplies and electronic loads | Matsusada Precision

Dimensions

For details, download the datasheet below.

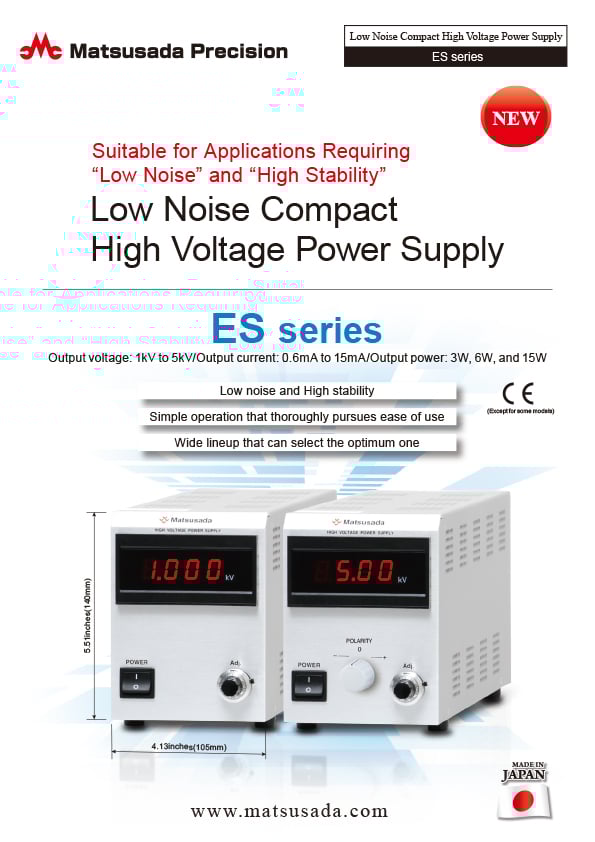

Download
