X-RAY POWER SUPPLY FOR X-RAY TUBE

  • Positive polarity high voltage output
  • Voltage range: 30 to 160kV
  • Current: 0.21 to 67mA
  • Power: 15 to 4000W

X-ray Power Supply For Cathode Ground Type X-ray Tube

The XKg series is a high-stability, low-ripple positive-polarity X-ray power supply with an integrated filament supply, delivering stable X-ray output. Interlock and other useful functions are incorporated to ensure safer and more convenient operation. Combination with optical communication adapter, control via LAN, USB, GPIB, RS-232C, and RS-485 is available.

FEATURES AND BENEFITS

  • High voltage power supplies designed for X-ray tubes used in X-Ray Fluorescence (XRF) analysis and X-ray Non-Destructive Testing (NDT)
  • Maximum 4 kW output power
  • For cathode ground type X-ray tube
  • Integrated filament supply
  • Low ripple and high stability
  • Digital interface
  • Constant voltage/current operation with comprehensive protection for safe operation.
  • OEM and customization options available.
  • Closed loop emission control

APPLICATIONS

COMPATIBLE X-RAY TUBE

XRF X-ray tube, Liquid-cooled X-ray tubes, Shielded X-ray tube, Molded X-ray tube, Glass X-ray tube, Beryllium window X-ray tube, Ceramics X-ray tube.
About X-ray tubes and high-voltage power supplies

Models

Model Output
Voltage Current Power
XKg-30P0.5 30 kV 0.5 mA 15 W
XKg-30P1 1 mA 30 W
XKg-30P2 2 mA 60 W
XKg-30P3.3 3.3 mA 100 W
XKg-40P0.5 40 kV 0.5 mA 20 W
XKg-40P0.75 0.75 mA 30 W
XKg-40P1.5 1.5 mA 60 W
XKg-40P2.5 2.5 mA 100 W
XKg-40P3.75 3.75 mA 150 W
XKg-50P0.6 50 kV 0.6 mA 30 W
XKg-50P1.2 1.2 mA 60 W
XKg-50P2 2 mA 100 W
XKg-50P3 3 mA 150 W
XKg-50P4 4 mA 200 W
XKg-60P0.5 60 kV 0.5 mA 30 W
XKg-60P1 1 mA 60 W
XKg-60P1.6 1.6 mA 100 W
XKg-60P2.5 2.5 mA 150 W
XKg-60P50 50 mA 3000 W
XKg-60P67 67 mA 4000 W
XKg-80P0.37 80 kV 0.37 mA 30 W
XKg-80P0.75 0.75 mA 60 W
XKg-80P1.25 1.25 mA 100 W
XKg-80P1.87 1.87 mA 150 W
XKg-80P40 40 mA 3200 W
XKg-80P50 50 mA 4000 W
XKg-100P0.3 100 kV 0.3 mA 30 W
XKg-100P0.6 0.6 mA 60 W
XKg-100P1 1 mA 100 W
XKg-100P1.5 1.5 mA 150 W
XKg-100P3 3 mA 300 W
XKg-120P0.25 120 kV 0.25 mA 30 W
XKg-120P0.5 0.5 mA 60 W
XKg-120P0.83 0.83 mA 100 W
XKg-120P1.25 1.25 mA 150 W
XKg-120P2.5 2.5 mA 300 W
XKg-140P0.21 140 kV 0.21 mA 30 W
XKg-140P0.42 0.42 mA 60 W
XKg-140P0.71 0.71 mA 100 W
XKg-140P1.07 1.07 mA 150 W
XKg-140P2.14 2.14 mA 300 W
XKg-160P0.62 160 kV 0.62 mA 100 W
XKg-160P0.93 0.93 mA 150 W
XKg-160P1.87 1.87 mA 300 W

Specifications

Input voltage
100 to 120 Vac, 50/60 Hz, Single-phase
200 to 240 Vac, 50/60 Hz, Single-phase (Option, some models)
200 to 220 Vac, 50/60 Hz, Three-phase
Output voltage control
[Local] 10-turn potentiometer on the front panel
[Analog remote] External control voltage 0 to 10 Vdc or external 5kΩ potentiometer
[Digital remote] Additional CO-HV adapter
Output current control
[Local] 10-turn potentiometer on the front panel
[Analog remote] External control voltage 0 to 10 Vdc or external 5kΩ potentiometer
[Digital remote] Additional CO-HV adapter

For details, download the datasheet below.

Options

-LB

Bias output
-300 V variable 2.5 mA

-LT1

Interlock remote reset, Output state auto-recovery prevention
(former: power failure protection) remote reset

-L(200V)

200 Vac to 240 Vac single-phase (only for up to 300 W models)

-L(200V1P)

200 Vac to 220 Vac single-phase (only for 3000 W model)

-L(5m)

Changing the output cable length to be 5 meters
(The high voltage output cable for 30kV to 60kV is 5 meters instead of 2.5 meters.)

How to Order

When ordering, add Option No. in the following order by alphabet and input voltage to Model No.
<Example> XKg-160P1.87-LBT1(200V) with CNXK-160-3P(5)

Accessories

AC INPUT CABLE

The XKg series (15 W to 300 W model) comes with one AC power cord.

Model Cable Type Power Input End Input Plug Rated Voltage Rated Maximum
Standard
15 W to 300 W model		 CABLE TYPE1 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 125 V/10 A 2.5 meters
Fixed length
Standard
15 W to 300 W model
-L(200V) option		 CABLE TYPE3 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 250 V/10 A 2.5 meters
Fixed length
Sold separately
15 W to 300 W model
-L(200V) option		 CABLE TYPE5 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 300 V/25 A 2.5 meters
Sold separately
3000 W to 4000 W model		 CABLE TYPE6 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 600 V/25 A 2.5 meters
HIGH VOLTAGE OUTPUT CONNECTOR and CABLE

The XKg series (30 kV to 120 kV model) comes with one 2.5m high voltage cable.

Standard
30 kV model		 CN-30-MHVP CN-30-MHVP 2.5 meters
(Specified length
available)
Standard
40 kV model		 CN-45-MHVP CN-45-MHVP 2.5 meters
(Specified length
available)
Standard
50 kV and 60 kV model		 CN-60-MHVP CN-45-MHVP 2.5 meters
(Specified length
available)
Standard
80 kV to 120 kV model		 CN-120AR-MHVP CN-120AR-MHVP 2.5 meters
(Specified length
available)

* For 5 meter length, suffix (5) to the model number. <Example> CN-120AR-MHVP(5)

Sold separately
40 kV and 160 kV model		 CNXK-160-3P(5),
CNXK-160-3P(10)		 CN-XK-160-3P cable length
(5): 5 meters
(10): 10 meters

For more details, refer to the CN series.

OPTICAL COMMUNICATION

Optical isolation adapters, utilize fiber optic cables for the digital communication, which enables extremely reliable communication even in noisy environments such as in factories and for long-distance control. By using optical fibers, they are electrically isolated, so safe operation is possible even in power supply configurations with potential differences.

CO/USB series | Digital control adapter | Matsusada Precision
Application Control of high voltage power supplies via LAN, USB, RS-232C, RS-485, or GPIB.
Connection Using fiber optical cables, the adapter for each interface is connected to CO-HV units. With the dedicated control cable, the CO-HV units are connected to a high-voltage power supply AU series.
Number of unit Up to 32 pairs with CO-HV unit and high voltage power supply are available. With GPIB, by setting the address, you can connect a maximum of 448 high-voltage power supply units (14 addresses × 32 units).
Features The communication system is well suited for such situations where there is a distance between the computer and the high voltage power supply or noisy environments. Also, it is especially ideal for use in combination with DC power supplies. The standard cable length is two meters, and it can be optionally extended up to 40 meters.

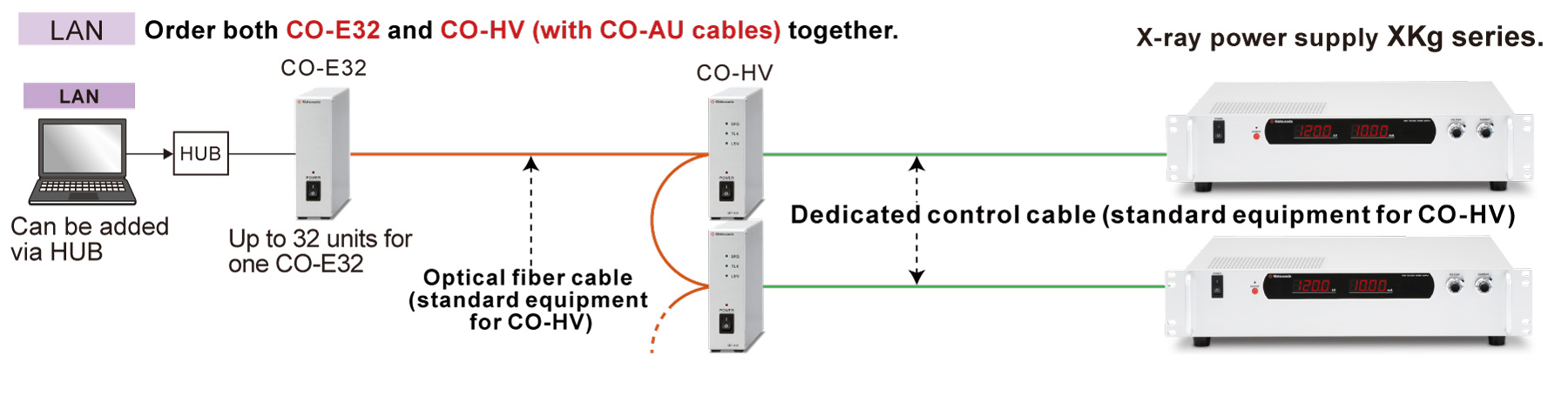

Example of communication

Example of communication | Matsusada Precision

For details, download the datasheet below.
