HIGH POWER DC POWER SUPPLY WITH AUTORANGING OUTPUT

Capable of 3 times the previous voltage and current output within the rated output power

  • Voltage range: 80V to 1500V
  • Current: 30A to 510A
  • Power: 5kW to 15kW
  • Variable internal resistance function

Three times and wider voltage and current within the rated output power 15 kW

PRT series is a DC power supply equipped with a turbo function, enabling an autoranging of voltage/current output three times higher than previous DC power supplies with the same rated output power level. The PRT series allows flexible voltage and current output within its rated power, and you do not have to search for a power supply with a wider rated voltage and current than necessary. Thus, a single PRT unit can be used for much wider user applications.

In addition to the autoranging of output, the PRT series enhanced its general performance of the power supply to achieve overwhelming quality, providing a power factor correction circuit with 0.99 power factor, a color display panel having excellent visibility, and adoption of the speedy and excellent precision rotary encoder.

Refer to the PRTM series for a high-power DC power supply with the PRT series in one rack. PRTM series

FEATURES

  • 1. MORE SPACE SAVING FOR BETTER WORKPLACE

    Introducing the extremely compact PRTM makes more effective use of your workspace. We have developed the smaller regeneration DC power supply for space saving aimed at installing other measuring tools, which makes effective use of the space at the workplace.

    More Space Saving for Better Workplace | PRT series | DC power supply Rackmount | Matsusada Precision
  • 2. HOW TO COMPACT
    More Space Saving for Better Workplace | PRT series | DC power supply Rackmount | Matsusada Precision

    State-of-the-art semiconductor
    In order to minimize the heat generation itself inside the power supply, we adopted the latest device including semiconductor elements of high efficiency via thorough examination. This enables the product to provide a sufficient cooling function to maximize high performance.

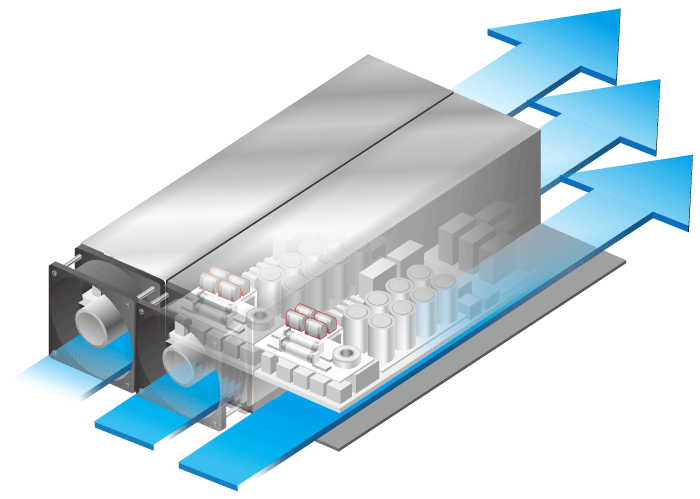

    Air-through circuit block technology
    With the improvement of the air-through circuit block, the product has been made smaller, and we also have put more focus on the improvement of block arrangement contributing to excellent space efficiency by extremely reducing the dead space. Consequently, we achieved the significant development of high-density mounting technology. While extra spaces inside the device had been required to release the heat so far, we successfully made the product even smaller to ensure the total amount of height of a mere 133 mm.

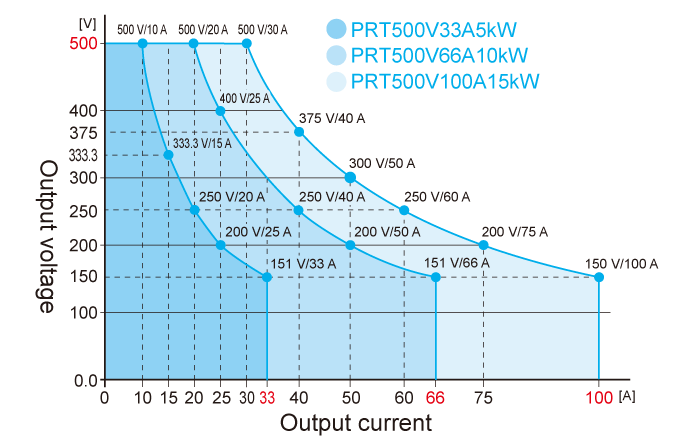

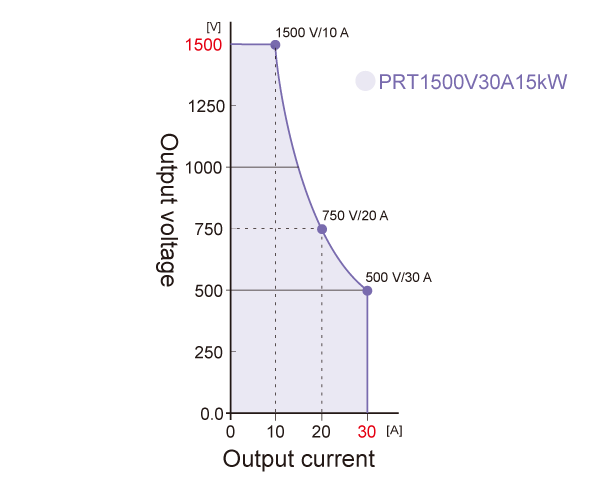

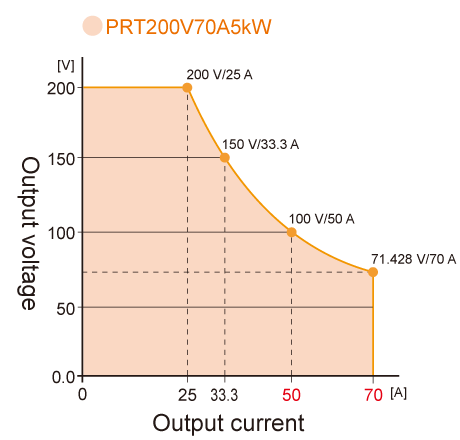

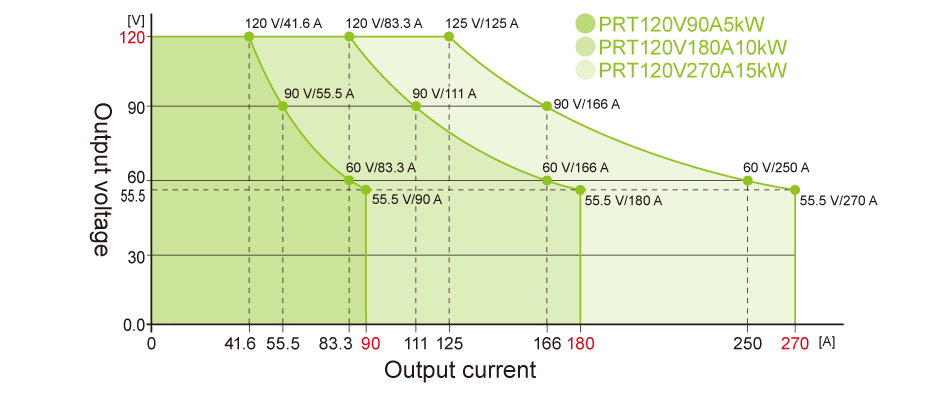

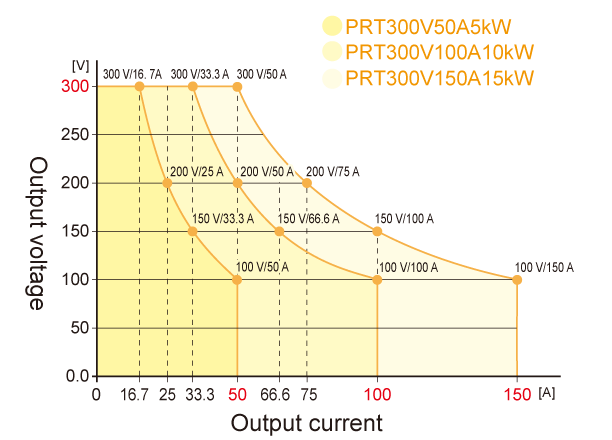

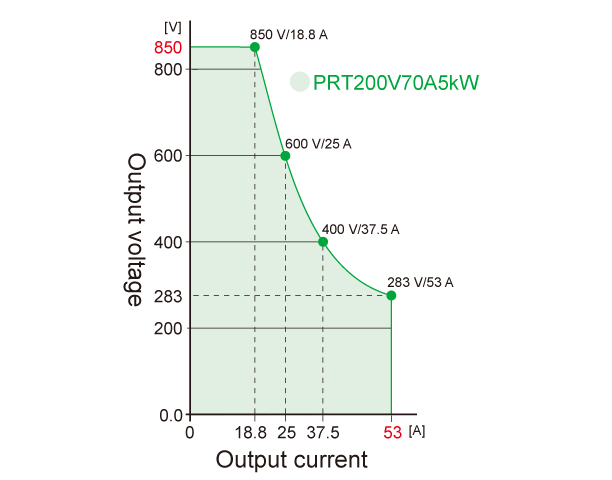

  • 3. OUTPUT RANGE GRAPHS

    With the turbo function, an autoranging of voltage and current output compared to conventional DC power supplies.

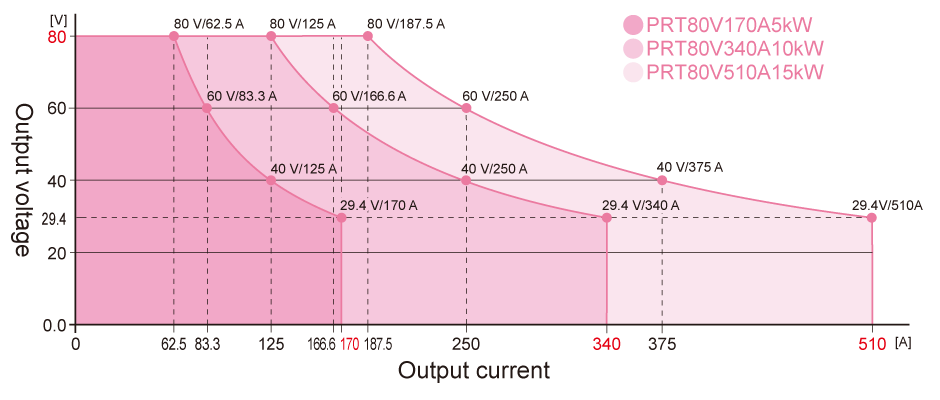

    Output Range Graphs 80v| PRT series | Rack Mount DC Power Supplies | Matsusada Precision
    Output Range Graphs v| PRT series | Rack Mount DC Power Supplies | Matsusada Precision
    Output Range Graphs v| PRT series | Rack Mount DC Power Supplies | Matsusada Precision
    Output Range Graphs v| PRT series | Rack Mount DC Power Supplies | Matsusada Precision
    Output Range Graphs v| PRT series | Rack Mount DC Power Supplies | Matsusada Precision
    Output Range Graphs v| PRT series | Rack Mount DC Power Supplies | Matsusada Precision
  • Equipped with a turbo function to achieve an autoranging of output.
  • Expandable output current up to 150kW with parallel connection
  • CV/CC priority setting function enables suppression of overshoot by setting the voltage/current increase sequence with the output ON
  • Variable internal resistance function enables simple simulation of rechargeable batteries
  • The sink current suppression reduces the reverse current flowing from the load to the unit in order to prevent a voltage drop on the load as the output is OFF or the set voltage is lowered.
  • Low-noise switching method ideal for research & development

APPLICATIONS

  •  Electric Vehicles (EVs), and Drones

    Test and Evaluation of electronic components such as inverters, DC/DC converters, on-board chargers (OBC), DC motors, compressors, power relays, heaters, pumps, fuses, harnesses used in Battery Electric Vehicles (BEVs), Plug-in Hybrid Electric Vehicles (PHEVs), Hybrid Electric Vehicles (HEVs), and drones

  •  Batteries

    Charge and discharge cycle tests of high-voltage, high-power battery packs for lithium-ion batteries (LIB) such as Lithium iron phosphate (LFP) battery packs

  •  Hydrogen and Ammonia production, Fuel cells

    Development of hydrogen and ammonia production equipment (electrolysis, electrolytic synthesis, catalyst, and electrochemistry tests) and fuel cell technologies such as solid oxide fuel cell (SOFC) and solid oxide electrolysis cell (SOEC).

  •  Power devices

    Semiconductor Processing and burn-in of power semiconductors such as SiC, GaN, IGBT, MOSFETs, and laser diodes

  •  Photovoltaic cells

    Testing and evaluation of solar inverters (PV inverters), Hybrid inverters, junction boxes

  •  Scientific Research, etc

    In addition, the PRT/PRTM series is designed to meet a variety of DC power supply applications.

Models

Model Maximum output Ripple (rms)
Voltage Current Power Voltage Current
PRT80V170A5kW 80 V 170 A 5 kW 25 mV 120 mA
PRT80V340A10kW 340 A 10 kW 180 mA
PRT80V510A15kW 510 A 15 kW 240 mA
PRT120V90A5kW Coming soon 120 V 90 A 5 kW 40 mV 180 mA
PRT120V180A10kW Coming soon 180 A 10 kW 200 mA
PRT120V270A15kW Coming soon 270 A 15 kW 240 mA
PRT200V70A5kW Coming soon 200 V 70 A 5 kW 80 mA
PRT300V50A5kW 300 V 50 A 5 kW 40 mA
PRT300V100A10kW 100 A 10 kW 60 mA
PRT300V150A15kW 150 A 15 kW 90 mA
PRT500V33A5kW 500 V 33 A 5 kW 70 mV 16 mA
PRT500V66A10kW 66 A 10 kW 32 mA
PRT500V100A15kW 100 A 15 kW 48 mA
PRT850V53A15kW 850 V 53 A 15 kW 200 mV 48 mA
PRT1500V30A15kW 1500 V 30 A 15 kW 350 mV 26 mA

Functions

Expandable to 150 kW with Master/Slave Control

Easy expansion of your choice up to 150kW
Within the same series, you can increase the capacity using the shared cable and parallel control cable (LAN cable).
Even if you want to change testing items or targets, you have only to add the necessary amount.

("Master/Slave Control Cable", a Matsusada Precision original set of pre-processed share cable and parallel control cable is available.)
<Example> (1) 10 units in parallel of PRT80V510A in 15 kW → 80 V/5100 A/150 kW (2) 10 units in parallel of PRT1500V30A in 15 kW → 1500 V/300 A/150 kW

  • Expandable to a total of 10 Master and Slave units.
  • In the Master/Slave connection, the values of output voltage/current for the whole unit are shown on the output voltage/current meter of the Master. (However, each Slave unit does not display the individual output values on the output voltage/current meter.)

Note: Make sure to use the same length of all the cables to connect each load and the main unit.

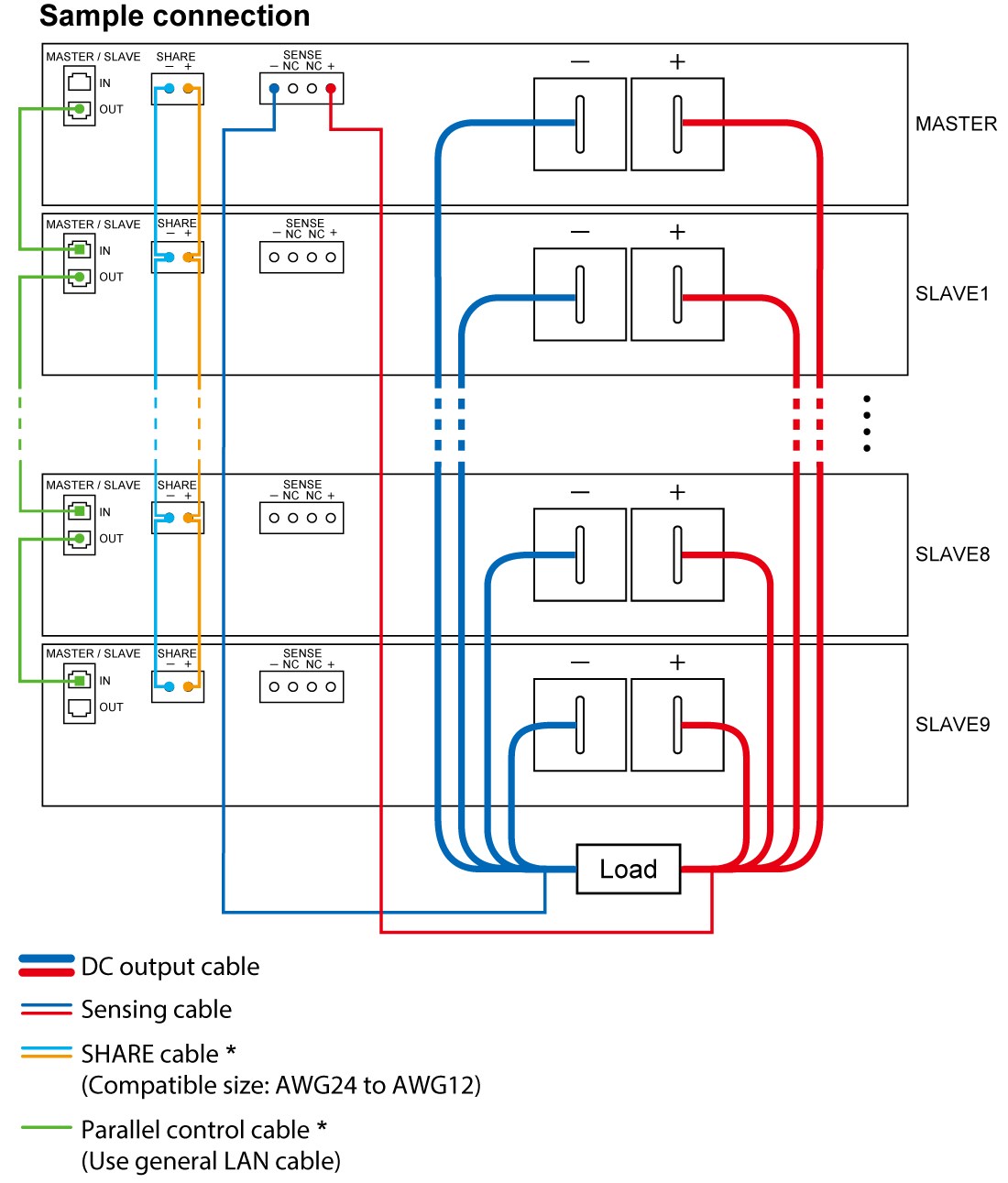

Connection Diagram with MASTER/SLAVE | PRT series | Rack Mount DC Power Supplies | Matsusada Precision

Master/Slave control cable for PRT series is available as an optional accessory.

Application Operations with Front USB Port

Application Operations with Front USB Port | PRT series | Rack Mount DC Power Supplies | Matsusada Precision
No data logger or no always connected computer required
Shortening time of wiring and preparation, Suited for cycle tests in areas where computers are prohibited.
Features:Built-in data logging
Data logging captures the output data at the fastest interval of 0.1 seconds by inserting the USB memory stick. Also, with the dedicated software MLV, the log data is available in CSV format to output.
Use in places where you cannot always connect a computer
With the dedicated software MSS, you can save the sequence program data to the USB memory and load it from the front USB port. Thus, the program operation is available by the power supply only.

Functions with Front USB Port and Standard Attached Software

(1) Sequence program function: MSS (Matsusada Sequence Software)

Easy to use for beginners
MSS allows you to create sequence program data using the main unit or a computer with the dedicated software (MSS).
The software makes it easier and more convenient to create sequence program data. The created sequence program data can be saved to USB memory, and up to 1,024 steps of the sequence program can be loaded.
Sequence program function | PRT series | Rack Mount DC Power Supplies | Matsusada Precision

(2) Operation log display: MLV (Matsusada Log Viewer) Operation log

Instant graphing of operation logs
Operation log display function: MLV, the dedicated software can read and graph the operation log.
Logging to USB memory is available not only during the sequence operation as described in (1) above but also during the local/external control.
Easy editing of operation logs
MLV can select items you need and save them in CSV format, so you can also edit the data in spreadsheet software with no problem.

[Display items]

  • Elapsed time
  • CC/CV mode
  • Output value (Voltage, Current, and Power)
  • Status
  • Other information on errors, etc.
Operation log display | PRT series | Rack Mount DC Power Supplies | Matsusada Precision
Operating log image

Large Color Touch Panel

PRT/PRTM series comes with a large color touch panel, realizing its operability and visibility improvement.

Large Color Touch Panel | PRT series | Rack Mount DC Power Supplies | Matsusada Precision
  • Easy setting of output voltage, current, power, and other parameters !
  • Simple setting to complex sequence program !
  • New feature with more selectable error detections !
  • Equally available in a conventional configuration with the setting dial

Sequence Programming Function

The sequence programming function allows the programming of parameters such as step time, step amplitude, ramp, CV/CC mode, sequence program end-setting, step jump, and jump count by simply operating on the front panel. This option enables you to generate customized original waveforms, and you can use a great variety of applications including testing evaluation, and verification.

  • Step setting time 0.0 to 3,600 s
  • For one program, a maximum of 1,024 steps can be configured and saved.
  • CV/CC mode can be set for each program.
  • Repetition frequency: infinity, or 1 to 999 Program as Image

Program as image

Sequence Programming Function | PRT series | Rack Mount DC Power Supplies | Matsusada Precision

CV/CC Priority Setting Function

CV (constant voltage) priority/CC (constant current) priority mode can be selected and set. As is the case with diodes, a load tends to suddenly change the resistance at certain points. When the device is started in CV mode, the current will be momentarily overshot. In the PRT series, select the CC priority mode to suppress the occurrence of overshoot. The function can reduce the risk of damaging expensive loads such as high-power laser diodes.

* In the CC priority mode, do not by releasing the voltage setting and setting the CC value to the lowest within the range where the CC state can be maintained.

CV/CC Priority Setting Function | PRT series | Rack Mount DC Power Supplies | Matsusada Precision

Internal Resistance Variation Function (in CV mode)

Set the internal resistance to any value to generate a voltage drop when the load current flows.
Batteries, photovoltaic cells, and fuel cells can be simulated.
(The setting range of the internal resistance value is from 0 Ω to the rated voltage/rated current.)

CV mode | PRT series | Rack Mount DC Power Supplies | Matsusada Precision

Preset Memory Function

With the preset memory function, the preset values are automatically saved when the power turns off.
Furthermore, up to three different voltage, current, and power settings are also memorized respectively.

Remote Control Software (Additional Products): DigiCon series

DigiCon is an application software that remotely controls Matsusada Precision's DC power supplies connected via LAN.
The software can control multiple power supplies simultaneously or individually.

  • Power control for PRKT, PRT/PRTM, PBR/PBRM series
  • Full remote control available
  • Consists of "configuration software" and "operation software
  • Linkage to digital multimeters, data loggers, and thermostatic chambers is possible.
  • Easy operation with Graphical User Interface (GUI)
  • Automatic Test Equipment (ATE)s can be built without programming knowledge.
  • Real-time logging, graphing, and data storage

Link with digital multimeters, data loggers, and thermostatic chambers is possible.

Program transitions can be made in response to external conditions by linking with measuring instruments such as digital multimeters and data loggers, as well as thermostatic chambers.
This advanced function allows the program to transition to the next step when the end condition of the instrument is met without waiting for a set time, or to safely terminate the program if a problem occurs during operation.

Link with digital multimeters, data loggers, and thermostatic chambers is possible. | PRT series | Bidirectional (Regenerative) DC Power supply | Matsusada Precision

Easy operation enables speedy construction of Automatic Test Equipment (ATE)

Graphical user interface, including graphical display of set values, allows easy operation.
Automatic Test Equipment (ATE) and inspection systems can be built without programming knowledge.
It can be used in many fields and applications, such as long-term reliability testing of electronic equipment and devices in the automotive, home appliance, and medical fields.

 | PRT series | Bidirectional (Regenerative) DC Power supply | Matsusada Precision

Sink current prevention function

The function is suitable for supplying power to loads with capacities like batteries and capacitors. It reduces the reverse current flowing from the load to the unit in order to prevent a voltage drop on the load as the output is OFF or the set voltage is lowered.

Sink current prevention function | PRT series | Rack Mount DC Power Supplies | Matsusada Precision

Note: Reverse current cannot be controlled and stabilized. In order to protect the power supply unit, connect a dummy resistor or reverse current prevention diode if the load of the reverse voltage is equal to or higher than the rated voltage (inductive loads, regenerative motors, etc.).

Two-mode Lock Function

The locking is selectable from two setting modes: One is "Full LOCK" to lock all front panel operations, and the other is "Normal LOCK" to lock all operations except the ON/OFF switch.
The function is so user-friendly that the "Full LOCK" mode is provided to ensure the prevention of erroneous operation, and the "Normal LOCK" function facilitates the emergency stop while preventing erroneous operation. Emergency stop operation using the POWER ON/OFF switch is possible in either mode.

Two-mode Lock Function | PRT series | Rack Mount DC Power Supplies | Matsusada Precision

Password Function New

In this function, to cancel the two-mode lock function, input a 4-digit PIN code. (Enable/Disable is selectable.)

Password Function | PRT series | Rack Mount DC Power Supplies | Matsusada Precision

Secure Analog Remote Control

The external analog remote control of voltage/current/power is isolated from the output of the power supply as standard.
When controlling/monitoring multiple power supplies, you can use the product more securely as the external analog remote control has a chassis (ground) potential.

External Analog Control

  • External output ON/OFF
  • Remote sensing
  • Remote/Local mode setting
  • Status output
  • Output monitor
  • Output control
    (Voltage, Current, Power, Overvoltage protection, Overcurrent protection, Overpower protection)

Residual Voltage Detection LED

Use for checking residual voltage
The LED on the rear panel blinks when there is voltage remaining on the DC output terminal in output or at output off. it is useful for reference to check if the voltage remains. Be sure to check the voltage before the operation of the unit.
Residual voltage detection LED | PRT series | Rack Mount DC Power Supplies | Matsusada Precision

Constant Power Control Function (CP mode)

CP mode | PRT series | Rack Mount DC Power Supplies | Matsusada Precision

In addition to constant voltage control (CV mode) and constant current control (CC mode), a constant power control (CP mode) is provided.

With CP mode, a constant power supply is provided depending on loads, such as resistors (heaters) whose resistance changes with temperature. It is available without monitoring voltage/current or attaching external control devices (temperature regulators).

Specifications

For details, download the datasheet below.

Options

-LCa *

CAN interface port
Using CAN communications, output controlling and operation status monitoring of these devices can be performed.

-LGob *

Optical interface port

  • -LGob: Optical interface + optical cable 2 meters
  • -LGob(Fc5): Optical interface + optical cable 5 meters
  • -LGob(Fc10): Optical interface + optical cable 10 meters
  • -LGob(Fc20): Optical interface + optical cable 20 meters
  • -LGob(Fc40): Optical interface + optical cable 40 meters

The unit is remotely controlled by isolating with optical communication. As complete isolation is provided by means of optical fiber, this enables advanced prevention of erroneous operation involved with transient phenomenon caused by surges, inductive lightning, external noise, etc.

The optical communication adapter at the control side should be purchased separately.
-LRs *

RS-232C/RS-485 interface port
Using RS-232C/RS-485 communications, output controlling and operation status monitoring of the devices can be provided.

-L(400V)

Rated input for three-phase 380 Vac to 440 Vac 3 x 28 A (@400 V)
As for 15kW models, the rated voltage of the power grid is 380 to 440 Vac, 3x28 A (@400 V), three-phase, 50/60 Hz.
(The option is available only for models with 15 kW output.)

* Selecting each individual option simultaneously in -LCa, -LGob, and -LRs is not allowed.

How to Order

When ordering, add Option No. to Model No. in alphabetical order followed by the input voltage.
Example: PRT80V510A15kW-LGob (Fc10), PRT850V53A15kW-LCa(400V)

Accessories

AC input cable
Sold separately CABLE TYPE14 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 600 V / 58 A 10 meters
Sold separately
[200 Vac to 240 Vac single-phase inut]
CABLE TYPE15 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 600 V / 58 A 10 meters
Sold separately
[380 Vac to 440 Vac three-phase inut]
CABLE TYPE16 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 600 V / 58 A 10 meters
Sold separately
[200 Vac to 240 Vac single phase]
CABLE TYPE17 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 250 V / 33 A 10 meters

In accordance with the local electrical code, there might be a possibility that a breaker is required between the main unit and the power supply system. If the PRT series will be used in Europe, be sure to contact our sales representatives.

Master/Slave control cable

Model Name: PRT-MS  cable
The cable is a combination of shared cable with terminals (figure at right) and parallel control cable. The length of each cable from the terminal to the terminal is approximately 1.5 meters. Therefore, when connecting two PRTs, the length is about 1.5 meters, and when connecting three PRKTs, the length is about 3 meters.
When placing an order, please put a number from 2 to 10 in.
If two units of the PRT series are to be connected as master/slave, please enter 2, and if ten PRT are to be connected at master/slave control, please enter 10.

Model example
<Example> PRT-MS2cable

<Example> The cable for connecting 3 PRT
The cable for connecting 3 PRT | PRT series | Rack Mount DC Power Supplies | Matsusada Precision

Remote control software

Model Name: DigiCon-PRT
DigiCon is an application software that remotely controls Matsusada Precision's DC power supplies connected via LAN.
The software can control multiple power supplies simultaneously or individually.
For details, Refer to "Remote Control Software".

Dimensions

For details, download the datasheet below.

Download

If you are unable to download a file

Please try the following solution.

  1. Please press Ctrl+F5 to clear the cache of your web browser and try again.
  2. Please restart your web browser and log in again to try again.
  3. Please change your web browser to another browser and try again.
  4. Restart the computer and try again.
  5. Please try again on a different computer.

The account registration is necessary for downloading

In this website, we provide only the latest version of information including instruction manuals as of our products. Therefore, the newest versions of manuals on the website might be not same as the ones of products you purchased in the past.

Please click here if you are not registered yet to our site.

Membership Registration (Free)

Please click here if you are already registered to our site.

Log in

DC Power Supplies

Search for related to DC Power Supplies
