HIGHLY-FUNCTIONAL SMALL DC CHARGE-DISCHARGE POWER SUPPLY
Charge-discharge cycle testing of various rechargeable batteries from single cells to battery packs is possible with this single unit.
- Voltage: 5V to 35V
- Current: 0.5A to 10A
- Power: 4W to 108W
- With battery test software
Optimum for charge-discharge test of various rechargeable batteries
The CD series is an ultra-small design DC charge-discharge power supply that can be easily installed on a test bench. When a battery is connected to the CD series, it safely performs charge and discharge cycle tests while monitoring the battery's voltage, current, and temperature.
With a compact width of 1.38" and 3.31", it can handle up to 108 W charge-discharge. The attached software is very convenient when you conduct multi-channel charge-discharge tests.
As the natural discharge during downtime after charging can be minimized by the sink current prevention function, this product is optimal for battery tests.
FEATURES AND BENEFITS
- Designed for various charge/discharge testing of batteries
- Attached test software supports various charge/discharge tests
- Built-in USB interface is standard
- Two models support 0V load voltage input
- Battery temperature measurement and data acquisition capabilities
- High resolution D/A and A/D converter
APPLICATIONS
Charge-discharge cycle test for Battery
- Battery charge/discharge testing
- Battery cell
- Battery module
- Battery pack
- Lithium-ion battery (LiB)
- 18650, 21700, 4680 battery
- Lithium iron phosphate battery (LiFePO4, LFP battery)
- Solar battery storage
- Lithium polymer battery (LiPo battery)
- Cylindrical Battery
- Prismatic battery
- Pouch battery (Laminated battery)
- Nickel-metal hydride battery (Ni-MH)
- Lead-acid battery
- Solid-state battery
- Battery energy storage system (BESS)
Models
| Model | Maximum Output Voltage [V] | Input Voltage [V] | Maximum I/O Current [A] |
Maximum I/O Power [W] |
AC input | ||
|---|---|---|---|---|---|---|---|
| 120 Vac ±10% 50 Hz/60 Hz 1-phase [A] |
200 Vac * ±10% 50 Hz/60 Hz 1-phase [A] |
230 Vac * ±10% 50 Hz/60 Hz 1-phase [A] |
|||||
| Input Current [A] (typical) | |||||||
| CD5-5-LLzThUs1 NEW | 5 V | 0 to 5 V | 5 A | 25 W | 1 A | 0.5 A | 0.35 A |
| CD5-5-LThUs1 | 1.5 to 5 V | 5 A | 25 W | 1 A | 0.5 A | 0.35 A | |
| CD5-10-LLzThUs1 NEW | 0 to 5 V | 10 A | 50 W | 2 A | 1 A | 0.7 A | |
| CD5-10-LThUs1 | 1.5 to 5 V | 10 A | 50 W | 2 A | 1 A | 0.7 A | |
| CD8-0.5-LLzThUs1 | 8 V | 0 to 8 V | 0.5 A | 4 W | 1 A | 0.5 A | 0.35 A |
| CD8-1-LLzThUs1 | 1 A | 8 W | 1 A | 0.5 A | 0.35 A | ||
| CD8-0.5-LThUs1 | 1.5 to 8 V | 0.5 A | 4 W | 1 A | 0.5 A | 0.35 A | |
| CD8-1-LThUs1 | 1 A | 8 W | 1 A | 0.5 A | 0.35 A | ||
| CD8-2-LThUs1 | 2 A | 16 W | 1 A | 0.5 A | 0.35 A | ||
| CD8-3-LThUs1 | 3 A | 24 W | 1 A | 0.5 A | 0.35 A | ||
| CD18-0.5-LThUs1 | 18 V | 1.5 to 18 A | 0.5 A | 9 W | 1 A | 0.5 A | 0.35 A |
| CD18-1-LThUs1 | 1 A | 18 W | 1 A | 0.5 A | 0.35 A | ||
| CD18-2-LThUs1 | 2 A | 36 W | 1 A | 0.5 A | 0.35 A | ||
| CD18-4-LThUs1 | 4 A | 72 W | 2 A | 1 A | 0.7 A | ||
| CD18-6-LThUs1 | 6 A | 108 W | 2.5 A | 1.3 A | 0.93 A | ||
| CD35-3-LThUs1 | 35 V | 1.5 to 35 V | 3 A | 105 W | 2.5 A | 1.3 A | 0.93 A |
* Option available soon
- Discontinued Products
-
Sales of the following models ended on April 2024. We continue to support the products.
For K-type thermocouple Model Maximum Output Voltage [V] Input Voltage [V] Maximum
I/O Current [A]Maximum
I/O Power [W]AC input 120 Vac
±10% 50 Hz/60 Hz
1-phase [A]200 Vac ±10%
50 Hz/60 Hz
1-phase [A]230 Vac ±10%
50 Hz/60 Hz
1-phase [A]Input Current [A] (typical) CD5-5-LUs1 5 V 1.5 to 5 V 5 A 25 W 1 A 0.5 A 0.35 A CD5-10-LUs1 10 A 50 W 2 A 1 A 0.7 A CD8-0.5-LLzUs1 8 V 0 to 8 V 0.5 A 4 W 1 A 0.5 A 0.35 A CD8-1-LLzUs1 1 A 8 W 1 A 0.5 A 0.35 A CD8-0.5-LUs1 1.5 to 8 0.5 A 4 W 1 A 0.5 A 0.35 A CD8-1-LUs1 1 A 8 W 1 A 0.5 A 0.35 A CD8-2-LUs1 2 A 16 W 1 A 0.5 A 0.35 A CD8-3-LUs1 3 A 24 W 1 A 0.5 A 0.35 A CD18-0.5-LUs1 18 V 1.5 to 18 V 0.5 A 9 W 1 A 0.5 A 0.35 A CD18-1-LUs1 1 A 18 W 1 A 0.5 A 0.35 A CD18-2-LUs1 2 A 36 W 1 A 0.5 A 0.35 A CD18-4-LUs1 4 A 72 W 2 A 1 A 0.7 A CD18-6-LUs1 6 A 108 W 2.5 A 1.3 A 0.93 A CD35-3-LUs1 35 V 1.5 to 35 V 3 A 105 W 2.5 A 1.3 A 0.93 A
Functions
Three Charge Modes
Constant Current/Constant Voltage (CC/CV) charge
By setting both the current value and voltage value, the output exceeding the value you set can be disabled.
Constant Current (CC) charge
The charge is carried out at the current value you set. Even if the terminal voltage changes during charge, a constant current can be passed.
Constant Voltage (CV) charge
The charge is carried out at the voltage value you set. Even if the charge current changes, a constant voltage can be applied.
Charge completion condition setting
- Setting of time
- The time can be set up to 999 hours 59 minutes 59 seconds by one-second unit. If the time reaches the setting time, the charge is completed.
- Setting of voltage
- Set the voltage value to complete the charge. If the terminal voltage of the battery reaches the setting value, the charge is completed (only at a constant current charge).
- Setting of current
- Set the current to complete the charge. If the current that is passed to the battery reaches the setting value, the charge is completed (only at a constant voltage charge).
- Setting of -△V
- For nickel-metal hydride (Ni-MH) and nickel-cadmium (Ni-Cd) batteries, the voltage rises when charging is complete, and then the voltage drops to complete charging. The voltage drop at that time is measured, and if the voltage drops by the set -△V, the charge is complete.
Three Discharge Modes
Constant Current (CC) Discharge
The discharge is carried out at the current value you set. Even if the terminal voltage changes during discharge, a constant current can be passed.
Constant Resistance (CR) discharge
The discharge is carried out at the resistance value you set. The value of terminal voltage is measured and the current value for discharge is decided according to the setting value.
Constant Power (CP) Discharge
The discharge is carried out at the power value you set. If the terminal voltage changes during discharge, constant power can be consumed according to the change.
Discharge completion condition setting
- Setting of time
- The time can be set up to 999 hours 59 minutes 59 seconds by one-second unit. If the time reaches the setting time, the charge is completed.
- Setting of voltage
- Set the voltage value to complete the charge. If the terminal voltage of the battery reaches the setting value, the charge is completed.
Digital control function
| Control function |
|
|
|---|---|---|
| Setting function | I/O voltage setting, I/O current setting | Voltage/Current value mode (maximum rated voltage/current value) |
| OVP/OCP/UVP/OPP setting | Voltage/Current power value mode (maximum overvoltage/overcurrent/over-discharge/overpower protection value) | |
| Constant power/Constant resistance setting | Power value mode (maximum rated power value), Resistance value mode (0.2 Ω to 18 kΩ) | |
| Reading function | I/O voltage measurement, I/O current measurement | Voltage/Current value mode (maximum rated voltage/current value) |
| I/O voltage setting value, I/O current setting value | Voltage/current value mode (maximum rated voltage/current value) | |
| OVP/OCP/UVP/OPP setting | Voltage/Current power value mode (maximum overvoltage/overcurrent/over-discharge/overpower protection value) | |
| Constant power/Constant resistance/Temperature setting value (OBP) | Power value mode (maximum rated power value), Resistance value mode (0.2 Ω to 18 kΩ), External temperature protection value (0 to +100°C) | |
Remote function
External output ON/OFF
* As +S is set to common, input the external control voltage based on +S. Otherwise, a failure may be caused.
Remote sensing
The voltage reduction (VO-VL) due to resistance (R) of the output line and degradation of stability due to contact resistance are prevented (up to 0.5 V).
Various protection functions
For the charge-discharge tests, various protection functions are prepared for protecting your devices and this unit.
- OVP [overvoltage protection]
- OCP [overcurrent protection]
- UVP [under (low) voltage protection]
- OPP [over-power protection]
- OTP [internal over temperature protection 1]
- OHP [internal over temperature protection 2]
- OBP [over battery temperature protection]
- ACF [input voltage reduction]
- RS [remote sense reverse connection protection]

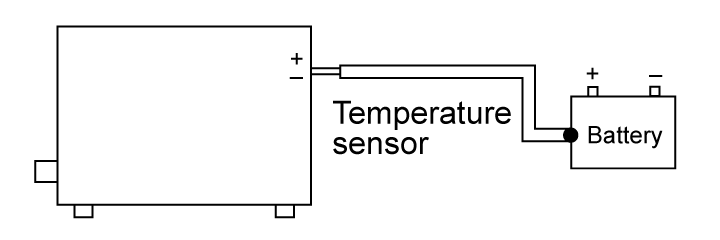

Battery Temperature Measurement Function
The temperature of a battery is measured by the temperature sensor. If the temperature becomes abnormal, charge and discharge are stopped in an urgent manner to protect the battery.
Specifications
- Input voltage
-
120 Vac ±10%, 50/60 Hz, Single-phase
200 Vac ±10%, 50/60 Hz, Single-phase (Option)
230 Vac ±10%, 50/60 Hz, Single-phase (Option) - Battery Charging Modes
-
Constant Current and Constant Voltage combination (CC/CV) charge mode
Constant Current (CC) charge mode
Constant Voltage (CV) charge mode - Battery Discharging Modes
-
Constant Current (CC) discharge mode
Constant Resistance (CR) discharge mode
Constant Power (CP) discharge mode - Protection functions
-
Overvoltage Protection (OVP)
Overcurrent Protection (OCP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Internal Over Temperature Protection 1 (OTP)
Internal Over Temperature Protection 2 (OHP)
Over Battery Temperature Protection (OBP)
AC Input Voltage Failure (ACF)
Remote Sens Reverse Connect Protection (RS)
For details, download the datasheet below.
FAQs
- What kind of testing of batteries can the Battery Cycle Tester?
- Are battery performance tests as specified in IEC 61960 supported?
- Can it be used for performance testing of IEC 62620
- Can the CD series regenerate battery power?
- Can the Battery Cycle Tester inspect batteries with BMS?
- What charging methods are supported by the Battery Cycle Tester?
- What types of batteries does the Battery Cycle Tester support?
- What types of start and end of charging and discharging parameters are available?
- What safety and protection features does the Battery Cycle Tester have?
Options
- -LGmb
-
digital interface board
Digital control with LAN/USB/RS-232C/RS-485/GPIB is available.
-LGmb devices connected in a daisy chain can control up to 16 units.* Selecting this option replaces the standard USB port.
* For more information on the digital interface, refer to CO/USB series datasheet.- -LGmb: digital interface + communication cable 2 meters length
- -LGmb(Mc0.15): digital interface + communication cable 0.15 meters length
- -LGmb(Mc0.5): digital interface + communication cable 0.5 meters length
A separate adapter (sold separately) is required for connection. For details, click here.
- -LZ
-
carrying handle
The carrying handle is attached to the upper surface. (only the model of dimension diagram C of datasheet)
- -L(200V)
-
200 Vac ±10% input on sale soon
For the input current, refer to the "MODELS".
- -L(230V)
-
230 Vac ±10% input on sale soon
For the input current, refer to the "MODELS".
How to Order
<Example>
When adding -LGmb option to CD35-3-LThUs1 → CD35-3-LGmbTh
When adding -LGmb, -LZ and -L(200V) options to CD8-0.5-LLzThUs1 → CD8-0.5-LGmbLzThZ(200V)
If you have any questions about ordering, please contact your sales representative.
Accessories

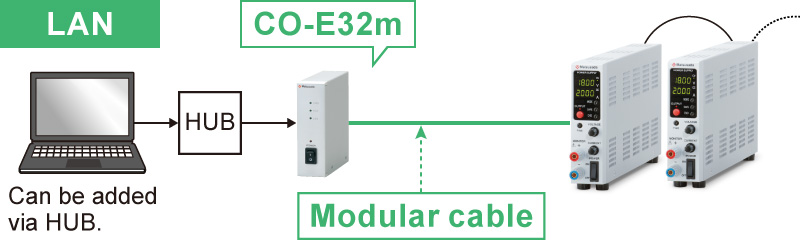

- Adapters for various digital interfaces (additional accessories)
-
To use Matsusada Precision's digital interface, you need to prepare a digital interface adapter separately. The following interface adapters are available according to your controller port.
For details, refer to CO/USB series.- CO-E32m: LAN adapter
- CO-U32m: USB adapter
- CO-MET2-9: RS-232C (9 pin) adapter
- CO-MET2-25: RS-232C (25 pin) adapter
- CO-MET4-25: RS-485 (25 pin) adapter
- CO-G32m: GPIB adapter (Scheduled for discontinuation in December 2028)
Adapter for digital interface
- AC Input Cable
-
Included accessory
Except for -L(200V), -L(230V) optionCABLE TYPE1
125 V/10 A 2.5 meters
Fixed lengthIncluded accessory
For -L(200V), -L(230V) optionCABLE TYPE3
250 V/10 A 2.5 meters
Fixed lengthAdditional accessory CABLE TYPE4
250 V/10 A 2.5 meters
Fixed length
Various tools are prepared so that you can use the CD series more conveniently.
- Stand [1.38-inch wide models]
-
Convenient for a single use for an individual device.
- Rack mount shelf [RMO series]
-
10 units * /1 shelf are stored in the cabinet, and each unit can be removed easily. [* 1.38-inch wide models]
Dimensions
Software
Battery Cycle Test Software "CD-BC-1ch" (Attached) *
CD-BC is dedicated software for remote-controlling our company's charge-discharge power supply. It realizes ideal power supply control when you carry out the charge-discharge test for various rechargeable batteries, such as lithium-ion batteries. It enables the setting of test conditions, test execution, and confirmation of test status, as well as displays and saves test results.
* "CD-BC" is only controlling one channel version. If you want to control multiple channels, you need to purchase the CD-BC-Mch.
Features
- The charge-discharge test (creating test conditions to execute and check) can be executed by dedicated software only.
- Up to 256 units of the CD series can be used for battery cycle tests.
- Checking the datalog during the test.
- Executing the charge-discharge test linked with Espec's temperature chamber.
- Charge-discharge test for various batteries: lead-acid, nickel-cadmium (NiCd), nickel-metal hydride (NiMH), lithium-ion (Li-ion), and lithium-ion polymer (Li-ion polymer) are supported.
1. Creating test conditions
Create a condition for charge and discharge.
Up to 16 patterns of charge and discharge sequence can be set. You can set various test conditions according to purpose, such as selecting the charge and discharge mode and setting each protection function.
2. Executing tests
Execute the test for each group you set.
On the execution screen, necessary information such as sequence, thermostatic chamber, the status of power supply, voltage value, and current value at test can be monitored on one screen. If the test is executed for multiple groups at the same time, the statuses can be collectively monitored.
3. Checking measurement data
Check the completed test data. You can check the data for each cycle of the sequence. You can check the status for each unit time and end condition of each cycle.
The data can be displayed as a graph.
Operation Requirement *
* It does not guarantee the operation.
- Microsoft and Windows are registered trademarks of Microsoft Corporation in the USA and other countries.
- Other product names are registered trademarks of each company.
| OS | Windows 11 (64bit), 10 (32/64bit), 8.1 (32/64bit), 8 (32/64bit), 7 (32/64bit), Microsoft. NET Framework 4.0 SP1 or later |
|---|---|
| Language | English/Japanese |
| CPU | Pentium4 or more |
| RAM | 1 GB or more |
| HDD | 500 MB or more free space |
| Monitor | 1024 x 768 or more resolution |
| Connection port | A USB port or COM port is required depending on the connection. |
| USB port | 1 port or more (when using CD-BC-Mch, USB protection key connection is required.) |
Download
If you are unable to download a file
Please try the following solution.
- Please press Ctrl+F5 to clear the cache of your web browser and try again.
- Please restart your web browser and log in again to try again.
- Please change your web browser to another browser and try again.
- Restart the computer and try again.
- Please try again on a different computer.
-

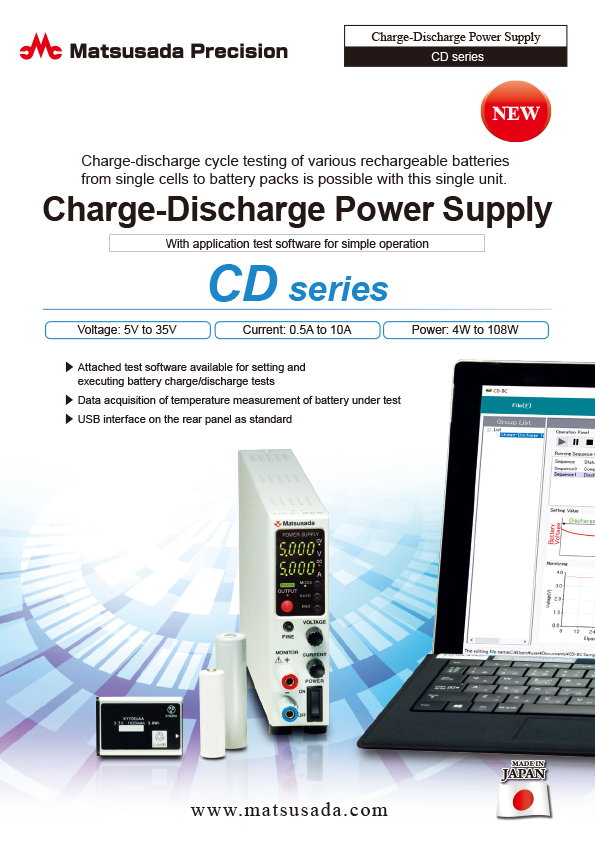

CD series Datasheet
Date: 2025-11-24 rev 16
PDF (3,627 KB)
-
DC POWER SUPPLIES SELECTION GUIDE
Date: 2025-06-27 rev.02
PDF (5,265 KB)
-
CD series Basic Instruction Manual
Date: 2020-09-11 rev 0.0
PDF (1,076 KB)
-
CD series Instruction Manual
Date: 2020-10-12 rev0.1
PDF (2,039 KB)
-
CD/CDPU series software CD-BC Instruction Manual
Date: 2025-05-08 rev 3.7
PDF (2,342 KB)
-
CD series USB Driver
Date: 2025-01-22 rev 1.7.6
ZIP (6,504 KB)
-
CD series (-LGmb option model) Outline Drawing (DXF, PDF)
Date: 2025-01-23
ZIP (384 KB)
Login Required
-
CD series Datasheet
Date: 2025-11-24 rev 16
PDF (3,627 KB)
-
DC POWER SUPPLIES SELECTION GUIDE
Date: 2025-06-27 rev.02
PDF (5,265 KB)
-
CD series Basic Instruction Manual
Date: 2020-09-11 rev 0.0
PDF (1,076 KB)
-
CD series Instruction Manual
Date: 2020-10-12 rev0.1
PDF (2,039 KB)
-
CD/CDPU series software CD-BC Instruction Manual
Date: 2025-05-08 rev 3.7
PDF (2,342 KB)
-
CD series USB Driver
Date: 2025-01-22 rev 1.7.6
ZIP (6,504 KB)
-
CD series (-LGmb option model) Outline Drawing (DXF, PDF)
Date: 2025-01-23
ZIP (384 KB)
On this website, we provide only the latest versions of information and instruction manuals for our products. Therefore, the newest versions of manuals on the website may differ from those that came with products you purchased in the past.
