FAQs

What parameters define the start and end conditions for charge/discharge tests?

Category
Battery Cycle Tester FAQ

The CD-BC charge/discharge cycle test application software for the CD and CDPU series allows users to configure the following parameters for the start and termination conditions of charge/discharge cycles.

  • Time (e.g., pause time, maximum time, etc.)
  • Voltage
  • Current
  • Capacity

Three Charge Modes

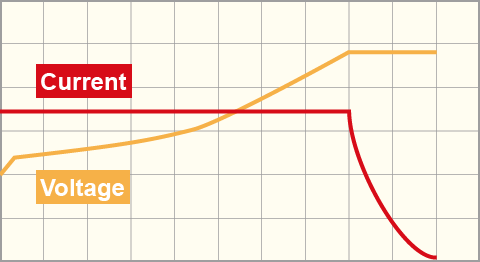

Constant Current/Constant Voltage (CC/CV) Charging
Constant Current/Constant Voltage (CC/CV) charge

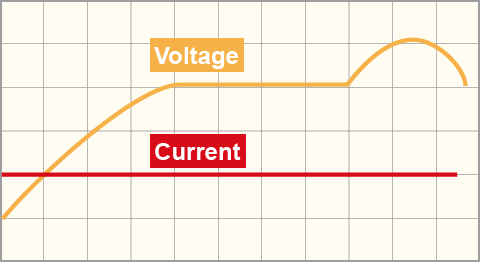

Constant Current (CC) Charging
Constant Current (CC) charge

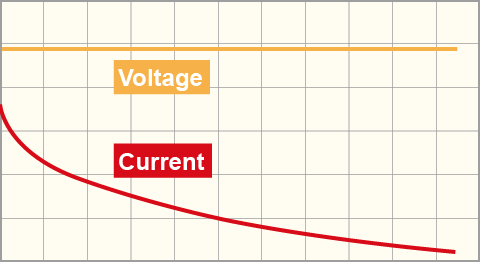

Constant Voltage (CV) Charging
Constant Voltage (CV) charge

Three Discharge Modes

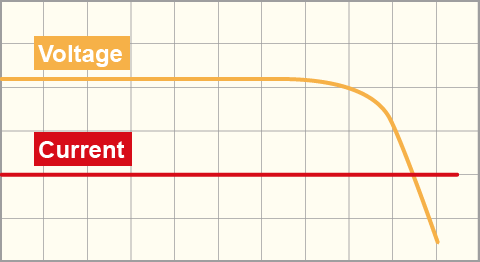

Constant Current (CC) Discharging
Constant Current (CC) discharge

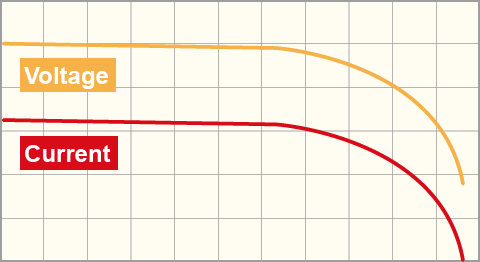

Constant Resistance (CR) Discharging
Constant Resistance (CR) discharge

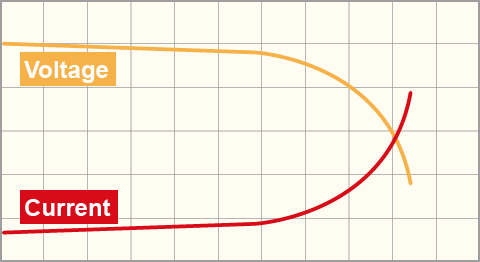

Constant Power (CP) Discharging
Constant Power (CP) discharge
