A battery simulator, also known as a battery emulator, is a bidirectional power supply designed to replicate the electrical behavior of a battery. A real battery's voltage and current output fluctuate dynamically based on the connected load and its State of Charge (SOC). A battery simulator accurately reproduces this dynamic behavior without the need for a physical battery.
Testing with actual batteries requires time-consuming charge and discharge cycles to reach a specific SOC. In contrast, a battery simulator enables rapid evaluation by instantly setting any desired SOC, significantly accelerating the development and testing process.
Operating Principle
Most battery simulators function as bidirectional DC power supplies, combining the capabilities of a power supply (source) and an electronic load (sink). This allows them to simulate both battery charging and discharging. Crucially, during discharge simulation (sink mode), Matsusada Precision's systems utilize regenerative technology. Instead of dissipating energy as heat, the system returns absorbed power to the AC line, improving energy efficiency and reducing cooling requirements in the test environment.
I-V Characteristic Simulation

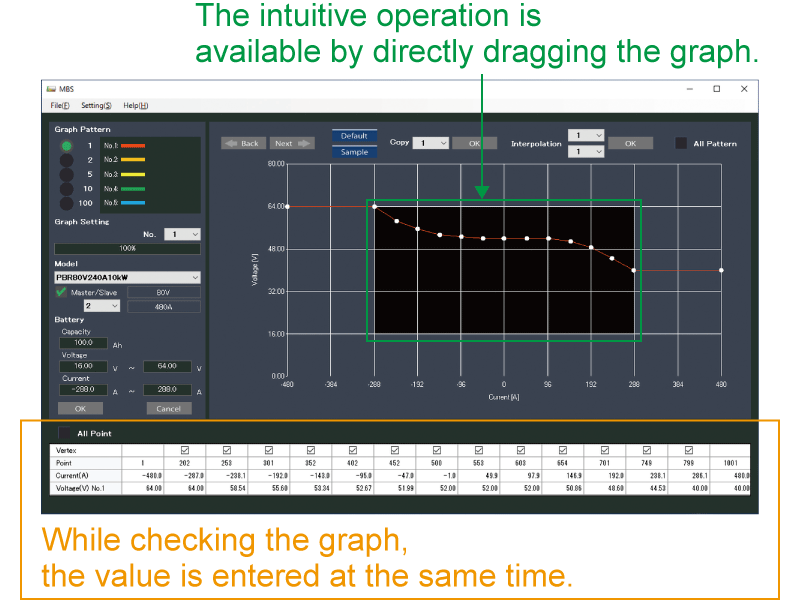

Battery simulation is based on I-V (current-voltage) curves, which define a battery's fundamental electrical characteristics. By programming multiple I-V curves corresponding to different SOC levels, users can achieve highly realistic simulations of battery performance under various conditions.
Features of Matsusada Precision Battery Simulators
Matsusada Precision offers the PBR and PBRM series of regenerative DC power supplies, designed specifically for high-power battery simulation.
- High-Precision Simulation: Users can define I-V characteristics using up to 1,001 programmable points, enabling precise replication of complex battery behaviors.
- High Power & Compact Design: The PBR and PBRM series provide high power density in a compact form factor, making them easy to integrate into test systems.
- Energy Efficiency: The regenerative function minimizes energy consumption during sink mode operation.
- User-Friendly Interface: Equipped with a large touch panel display for intuitive operation and monitoring.
For more details on specific models, please refer to the product pages:
Matsusada Precision manufactures regenerative DC power supplies, PBR, and PBRM series, which can simulate a high-power battery. This regenerative DC power supply (bi-directional power supply) with a large touch panel display is energy-saving, compact, and high-power, as its ability to regenerate power to the AC line during discharge simulation (sink mode) reduces overall energy consumption and heat dissipation.
