PIEZO DRIVER WITH SENSOR AMPLIFIER
- Voltage: -20 to +120 V
- Peak current: 200 mA
- High accuracy control to closed-loop with built-in sensor amplifier
- Available by open-loop mode
Highest Speed Piezo Positioning by Doubling Rated Current
PZM-0.12BS is a piezo driver of compact built-in type equipped amplifier for sensors. It enables linear and high-accuracy positioning by correcting the hysteresis of piezo elements. It can obtain an equivalent response to a larger driver despite its compact size by the design as enhanced peak power so that it can supply two times the current rating. Moreover, it is possible to easily configure a microscopic displacement system in combination with our piezo actuator with strain sensor (strain gauge).
FEATURES AND BENEFITS
- High-accuracy closed-loop control with displacement sensor
- Compact driver best suitable for built-in
- Highest speed positioning by doubling rated current
- Designed for possible open loop mode
APPLICATIONS
Models
| Models | Output | Response speed | |||
|---|---|---|---|---|---|
| Voltage [Vdc] | Current | Load resistance | at 1 µF load | ||
| Rated Imean | Peak Ip ≤ 15 ms | ||||
| PZM-0.12BS | -20 to +120 V | 100 mA | 200 mA | 10 kHz | DC to 300 Hz |
Specifications
- Input voltage
- 12 to 15 Vdc
- Output voltage control
-
Open-loop mode (Voltage)
External control voltage -2 to +12 Vdc
Closed-loop mode (Displacement)
External control voltage 0 to +10 Vdc
Diagram
Connection diagram
Dimensions
160 x 101 x 33mm (6.30" x 3.98" x 1.30")
For details, download the datasheet below.
Download
If you are unable to download a file
Please try the following solution.
- Please press Ctrl+F5 to clear the cache of your web browser and try again.
- Please restart your web browser and log in again to try again.
- Please change your web browser to another browser and try again.
- Restart the computer and try again.
- Please try again on a different computer.
-

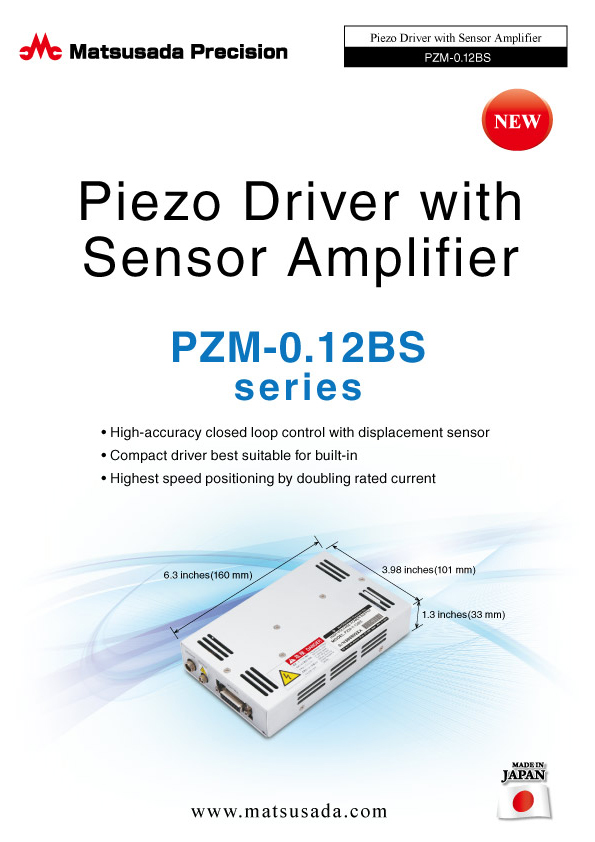

PZM-0.12BS series Datasheet
