HIGH VOLTAGE BIPOLAR AMPLIFIER
High Voltage of 1000V, Fast Response of 10kHz
- Voltage range: ±0.5kV, ±1kV
- Current: 50 to 200mA
- Frequency bandwidth:
DC to 10 kHz (at CC mode) - High-speed response
High Voltage/Fast Response Four-Quadrant Bipolar Amplifier
The DOC series is a high-voltage, four-quadrant bipolar amplifier offering output ranges of ±500 V and ±1000 V. Features include adjustable voltage and current limit settings to prevent excessive stress on your load. It will drastically reduce the risk of applying excessive stress on your load. Front-panel output terminals enhance operability.
FEATURES AND BENEFITS
- High-voltage output up to ±1000 V
- Compact, High voltage, and High power
- Four-quadrant output (Source and Sink are available.)
- Selectable operation modes: Constant Voltage (CV) and Constant Current (CC)
- Universal AC input supported
- High-speed response, 10 kHz
- The DC bias function (DC offset voltage/current setting) is equipped.
Models
| Model | Output | Frequency bandwidth (-3 dB) | ||
|---|---|---|---|---|
| Voltage | Current | CV | CC | |
| DOC500-0.1 | -500 to +500 V | 0 to 100 mA | DC to 10 kHz | DC to 5 kHz |
| DOC500-0.2 | -500 to +500 V | 0 to 200 mA | DC to 10 kHz | DC to 5 kHz |
| DOC1000-0.05 | -1000 to +1000 V | 0 to 50 mA | DC to 10 kHz | DC to 5 kHz |
| DOC1000-0.1 | -1000 to +1000 V | 0 to 100 mA | DC to 10 kHz | DC to 5 kHz |
Specifications
- Input voltage
- 85 to 264 Vac, 50/60 Hz, Single-phase
- Output control
-
[External control signal] Vcon-in, Input voltage -10 to +10 V
[Front panel] CV/CC switching, DC bias: 10-turn potentiometer with -100% to +100% setting
Options
- -LN
-
Automatic output recovery (previous: no power failure protection)
This option retains the output state when recovering from an input power interruption, such as an AC power switch ON/OFF or a power failure. Therefore, there is no need to reset the protection status by turning off the OUTPUT switch once.
Caution: If you turn on the power while the OUTPUT setting is ON, the output will be ON.
How to Order
When placing an order, please add the option code "-LN" after the model name.
[Example] DOC1000-0.1-LN
Accessories
- Function Generator
-
- AC input cable
-
* Please use appropriate AC cable.Standard CABLE TYPE1
125 V/10 A 2.5 meters
Fixed lengthSold separately CABLE TYPE3
250 V/10 A 2.5 meters
Fixed lengthSold separately CABLE TYPE4
250 V/10 A 2.5 meters
Fixed length
Dimensions
Tech Notes
Capacitive Load
When a capacitive load is more than 100 pF (including a stray capacitance of the output wire), the resonance in the output may occur. In that case, install 100 Ω (at 0.1 μF) to 1000 Ω (at 1000 pF) of high-voltage resistance in the output in series. Please note that the frequency band is limited when using an amplifier with a capacitive load, as shown in the formula on the right.
In addition, when an amplifier is used for a corona discharge, a current higher than its rating will flow, and it will affect the amplifier badly. In this case, as well as when using an amplifier with a capacitive load, please install the output resistance and limit the current.
* Please avoid continuous input of the high-frequency signal, which reduces the output frequency of an amplifier. An amplifier will break because of an increase in internal loss.
Download
If you are unable to download a file
Please try the following solution.
- Please press Ctrl+F5 to clear the cache of your web browser and try again.
- Please restart your web browser and log in again to try again.
- Please change your web browser to another browser and try again.
- Restart the computer and try again.
- Please try again on a different computer.
-

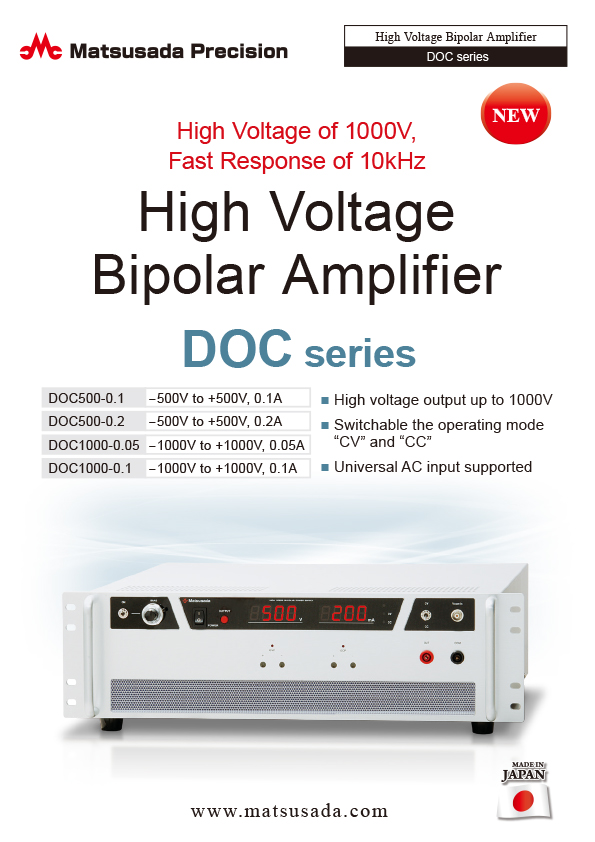

DOC series Datasheet
Date: 2025-07-03 rev 13
PDF (1,121 KB)
-
Bipolar Power Supplies Selection Guide Via External Signal input
Date: 2025-06-30 rev 08
PDF (4,774 KB)
-
Bipolar Power Supplies/Amplifiers Selection Guide
Date: 2023-10-17 rev.03
PDF (6,310 KB)
-
DOC series Instruction Manual
Last updated: December 27, 2019 rev.0.1
PDF (527 KB)
