MULTI-FUNCTION DC ELECTRONIC LOAD
- Max Voltage: 650V
- Max Current: 16.5A to 100A
- Max Power: 330W to 2000W
- Operation up to 9kW with boosters
650VDC INPUT, STANDARD SEQUENTIAL CONTROL
EZD series is a multi-function DC electronic load with the highest load power of 9 kW brought by boosters. The DC load is suitable for testing charge/discharge devices.
FEATURES
- Seven different load modes: Constant Current (CC) mode, Constant Resistance (CR) mode, Constant Power (CP) mode, Constant Voltage (CV) mode, Constant Current (CC) + Constant Voltage (CV) mode, Constant Resistance (CR) + Constant Voltage (CV) mode, Constant Power (CP) + Constant Voltage (CV) mode
- Large LCD has current, voltage, and power values on front display.
- Switching mode and two sequence programs for variable testings.
- Primary to secondary connections and parallel operation (available with different capacities in combinations).
- High power with boosters up to 9 kW
- Expandable up to 16 units (16 kW) via digital interface
APPLICATIONS
Load fluctuation testing
The power supply device manufacturers use electronic loads such as EZD series of Matsusada's DC electronic loads to simulate the load fluctuations.Load connection interfaces for digital control: USB, LAN, RS-232C, RS-485, and GPIB.
Battery charge/discharge testing
It is designed for engineers from various fields to evaluate the load impedance and the remaining discharge capacity with a constant current. It can also discharge a pulse current by emulating the actual load.
- Current load testing of power supplies
- Discharge testing of batteries and capacitors
- Testing of charge/discharge devices
- Surge absorption of motors
Models
| Models | Rated voltage [V] | Rated current [A] | Rated power [W] |
|---|---|---|---|
| EZD650V-330W | 650 V | 16.5 A | 330 W |
| EZD650V-1000W | 50 A | 1000 W |
| Models | Rated voltage[V] | Rated current [A] | Rated power [W] |
|---|---|---|---|
| EZD650V-2000WB | 650 V | 100 A | 2000 W |
* A single slave operation is not allowed.
Functions
Multi operation mode
EZD series is available with the following seven operation modes.
- Constant Current (CC) mode
- Constant Resistance (CR) mode
- Constant Power (CP) mode
- Constant Voltage (CV) mode
- CC mode + CV mode
- CR mode + CV mode
- CP mode + CV mode
Switching mode
The mode periodically changes the setting between the upper and lower limit values. The function is available in CC, CR, CP, and CV modes.
Note: Setting
- Upper limits and lower limits
- As of the above seven electronic load modes, the settings of the values are respectively provided with their own operation modes and ranges.
- (The lower limit is to be set within a range where it does not exceed the upper limit.)
- Frequency
- Setting range: 1 Hz to 4 kHz
- Setting resolution: 0.1 Hz
- Duty ratio
- Setting range: 5% to 95%
- Setting resolution: 0.1%
- Slew rate (in CC mode)
-
Model Range Setting range Setting resolution EZ650V-1000W H 0.8A/µs to 0.08A/µs 0.001A/µs 80 mA/µs to 8 mA/µs 0.1 mA/µs 8 mA/µs to 0.8 mA/µs 0.01 mA/µs 0.8 mA/µs to 0.08 mA/µs 0.001 mA/µs L 80 mA/µs to 8 mA/µs 0.1 mA/µs 8 mA/µs to 0.8 mA/µs 0.01 mA/µs 0.8 mA/µs to 0.08 mA/µs 0.001 mA/µs 80µA/µs to 8µA/µs 0.1µA/µs EZ650V-330W H 0.26A/µs to 0.026A/µs 0.001A/µs 260 mA/µs to 26 mA/µs 0.1 mA/µs 26 mA/µs to 0.26 mA/µs 0.01 mA/µs 0.26 mA/µs to 0.026 mA/µs 0.001 mA/µs L 26 mA/µs to 2.6 mA/µs 0.1 mA/µs 2.6 mA/µs to 0.26 mA/µs 0.01 mA/µs 0.26 mA/µs to 0.026 mA/µs 0.001 mA/µs 26µA/µs to 2.6µA/µs 0.1µA/µs
Master/Slave control
In EZD series, the operations of up to five units are performed as a single system as long as these types have the same rated voltage. (The series requires optional dedicated cables for the connection.)
The master unit indicates the total values which are obtained from the connected units setting and monitoring as setting and monitoring values. In order to gain the highest capacities up to 9 kW, Model EZD650V-1000W should be selected for a master unit, and Model EZD650V-2000WB is also to be selected for four slave units.
All five Model EZD650V-1000W units
Total load power of 5 kW.
A Model EZD650V-1000W unit and four Model EZD650V-2000WB units
Total load power of 9 kW.
Sequential control
EZD series has two types of sequential control. They are available in CC, CR, CP, and CV modes. The pattern is readily created through the front panel and the exclusive software. The program can save two patterns of the fast sequence as well as 10 patterns of the normal sequence at maximum in the EZD unit, and can also be recalled at any time.
Fast sequence
The function performs the steps to move to the setting values for a certain fixed period.
- The setting is available with 1,024 steps at maximum.
- Repeat count: 1 to 10000 times or infinity
- Setting range: 10 µs to 1000 ms
- Setting resolution: 100 µs
Normal sequence

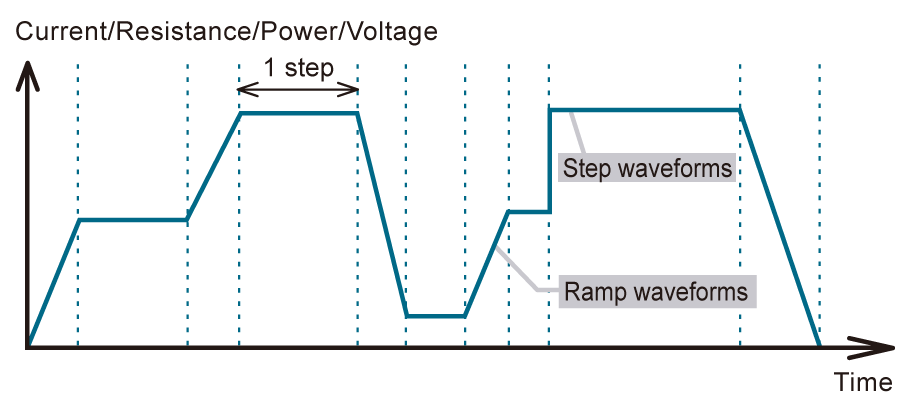

The waveform pattern is generated with ramp waveforms and step waveforms.
- Up to 256 steps can be programmed.
- Repeat count: 1 to 10000 times or infinity
- Setting range: 10 ms to 1000 h
- Setting resolution (Applicable scope):
- 1 ms (1 ms to 1 min)
- 100 ms (1 min to 1 h)
- 1 s (1 h to 10 h)
- 10 s (10 h to 100 h)
- 1 min (100 h to 999 h 59 min)
Short circuit mode
The unit drops in the low impedance.
- CC mode: maximum current of the setting range
- CR mode: minimum resistance of the setting range
- The current value when in short is limited according to the setting of the protection function.
External control function
Using the control terminals on the back of the panel, the setting change and the monitoring of the load status are provided.
- Setting control of each load by the external voltage or the external resistance
- LOAD ON/OFF
- Range switching
- FAULT input
- Input current monitor
- Input voltage monitor
- Status signal output (LOAD ON/OFF, FAULT, SHORT)
Memory function
EZD series has both a preset memory and 99 setup memories. So, you can easily save and call the memory.
Digital Interface
With USB/LAN/RS-232C/RS-485/GPIB digital, the digital control is available with GPIB. Another function of the EZD series that is used as a DC electronic load is provided by connecting EZDs up to 16 units (16 kW). The function can also be used together with the master/slave units.
An adapter is required separately, when using the Adapter. go to Accessories
Specifications
Options
- -LGob *
-
Optical Interface Board
With optical communication, isolation control is performed. As complete isolation is performed by means of optical fiber, this enables advanced prevention of erroneous operations involved with transient phenomenon caused by surges, inductive lightning, external noise, etc.- -LGob: Optical interface board + optical cable 2 meters
- -LGob(Fc5): Optical interface board + optical cable 5 meters
- -LGob(Fc10): Optical interface board + optical cable 10 meters
- -LGob(Fc20): Optical interface board + optical cable 20 meters
- -LGob(Fc40): Optical interface board + optical cable 40 meters
Select the optional optical interface board (-LGob) when using this DC Electronic Load under the following conditions.
- Noisy environment including factories (Example: Motors or coils are used near power supplies and loads).
- Using with high voltage floating (more than 250 V).
- Installation distance of 2 meters or more between this DC Electronic Load and a controller such as a computer, laptop, or Programmable Logic Controller (PLC).
-
Adapters for connecting optical interface board (sold separately)
To use the optical interface, you need to prepare an optical interface adapter separately. The following interface adapters are available according to the communication method of your controller port.
When these options are selected, the standard digital interface is not included.
- CO-E32
-
Adapter for LAN
Total 32 units can be connected to one CO-E32.
LAN cable is not provided.
- USB-OPT
-
Adapter for USB
Total 32 units can be connected to one USB-OPT.
USB cable is not provided.
- CO-OPT2-9
-
Adapter for RS-232C (9 pin)
A total of 32 units can be connected to each CO-OPT2-9.
- CO-OPT2-25
-
Adapter for RS-232C (25 pin)
A total of 32 units can be connected to each CO-OPT2-25.
- CO-OPT4-25
-
Adapter for RS-485 (25 pin)
A total of 32 units can be connected to each CO-OPT4-25.
- CO-G32
-
Adapter for GPIB
A total of 32 units can be connected to one CO-G32.
GPIB cable is not provided.
(B) Optical fiber cable
As for models with the -LGob option, a two-meter cable is provided in each unit. If you need a longer cable, please consult with our sales staff.For details, refer to CO/USB series datasheet.
Accessories
Digital Interface
With USB/LAN/RS-232C/RS-485/GPIB digital, the digital control is available with GPIB. Another function of the EZD series that is used as a DC electronic load is provided by connecting EZDs up to 16 units (16 kW). The function can also be used together with the master/slave units.
Adapters for connecting digital interface (sold separately)
To use the digital interface, you need to prepare a digital interface adapter separately. The following interface adapters are available according to the communication method of your controller port.

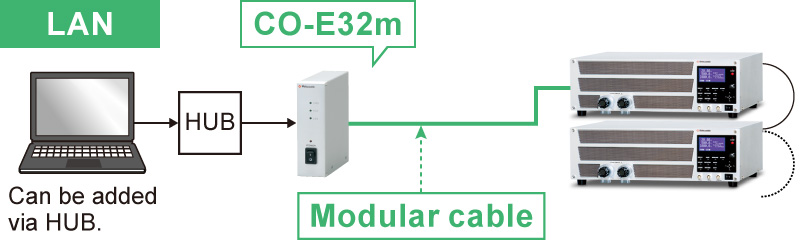

- CO-E32m
-
Adapter for LAN
Total 16 units can be connected to one CO-E32m.
LAN cable is not provided.
- CO-U32m
-
Adapter for USB
Total 16 units can be connected to one CO-U32m.
USB cable is not provided.
- CO-MET2-9
-
Adapter for RS-232C (9 pin)
D-sub ⇔ Modular jack
A total of 16 units can be connected to each CO-MET2-9.
- CO-MET2-25
-
Adapter for RS-232C (25 pin)
D-sub ⇔ Modular jack
A total of 16 units can be connected to each CO-MET2-25.
- CO-MET4-25
-
Adapter for RS-485 (25 pin)
D-sub ⇔ Modular jack
Total of 16 units can be connected to each CO-MET4-25.
- CO-G32m
-
Adapter for GPIB
A total of 16 units can be connected to one CO-G32m.
GPIB cable is not provided.
For details, refer to CO/USB series datasheet.
(A) CO-M Cable
A two-meter cable is provided in each model. If you need a longer cable, please consult with our sales staff.
| Standard | CABLE TYPE1 |  |
 |
125 V / 10 A | 2.5 meters Fixed length |
|---|---|---|---|---|---|
| Sold separately | CABLE TYPE3 | |
 |
250 V / 10 A | 2.5 meters Fixed length |
| Sold separately | CABLE TYPE4 | |
 |
250 V / 10 A | 2.5 meters Fixed length |
Master/slave communications cable
- EZD-MS cable 1
- Master/slave communications cable 0.55 meters
- EZD-MS cable 2
- Master/slave communications cable 0.3 meters
Rack mount flange

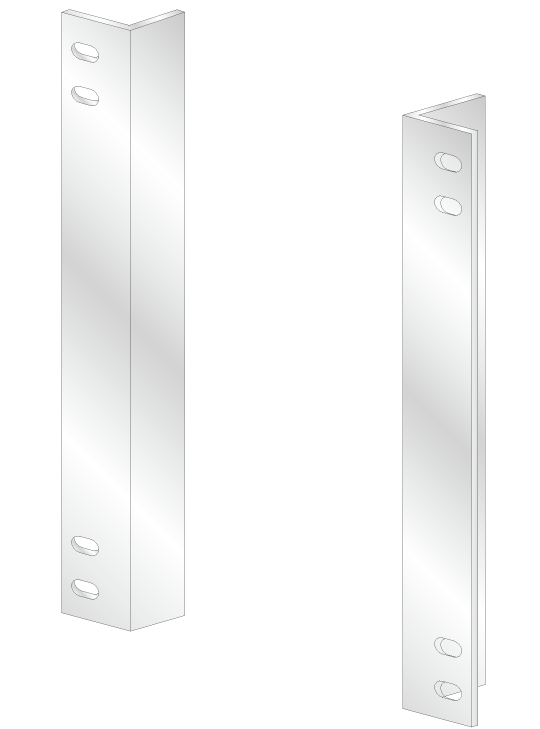

- Rack mount flange 3U
- This rack mount flange 3U attaches to both side of the EZD series when it is stored in a 19”rack cabinet.
Application software for power supplies and electronic loads
PSS2en series
PSS2en is the dedicated software which can actuate various power supplies, electronic loads and digital controller for power supplies manufactured by Matsusada Precision Inc. with simple set up.
It is the perfect for the aging test, the burn-in test and the withstand voltage test for electronic parts, and for the endurance test, intermittent/continuous operation test or various simulation test for electric component of automobile.
For details, refer to PSS2en page.
