ULTRA-COMPACT
BENCHTOP AC POWER SOURCE

Achieves excellent cost performance

  • AC:
    0 to 150 V, 0 to 300 V
    500 VA/40 Hz to 400 Hz
  • Space saving
  • Outstanding cost performance
  • Universal outlet

The world's smallest class combining the space savings and high-quality output

The DRJE series is the world's smallest class of precision sine wave output, combining benchtop operation with the functionality of the SRA series rack mount multifunction AC power sources. This AC power source is a new type of AC power source that combines the space savings and high-quality output required in testing, evaluation, cell production, etc.
While offering high baseline performance and reliability as an AC power source, outstanding cost performance is achieved by carefully selecting the available features. Moreover, with a worldwide input compatible with a wide range of input voltages in a compact chassis, as well as outstanding operability, even novices can begin using it right away, anywhere in the world.

* Not compatible with applications that inject external power into the DRJE series or cause regenerative operation.

Main Applications

  • Experiments
  • Endurance testing
  • Evaluation and testing of AC-powered devices

Models

Model Lo range
(0 to 150 V)
Hi range
(0 to 300 V)
DRJE500 Maximum output power 500 VA
Maximum output current 5.00 A 2.50 A

Note

The DRJE series is not suitable for use with devices that "return generated power to AC lines" or "directly connect to the commercial grid", such as solar inverters (PV inverters) used in photovoltaic power generation or fuel cells. For combinations with such devices, please use our high-speed four-quadrant bipolar power supplies.

Functions

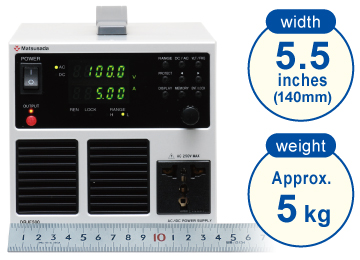

Ultra-Compact Design

As it is a bipolar power supply that uses the switching amplifier method, its volume is approximately one-sixth of products that use the linear amplifier method, making it extremely compact.
In addition, its compact design with a width of only 5.5 inches (140 mm) and weight of approximately 5 kg allows it to be used anywhere. It is also equipped with a handle as standard, making it easy to carry.

Ultra-Compact Design | DRJE series | AC power source Benchtop | Matsusada Precision

Capable of a Wide Range of Outputs

Compatibility with various AC input devices enables its use in a wide variety of applications.

  • Voltage: 0 to 150 Vac/0 to 300 Vac
  • Frequency: 40 Hz to 400 Hz

Universal Type Outlet

The front panel is equipped with a universal outlet, convenient for the development and testing of products for other country's markets. Plugs for all countries can be used without an adapter.

Universal type outlet

Large Peak Current

It achieves a 20 A peak current (in Lo range).
It is capable of outputting up to 4 crest factors and is ideal for capacitor input load.

Maximum peak current
* Constant current output is also available for loads where you wish to limit the current. Contact a sales representative for details.

Safety Functions

The DRJE series is equipped with a safety function to protect the power supply and connected load. For example, if an abnormal current flows, such as a short circuit, the output is immediately stopped. However, if a load with an inrush current is connected, the output may be stopped by the overcurrent protection function. In this case, use a product with a margin for output current or use the SRK series with a current limit function. Some loads have inrush currents that flow more than 10 times the rated current.

Appearance

DRJE's front panel DRJE's rear panel
  1. POWER switch:
    POWER ON/OFF switch.
  2. OUTPUT button:
    Power source output ON/OFF switch. The lamp illuminates when output is ON.
  3. Status display:
    Indicates the status of each power supply.
    LOCK: Disables key operation.
    RANGE: Indicates the output range under each mode.
  4. Meter display:
    The power supply output value is indicated in TRUE RMS.
    Upper value: Indicates voltage.
    Lower value: Indicates current, power, or frequency, depending on the setting. In addition, fault items are indicated in the text when protective functions are activated.
  5. Control key:
    An easy way to operate frequently used functions.
  6. Rotary encoder:
    Sets the voltage/frequency or protection memory functions.
  7. Output outlet: This outlet is compatible with the plugs of every country.
  8. Output terminal block
  9. Input inlet:
    The input voltage is automatically switched between 90 to 132 V and 180 to 250 V. It supports worldwide input and has a built-in power factor improvement circuit.
  1. Switch RANGE: Switches the output voltage range. (H⇔L)
  2. DC/AC: (Not used)
  3. Voltage/Frequency:
    Switches between voltage/frequency setting mode.
  4. OCP/OVP/OPP:
    Switches the setting mode for each protection function.
  5. Arrow keys:
    Allows rapid setting by changing between digits when entering numbers.
  6. Arrow keys:
    Allows rapid setting by changing between digits when entering numbers.
  7. Switch DISPLAY:
    Switches between frequency, current, and power indications in sequence.
  8. Memory:
    Switches between memory recall mode and memory storage mode.
  9. ENTER/LOCK:
    ENTER function is used to determine memory mode. Also used to LOCK the operation system.

Specifications

For details, download the datasheet below.

Options

-LNh

No handle
Will not be equipped with a handle for carrying.

Can also be mounted in a 19-inch rack using a dedicated rack mount adapter (model: RMO-133H-DRJ ). Contact a sales representative for details.

How to Order

To order, please add the above option codes to the model number.

[Example] DRJE500-LNh

Accessory

AC Input Cable
Standard CABLE TYPE1 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 125 V / 10 A 2.5 meters
Fixed length
Sold separately CABLE TYPE3 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 250 V / 10 A 2.5 meters
Fixed length
Sold separately CABLE TYPE4 CABLE series | AC input cable | Matsusada Precision CABLE series | AC input cable | Matsusada Precision 250 V / 10 A 2.5 meters
Fixed length

Dimensions

For details, download the datasheet below.
