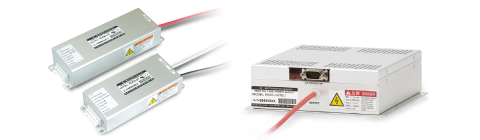

Chassis mount (Module) High Voltage Power Supplies

The following products are high voltage power supply modules that combine compactness, space saving, low noise, and high reliability. Our high voltage power supplies provide a wide range of assistance from R&D to production facilities; high-precision measurement devices, PMT (photomultiplier tubes), APD, MASS (mass spectrometry), etc., also electron beam, ion beam, X-ray tubes, and electrophoresis.

JB series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

JB series

output voltage
0 to 2 kV
output power
0 to 2.5 W
output current
0 to 8 mA
High Voltage Power Supply for PMT

High power and Low noise

J4/J6 series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

J4/J6 series

output voltage
0 to 5 kV
output current
0 to 8 mA
output power
6 W max
High Voltage Power Supply for PMT

Ideal for photo tubes, GM tubes, and radiation counters

K7 series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

K7 series

output voltage
0 to 30 kV
output current
0 to 700 µA
output power
7 W max
High stability High Voltage power supply

Ideal for SEM and MASS

U3_U6_U10 series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

U3/U6/U10 series

output voltage
0 to 25 kV
output current
0 to 20 mA
output power
0 to 6 W
Input/Output Proportional High Voltage Power Supply

Whenever less load regulation is required

RH series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

RH series

output voltage
0 to +5kV/-5kV
output current
0 to 10 mA
output power
0 to 10 W
Ultra thin and low noise High Voltage power supply

Only 0.25-inch thickness

VPS series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

VPS series

output voltage
0 to 5 kV
output current
3 mA max
output power
3 W to 5 W
Ultra low ripple High Voltage Power Supply

150 µV ripple noise and suitable for PMT and SEM

K10 series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

K10 series

output voltage
0 to 10 kV
output power
0 to 10 W
output current
0 to 10 mA
Compact High Voltage module for SEM and MASS

Ultra compact size 70 mm width

KAS series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

KAS series

output voltage
0 to 30 kV
output current
0 to 10 mA
output power
0 to 10 W
Mass Spectrometry Power Supply Modules

Especially for Mass and SEM

KA series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

KA series

output voltage
0 to 30 kV
output current
0 to 20 mA
output power
0 to 10 W
High Stability and Low Noise High Voltage Power Supply

Ideal for SEM and MASS

KM series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

KM series

output voltage
0 to 1 kV
output power
0 to 20 mA
output current
0 to 10 W
High stability and low noise High Voltage power supplies

Ideal for SEM and MASS

RSS series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

RSS series

output voltage
0 to 20 kV
output current
0 to 30 mA
output power
0 to 30 W
High power & Low Noise High Voltage Power Supplies

Compact, high stability and low noise

S series

S series

output voltage
0 to 30 kV
output current
0 to 50 mA
output power
0 to 30 W
Programmable High Voltage Power Supply

Detachable input connectors

K30 series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

K30 series

output voltage
0 to +1.8 kV/-1.8 kV
output current
0 to 20 mA
output power
0 to 36 W
High Voltage Power Supply for PMT

Designed for radiation measurement, SPECT, PET scanner

RA/RB series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

RA/RB series

output voltage
0 to 40 kV
output current
0 to 200 mA
output power
0 to 60 W
High power & Low Noise High Voltage Power Supplies

High reliability design with various protections

RC series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

RC series

output voltage
0 to 30 kV
output current
0 to 833 mA
output power
0 to 250 W
High power/Low noise
High Voltage power supply

Embedded module high-power up to 250W

WG series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

WG series

output voltage
0 to 5 kV
output current
0 to 300 mA
output power
0 to 300 W
Compact and High Voltage Power Supply Module with AC input

CV and CC mode automatic crossover

W series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

W series

output voltage
0 to +40 kV/-40 kV
output current
0 to 700 mA
output power
0 to 350 W
Compact & High Power High Voltage Power Supply

Best for ATE, X-ray system, capacitor charging

WA series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

WA series

output voltage
0 to 50 kV
output current
0 to 1.2 A
output power
0 to 1.2 kW
High Voltage Power Supply Module with AC input

Worldwide input and power factor correction circuit

KS-R series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

KS-R series

output voltage
0 to +20 kV/-20 kV
output current
0 to 0.1 mA
output power
0 to 2 W
High Voltage Power Supply for SEM and MASS

Output voltage, current monitor

K3-R series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

K3-R series

output voltage
0 to +10 kV/-10 kV
output current
0 to 3 mA
output power
0 to 3 W
MASS spectrometer reversible power supplies

Ideal for SEM and MASS

KAS-R series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

KAS-R series

output voltage
0 to +30 kV/-30 kV
output current
0 to 10 mA
output power
0 to 10 W
MASS Spectrometry High Voltage Power Supply

Overwhelming low ripple noise and high stability designed

KA-R series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

KA-R series

output voltage
0 to +30 kV/-30 kV
output current
0 to 1 mA
output power
0 to 10 W
SEM and MASS Spectrometry High Voltage Power Supply

Output polarity changed by external signal

K12-R series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

K12-R series

output voltage
0 to +30 kV/-30 kV
output current
0 to 1.2 mA
output power
0 to 12 W
Reversible Polarity & High Stability

Ideal for SEM and MASS

MF series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

MF series

output voltage
0 to 4kV
output current
0 to 1mA
output power
0 to 4W
Floating High Voltage Power Supply

4kV Output, Maximum 30kV Floating

FDC series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

FDC series

output voltage
7.5 V
output current
0 to 5 A
output power
0 to 37.5 W
Electron Gun and Ion Source Filament Power Supply

Floating withstand voltage 30 kV

XRR series | X-ray power supply Module (Chassis Mount) | Matsusada Precision

XRR series

output voltage
0 to 50 kV
output current
0 to 1 mA
output power
0 to 50 W
X-ray Power Source for Cathode grounded X-ray tube

Compact 50 W

XRT series | X-ray power supply Module (Chassis Mount) | Matsusada Precision

XRT series

output voltage
0 to 50 kV
output current
0 to 2 mA
output power
0 to 50 W
X-ray Power Source for Cathode grounded X-ray tube

Compact high power 50 W

XR series | X-ray power supply Module (Chassis Mount) | Matsusada Precision

XR series

output voltage
0 to 65 kV
output current
0 to 2 mA
output power
0 to 100 W
X-ray Power Supply for Cathode grounded X-ray tube

High Power 50 W to 100 W

XPgM/XKgM series | X-ray power supply Module (Chassis Mount) | Matsusada Precision

XPgM/XKgM series

output voltage
0 to 70 kV
output current
0 to 12 mA
output power
0 to 600 W
X-ray Power Source for Cathode or Anode grounded type

High power 600 W

HPMS-1N series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

HPMS-1N series

output voltage
0 to -1 kV
output power
0 to 20 mW
28mmØ PMT Drive Socket

Socket with built-in H.V. Power Supply and voltage divider

HPMS-1N-L2B series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

HPMS-1N-L2B series

output voltage
0 to -1 kV
output power
0 to 20 mW
28mmØ PMT Drive Socket with voltage monitor and flange

Compact

SC series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

SC series

output voltage
0 to 10 kV
output current
0 to 1 mA
output power
0 to 6 W
High Voltage Constant Current Power Supplies

The perfect choice for electro photo processing

SEM series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

SEM series

output voltage
0 to -30kV
output current
0 to 0.3mA
output power
0 to 9W
Low noise High Voltage power supply for Scanning Electron Microscope

Power supply used for acceleration, bias, and filament heating in a compact body

CZ9 series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

CZ series

output voltage
0 to +30kV/-30kV
output current
0 to 0.3 mA
output power
0 to 9 W
High voltage power supply for Capillary Electrophoresis

High reliability design and superior protection circuit

MDC series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

MDC series

output voltage
0 to +24 Vdc
output current
0 to 2 A
Continuous isolation voltage
15 kVdc
High Voltage Isolation Power Supply

High output of 48 W for operating multiple power supplies

Hxep series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

HXep series

output voltage
0 to 1 kV
output current
5 mA max
output power
3 W, 5 W, 25 W
High Voltage Power Supply for a xenon flash lamp

Modular type

Discontinued

HPMS-2.7N series | High Voltage power supply Module (Chassis Mount) | Matsusada Precision

HPMS-2.7N series

output voltage
0 to -2.7 kV
output power
0 to 540 mW
