MASS SPECTROMETRY POWER SUPPLY MODULES
Ultra Low Noise, High Stability
- Output Voltage: 3 to 30 kV
- Output Current: 0.25 to 10 mA
- Output Power: 7.5 to 10 W
- Single polarity
Especially for high resolution mass spectrometry

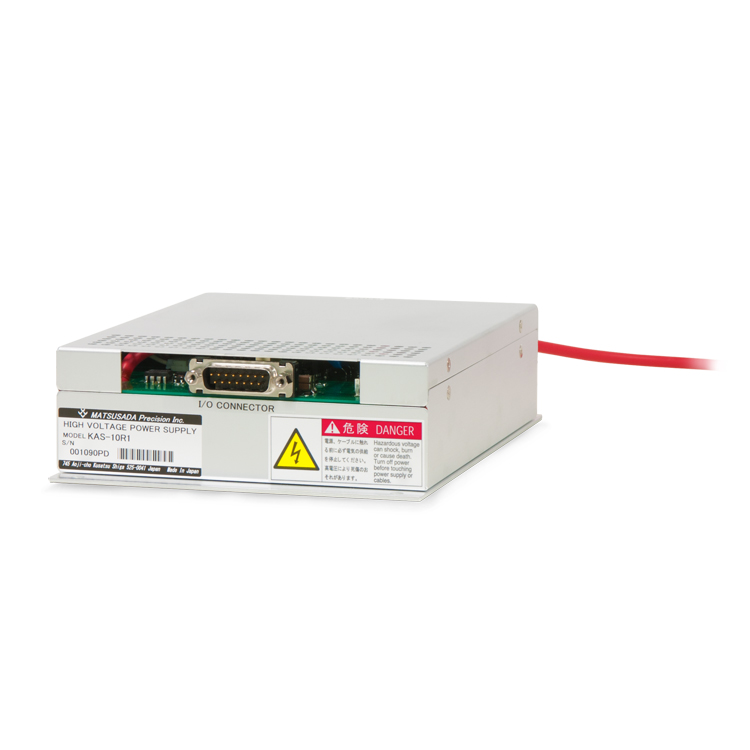

The KAS series is a compact high-voltage power supply featuring ultra-low noise and highly stable output, making it an ideal choice for Mass Spectrometry (MS) and Electron beam/Ion beam applications.
Its high performance is ideal for biasing, deflecting, or focusing electron and ion beams.
FEATURES AND BENEFITS
- Ideal for Scanning Electron Microscope (SEM) and Mass Spectrometry (MS)
- High stability 10 ppm/H
- Ultra-low noise
- Output voltage and current monitoring
LONG-TERM STABILITY TEST
KAS series, a high-voltage power supply module, achieved exceptional performance levels in the long-term stability test, highly exceeding expectations.
The stability test shows that the KAS series outperforms competitors.
The report includes a stability graph of the long term as 8 hours.
APPLICATIONS
Models
| Model | Output voltage | Output current |
|---|---|---|
| KAS-3P3.3 | 0 to 3 kV | 3.3 mA |
| KAS-5P2 | 0 to 5 kV | 2 mA |
| KAS-10P1 | 0 to 10 kV | 1 mA |
| KAS-20P0.4 | 0 to 20 kV | 0.4 mA |
| KAS-30P0.25 | 0 to 30 kV | 0.25 mA |
| Model | Output voltage | Output current |
|---|---|---|
| KAS-3N3.3 | 0 to -3 kV | 3.3 mA |
| KAS-5N2 | 0 to -5 kV | 2 mA |
| KAS-10N1 | 0 to -10 kV | 1 mA |
| KAS-20N0.4 | 0 to -20 kV | 0.4 mA |
| KAS-30N0.25 | 0 to -30 kV | 0.25 mA |
- Discontinued models
-
The following model is no longer available as we have stopped production and sales.
Specifications
- Input voltage
- 24 Vdc
- Output voltage control
- External 5 kΩ potentiometer or external control voltage (Vcon-in) 0 to 10 Vdc
Options
- -LMH
-
MHV connector (only up to 5 kV model)
- -LRs
-
Digital control via RS-232C
- -LRs4
-
Digital control via RS-485
- -LSH
-
SHV connector (only up to 5 kV model)
*Note that you cannot select -LMH and -LSH options or -LRs and -LRs4 options at the same time.
How to Order
When ordering, add Option No. in the following order by alphabet to Model No.
Example: KAS-30P0.25-LMHRs, KAS-5N2-LRs4SH
Diagram
Connection diagram
Dimensions
150 x 100 x 55mm (5.91" x 3.94" x 2.17")
175 x 100 x 68mm (6.89" x 3.94" x 2.68")
200 x 130 x 75mm (7.87" x 5.12" x 2.95")
For details, download the datasheet below.
