MINIATURE HIGH VOLTAGE POWER SUPPLY
- Voltage range: 1.5 kV
- Current: 1 mA
- Power: 1.5 W
- Wide range of output voltage
Compact PCB-mountable high-voltage power supplies for photomultiplier tubes
TFQ series, a compact PCB mountable power supply module, provides extremely low ripple 3 mVp-p at 1.5kV output.
With its low-profile design and ultra-low noise characteristics, this compact high-voltage power supply is an ideal choice for Photomultiplier Tubes (PMTs), Microchannel Plates (MCPs), and other precision instruments.
FEATURES AND BENEFITS
- Ultra low profile design, PCB mountable
- Low ripple, 3mVp-p
- Wide range of output voltage (continuous and variable output from 0 V)
- Output voltage control by external potentiometer or external voltage
- Enhanced protection features (Continuous short-circuit protection)
APPLICATIONS
- Photomultiplier Tube (PMT)
- Geiger Muller Tube (GM Tube)
- Microchannel Plate (MCP)/Image Intensifier (I.I.)
- Nuclear Instruments
- Flat Panel Detector (FPD)
Models
Unless otherwise specified, the specifications are defined at the maximum rated output after 30 minutes of warm-up
and apply to output ranges from 10% to 100% of the maximum rating.
| Model | Output | Input voltage/Current [typ.] | Ripple [mVp-p] | |||
|---|---|---|---|---|---|---|
| Voltage [kVdc] | Current [mA] | Minimum load * [MΩ] | > 5 kHz | ≤ 5 kHz | ||
| TFQ-1.5P-12 | 0 to +1.5 kV | 1 mA | 1 MΩ | +12 Vdc ±0.5 Vdc, 220 mA |
3 mVp-p | 5 mVp-p |
| TFQ-1.5P-15 | 0 to +1.5 kV | 1 mA | 1 MΩ | +15 Vdc ±1 Vdc, 180 mA |
3 mVp-p | 5 mVp-p |
| Model | Output | Input Current [typ.] | Ripple [mVp-p] | |||
|---|---|---|---|---|---|---|
| Voltage [kVdc] | Current [mA] | Minimum load * [MΩ] | > 5 kHz | ≤ 5 kHz | ||
| TFQ-1.5N-12 | 0 to -1.5 kV | 1 mA | 1 MΩ | +12 Vdc ±0.5 Vdc, 220 mA |
3 mVp-p | 5 mVp-p |
| TFQ-1.5N-15 | 0 to -1.5 kV | 1 mA | 1 MΩ | +15 Vdc ±1 Vdc, 180 mA |
3 mVp-p | 5 mVp-p |
* Rated output current is not to be drawn at low output voltage range (output current × minimum load). Use at larger than minimum load.
note:
This power supply is designed with adequate consideration for high voltage safety as an integrated power supply.
Yet, please make sure to ground the case for further safety when using.
Specifications
- Input voltage
- 12 Vdc or 15 Vdc
- Output voltage control
- External 50 kΩ potentiometer or external control voltage (Vcon-in) 0 to 5 Vdc
For details, download the datasheet below.

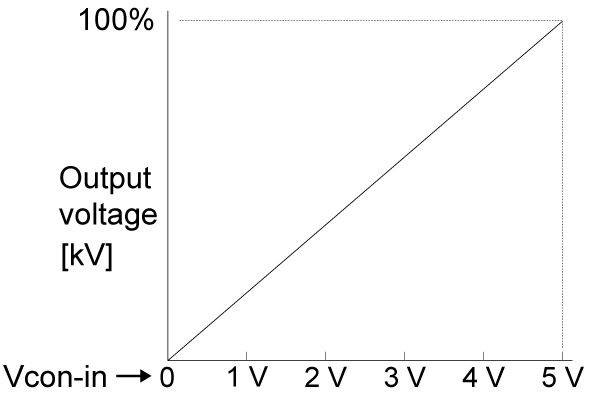

Characteristics of output voltage setting
Diagram
Connection Diagram
Dimensions
41.0 × 41.0 × 10.0 mm (1.61" × 1.61" × 0.39")
For details, download the datasheet below.
