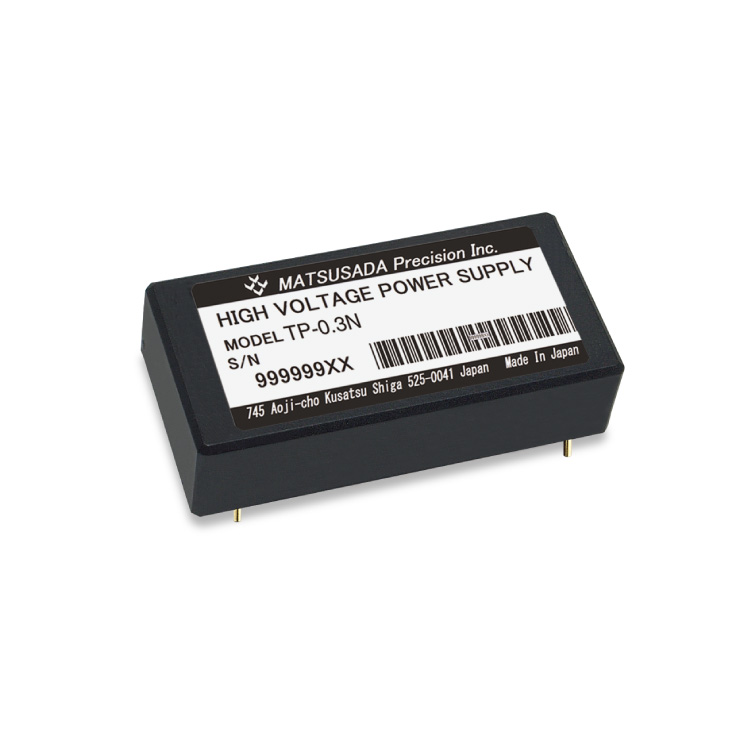

Miniature On-board High Voltage Power Supplies

Well-regulated, low noise!

  • Voltage range: 150 to 300V
  • Current: 5 to 10 mA
  • Long lifetime, high reliability

Miniature High Voltage Power Supplies

TY Series is a high voltage DC-DC converter ideally suited for biasing Avalanche Photodiodes (APDs) and Photodetectors. Miniature size on PCBs.

You can get the most performance of your APD

TY Series is a high voltage DC-to-DC converter ideally suited for biasing Avalanche Photodiodes (APDs) and Photodetectors.
With its miniature size, it saves precious space on your PCB and helps you to make the board smaller.

Features and Benefits

  • PCB mountable
  • Low ripple, high stability, and well-regulated output
  • A wide range of input voltage (+10 Vdc to +18 Vdc)
  • Wide output voltage range (Linearly variable from 0V)
  • Well-regulated, high performance
  • Output voltage control with External potentiometer/External control voltage (Vcon-in)
  • Full protection (overvoltage, overcurrent, input reverse connection)
  • Long lifetime, high reliability

Main application

Models

Positive polarity output

Model Output Ripple [%p-p]
Voltage [Vdc] Current [mA]
TY-0.15P 0 to +150 V 10 mA 0.05%
TY-0.3P 0 to +300 V 5 mA 0.05%

Negative polarity output

Model Output Ripple [%p-p]
Voltage [Vdc] Current [mA]
TY-0.15N 0 to -150 V 10 mA 0.05%
TY-0.3N 0 to -300 V 5 mA 0.05%

Specifications

For details, download the datasheet below.

Diagram

Connection Diagram

For details, download the datasheet below.

Dimensions

For details, download the datasheet below.
