DIGITAL CONTROLLER/
DIGITAL INTERFACE ADAPTER
Supports USB, LAN, RS-232C, RS-485, and GPIB
- Resolution: 16-bit (1/65535)
- Isolation: Fiber optic cable
(For some models)
Controlled by various interfaces
The CO/USB series is a line of digital interface adapters controlled by a computer, laptop, or programmable logic controller (PLC) for Matsusada Precision's DC power supplies, high voltage power supplies, AC power supplies, bipolar power supplies, and electronic loads. These products are ideal for enabling multifunctional and high-precision automatic inspection systems, 24/7 production lines, and various system equipment using power supply devices.
The interface adapters enable automation and labor-saving in manufacturing processes, accelerate research and development, and also contribute to improving safety and reliability. In addition to high-resolution 16-bit (1/65535) control, it is equipped with various functions such as readback and status, making it suitable for various applications such as R&D that require high accuracy, quality testing that requires constant monitoring of power supply status and manufacturing processes.
Optical isolation adapters, such as USB-OPT, CO-E32, CO-OPT2-9, etc., utilize fiber optic cables for digital communication, which enables extremely reliable communication even in noisy environments such as in factories and for long-distance control. By using optical fibers, they are electrically isolated, so safe operation is possible even in power supply configurations with potential differences. In addition, all models are designed to be ultra-compact, palm-sized, and can be installed anywhere. By using them in combination with Matsusada Precision's compact and lightweight power supplies and electronic loads, you can further take advantage of their space-saving features.
FEATURES AND BENEFITS
- Supports LAN and USB interface Also supports RS-232C, RS-485, and GPIB
- High resolution: 16-bit (1/65535)
- Full isolation: Fiber optic cable (optical link only)
- Various functions: Computer control, Read back, and Status
- Ultra-compact, placed anywhere
- Remote control from a programmable logic control (PLC)
-
CE marking (low voltage directive)
The product is designed to be installed in the customer's system and so as to meet the requirements of CE marking regarding chassis mounting, noise control, proper protections, and isolated devices. It is not designed to perform alone.
We also have a lineup of dedicated software, "PSS2", which enables sequence operation of various power supplies and CO/USB series manufactured by Matsusada Precision Inc. with a simple setup.
Detailed datasheet of PSS2en is available. Please feel free to contact us.
Models
OPTICAL ISOLATION ADAPTER
With optical communication, isolation control is performed. As complete isolation is provided by optical fiber, it can protect the unit against transients caused by surges, inductive lightning, external noise, etc.
- Extremely safe operation is possible since there is no upper limit to the breakdown voltage theoretically.
- Stable communication is possible even in an overly noise environment.
| Models | Interface | Supported models | Safety standards |
|---|---|---|---|
| CO-E32 | LAN | Supported model list | |
| USB-OPT | USB | Supported model list | - |
| CO-OPT2-9 | RS-232C | Supported model list | - |
| CO-OPT2-25 | RS-232C | Supported model list | - |
| CO-OPT4-25 | RS-485 | Supported model list | - |
| CO-G32 | GPIB | Supported model list | |
The optical adapter use is recommended under the following environment.
- Noisy environments such as factories (Example: Motors or coils are used near power supplies and loads)
- When there is a possibility of arcing or output short circuit.
DIGITAL COMMUNICATION ADAPTER
| Models | Interface | Supported models | Safety standards |
|---|---|---|---|
| CO-E32m | LAN | Supported model list | |
| USB-MET Coming soon | USB | Supported model list | |
| CO-U32m | USB | Supported model list | |
| CO-MET2-9 | RS-232C | Supported model list | - |
| CO-MET2-25 | RS-232C | Supported model list | - |
| CO-MET4-25 | RS-485 | Supported model list | - |
| CO-G32m | GPIB | Supported model list | |
DIGITAL CONVERTER FOR ANALOG CONTROL POWER SUPPLIES

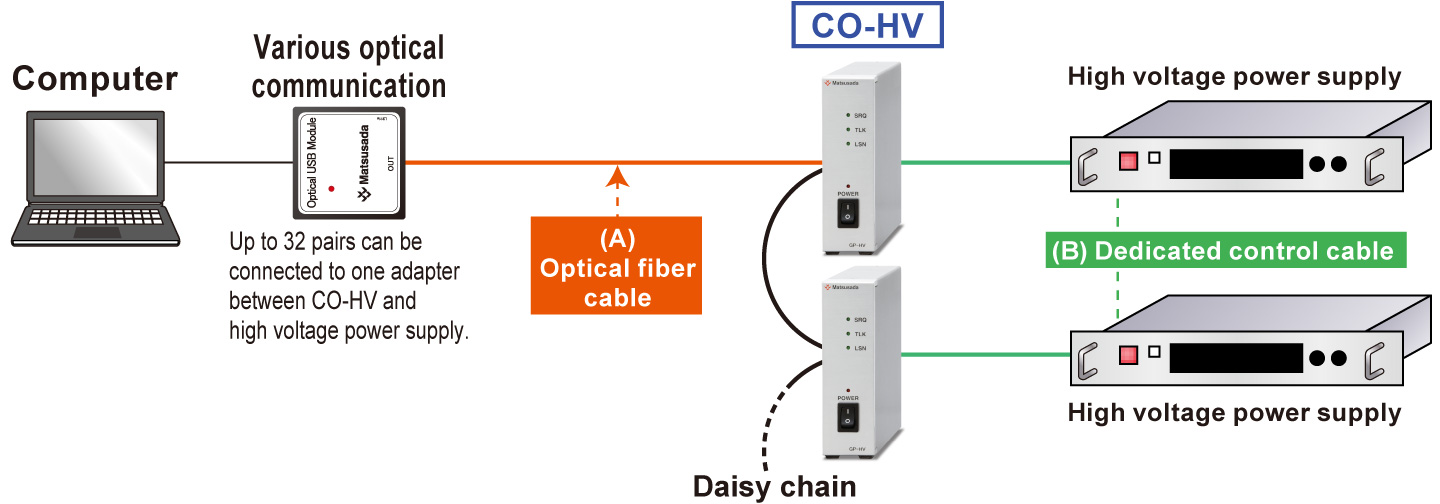

This digital conversion adapter provides a digital control system for high-voltage power supplies that only have analog control.
Digital communication is based on optical communication with high isolation performance, so it can be used for control over long distances.
| Models | Supported models | Safety standards |
|---|---|---|
| CO-HV | Supported model list | |
Optional program SWEEP CONTROL
The program is used to gradually change the output of DC power supplies and high voltage power supplies that can be controlled by our power supply digital controller CO/USB series.
| Models | Supported models | Safety standards |
|---|---|---|
| Sweep control program for CO/USB series | Supported model list | - |
Discontinued models
The following model is no longer available as we have stopped production and sales.
| Models | Supported models |
|---|---|
| CO-RG | RGJ series |
| CO-RG-LH | RGJ series |
Specifications
OPTICAL ISOLATION ADAPTER

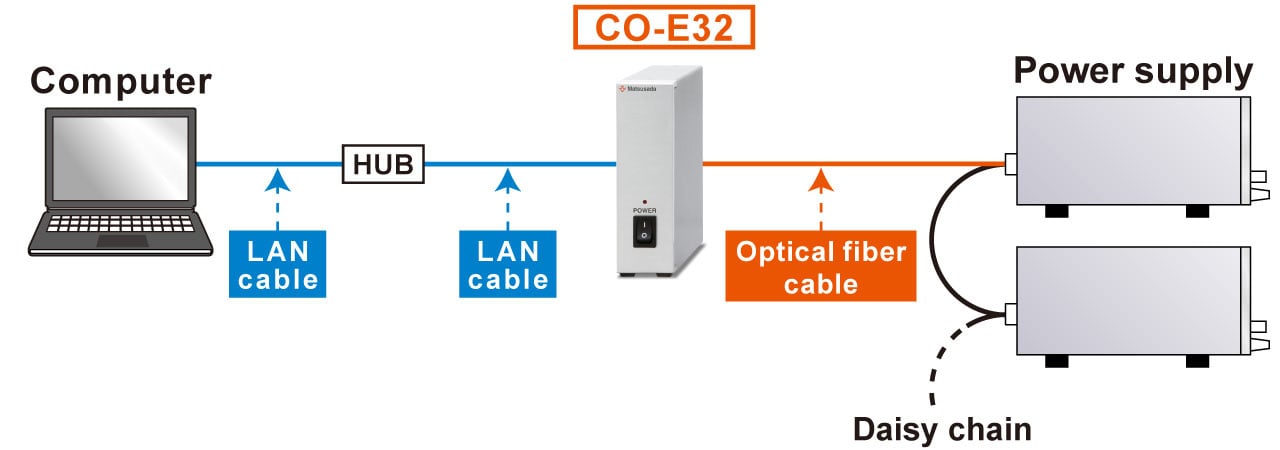

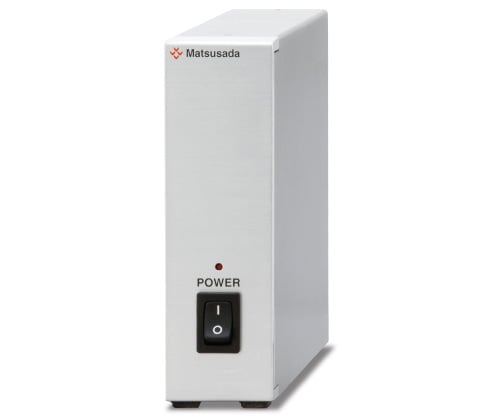

LAN-adapter for optical communication CO-E32
This adapter is for control of several power supplies with LAN.
Up to 32 units in total can be connected to one CO-E32.
| Can be used to connect directly | Models with optical interface option, -LGob |
|---|---|

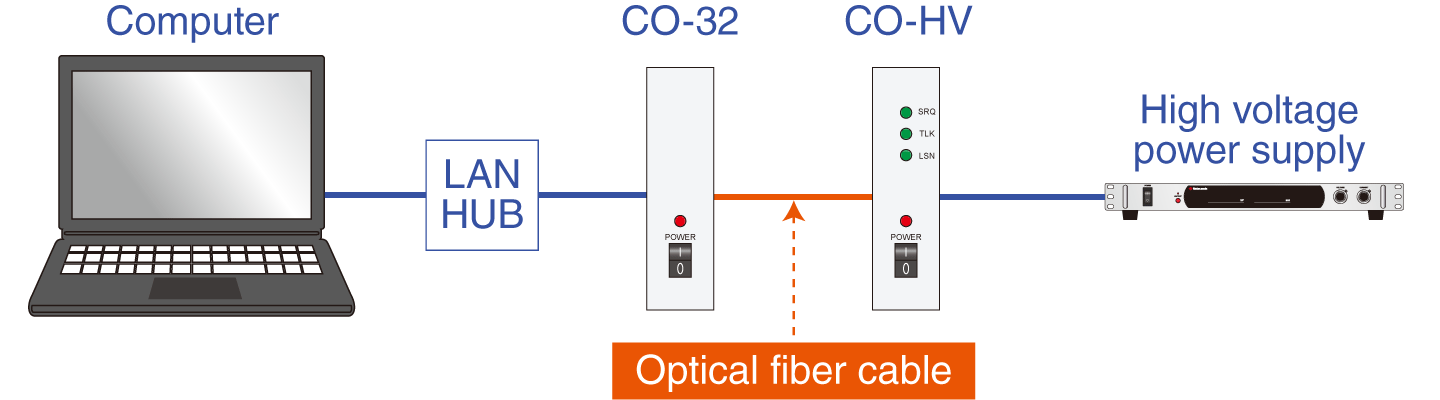

| Can be used via CO-HV | AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series |
| Interface specifications |
[LAN] RJ-45 port x1 IEEE802.3 version 2.0 compliant Network interface: 10BASE-T/100BASE-TX Protocol: TCP/IP, Telnet, DHCP, BOOTP, Auto IP, HTTP |
|---|---|
| Input voltage | 100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase |
| Withstand voltage | 1500 Vac/min, between the primary and secondary windings |
| AC input cable | 1.8 meters (flying lead) |
| Input voltage | 100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase |
| Withstand voltage | 1500 Vac/min, between the primary and secondary windings |
| AC input cable | 1.8 meters (flying lead) |
How to order
When ordering, add "-CE" to Model No.
Example: CO-E32-CE

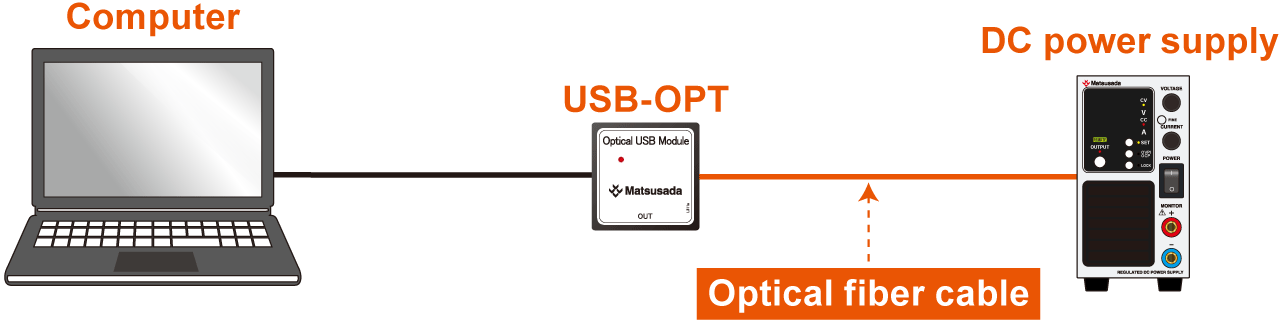

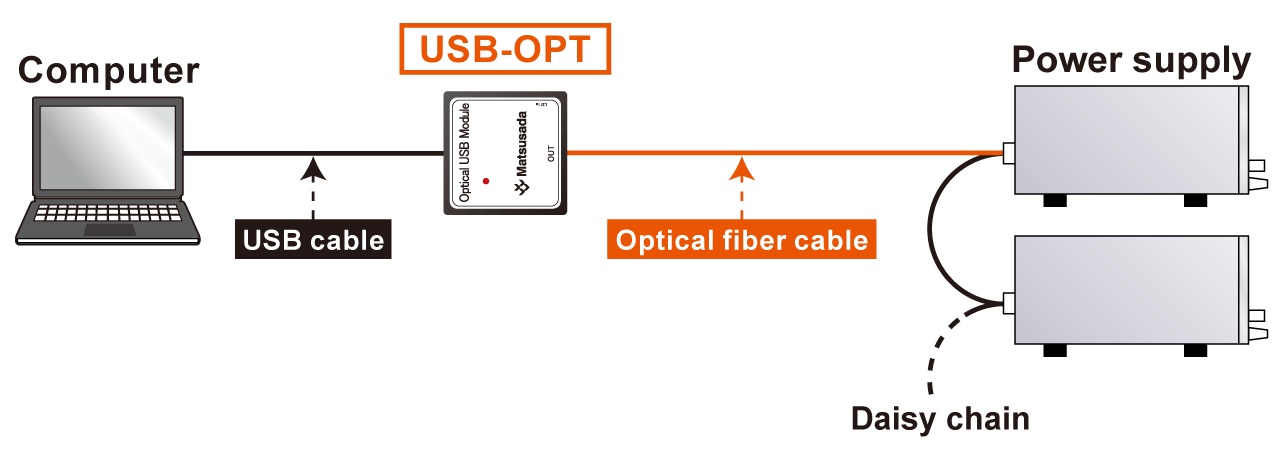

USB adapter for optical communication USB-OPT
This adapter is for controlling several power supplies with USB.
Up to 32 units in total can be connected to one USB-OPT.
| Can be used to connect directly | Models with optical interface option, -LGob |
|---|---|
| Can be used via CO-HV | AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series |
| Interface specifications |
[USB] Type-B port x1 USB1.1 compliant * Power from USB port |
|---|

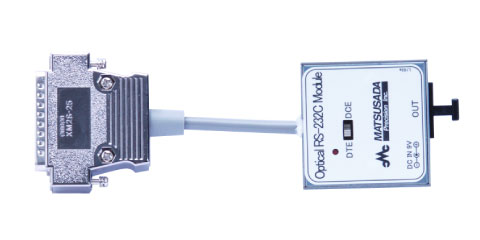

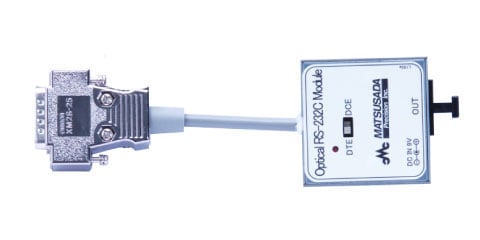

RS-232C adapter for optical communication CO-OPT2-9/CO-OPT2-25
This adapter is for control of several power supplies with RS-232C.

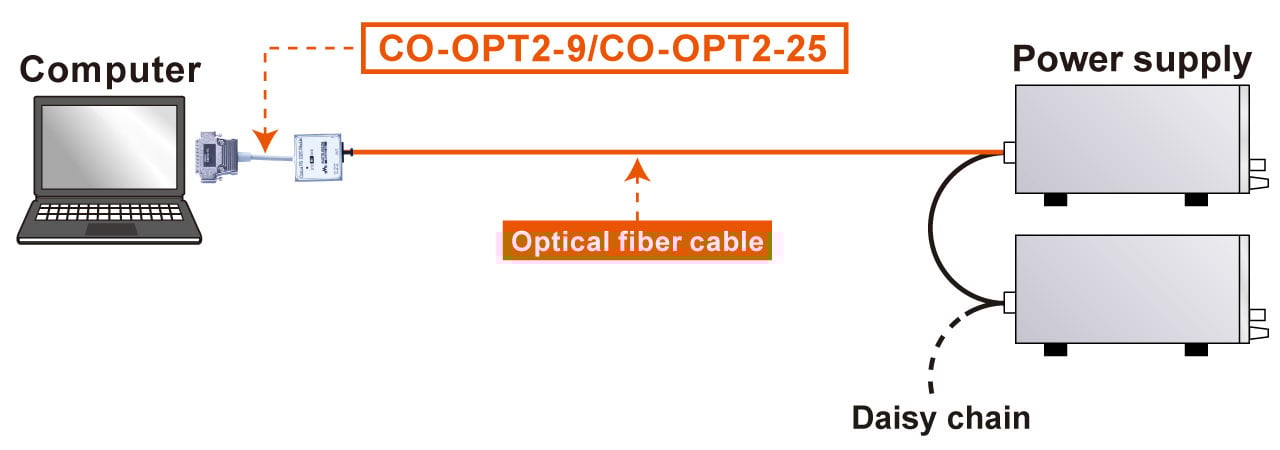

Up to 32 units in total can be connected to one CO-OPT2-9/CO-OPT2-25.
| Can be used to connect directly | Models with optical interface option, -LGob |
|---|---|
| Can be used via CO-HV | AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series |
| Interface specifications | [RS-232C] |
|---|---|
| Speed | Asynchronous 9600 bps (fixed) |
| Data length | 8 bits |
| Flow control | None |
| Stop bit | 1 bit |
| Parity | None |
| D-sub connector | 9 pins (female): Data input: PIN3, Data output: PIN2, GND: PIN5 |
| 25 pins (male): Data input: PIN2, Data output: PIN3, GND: PIN7 |
Options
- -L(#4)
-
inch screws of D-sub fixing screws (#4)
Applicable to CO-OPT2-25
How to order
Add Option No. to Model No. in alphabetical order.
Example: CO-OPT2-25-L(#4)

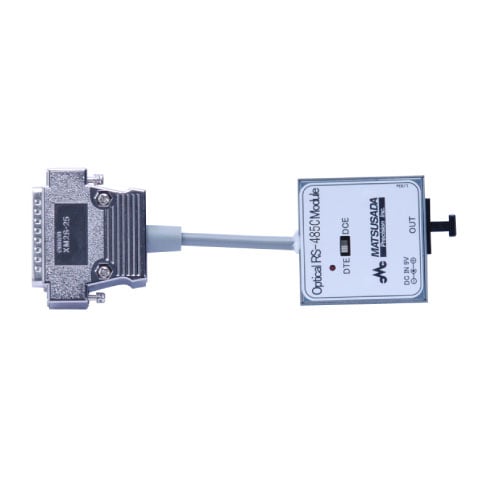

RS-485 adapter for optical communication CO-OPT4-25
This adapter is for control of several power supplies with RS-485.

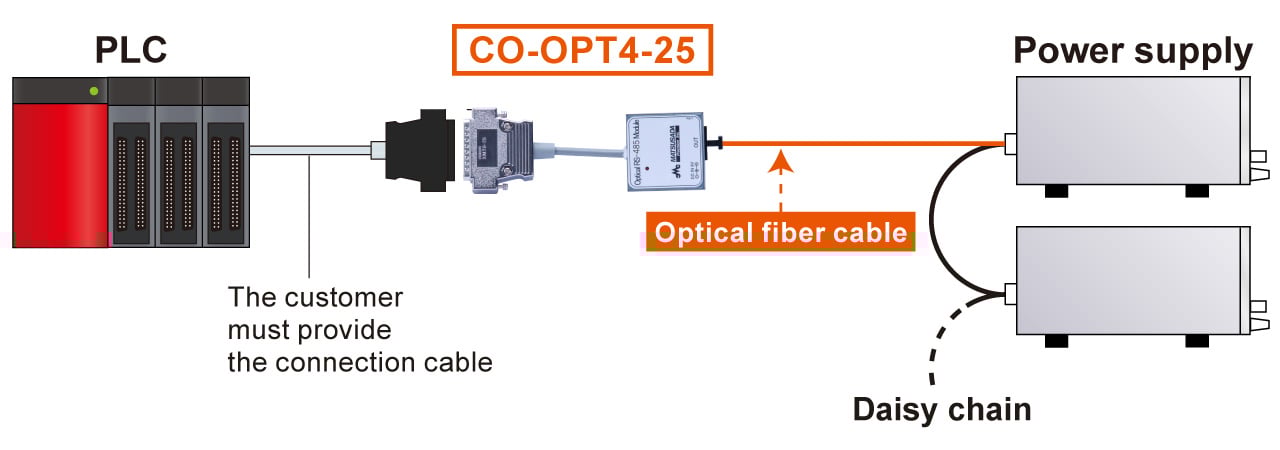

Up to 32 units in total can be connected to one CO-OPT4-25.
| Can be used to connect directly | Models with optical interface option, -LGob |
|---|---|
| Can be used via CO-HV | AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series |
| Interface specifications | [RS-485] |
|---|---|
| Speed | Asynchronous 9600 bps (fixed) |
| Data length | 8 bits |
| Parity | None |
| Stop bit | 1 bit |
| Flow control | None |
| D-sub connector |
25 pins (male) Data input +: PIN16 Data input -: PIN19 Data output +: PIN13 Data output -: PIN14 GND: PIN7 |
Options
- -L(#4)
-
inch screws of D-sub fixing screws (#4)
How to order
Add Option No. to Model No. in alphabetical order.
Example: CO-OPT2-25-L(#4)

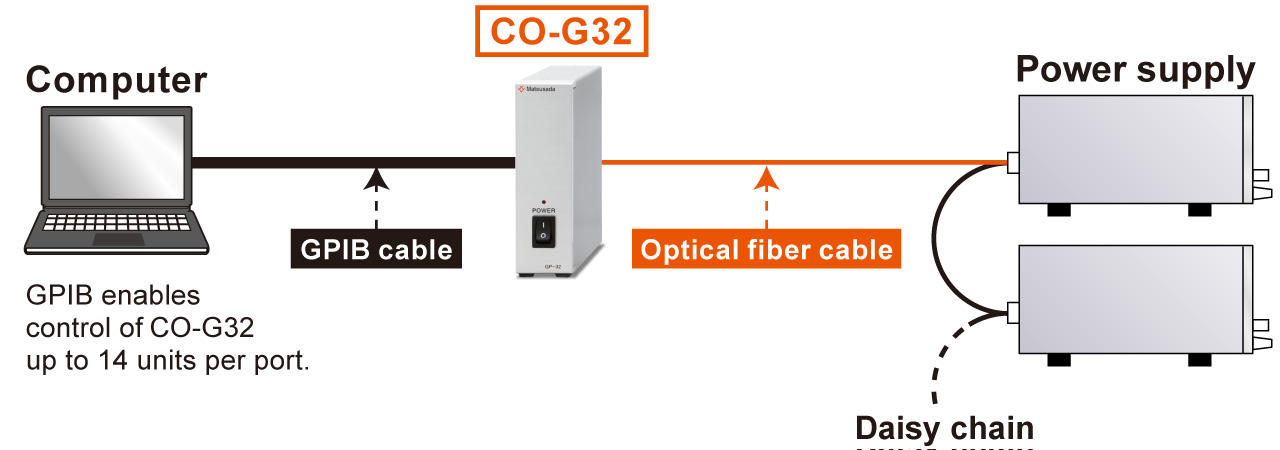

GPIB adapter for optical communication CO-G32 (Scheduled for discontinuation in December 2028)
This adapter is for control of several power supplies with GPIB.
Up to 32 units in total can be connected to one CO-G32.
| Can be used to connect directly | Models with optical interface option, -LGob |
|---|---|
| Can be used via CO-HV | AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series |
| Interface specifications | [GPIB] |
|---|---|
| Electrical specification | IEEE488-1978 compliant |
| Mechanical specification | IEEE488-1978 compliant |
| Interface function | SH1, AH1, L4, T6, SR1, RL0, PP0, DC1, DT0, C0 |
| Address setting | Desired address can be assigned from 0 to 30 with address switch. |
| Delimiter | Combination of EOI, CR and LF |
| Service request function | Indication of output status and shut off status of controlled power supply |
| Input voltage | 100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase |
| Withstand voltage | 1500 Vac/min, between the primary and secondary windings |
| AC input cable | 1.8 meters (flying lead) |
How to order
When ordering, add "-CE" to Model No.
Example: CO-G32-CE
DIGITAL COMMUNICATION ADAPTER

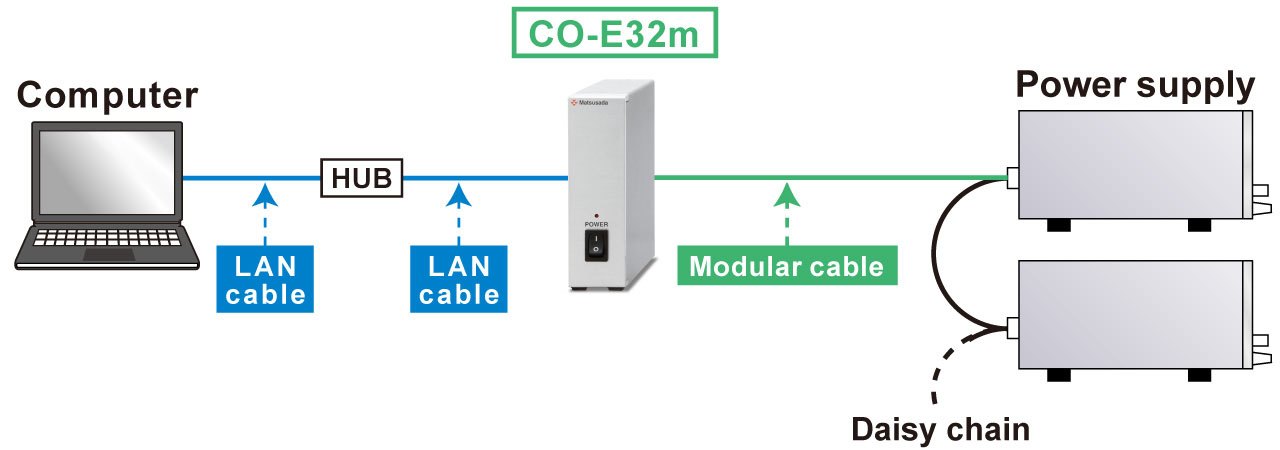

LAN adapter for digital communication CO-E32m
This adapter is for control of several power supplies with LAN.
Up to 16 units in total can be connected to one CO-E32m.
|
This communication adapter supports the following products with Matsusada Precision's original digital communication port |
R4K-36, R4K-80, RK, RKT, TB, REK/REKJ, PVCE, EGD, EGS, EHD, EZD, series |
|---|---|
| The following products are available to select -LGmb option with the adapter. | R4G, R4GT, RK-80, P4KF-80, CD, CDPU, DRS series |
| Interface specifications |
[LAN] RJ-45 port x1 IEEE802.3 version 2.0 compliant Network interface: 10BASE-T/100BASE-TX Protocol: TCP/IP, Telnet, DHCP, BOOTP, Auto IP, HTTP |
|---|---|
| Input voltage | 100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase |
| Withstand voltage | 1500 Vac/min, between the primary and secondary windings |
| AC input cable | 1.8 meters (flying lead) |
| Input voltage | 100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase |
| Withstand voltage | 1500 Vac/min, between the primary and secondary windings |
| AC input cable | 1.8 meters (flying lead) |
How to order
When ordering, add "-CE" to Model No.
Example: CO-E32m-CE

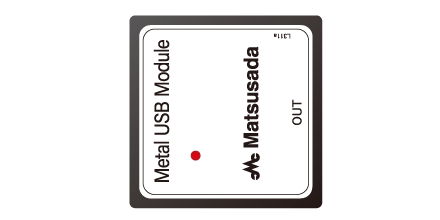

Adapter for connecting USB to digital interface, USB-MET/CO-U32m
This adapter is for controlling several power supplies with USB.

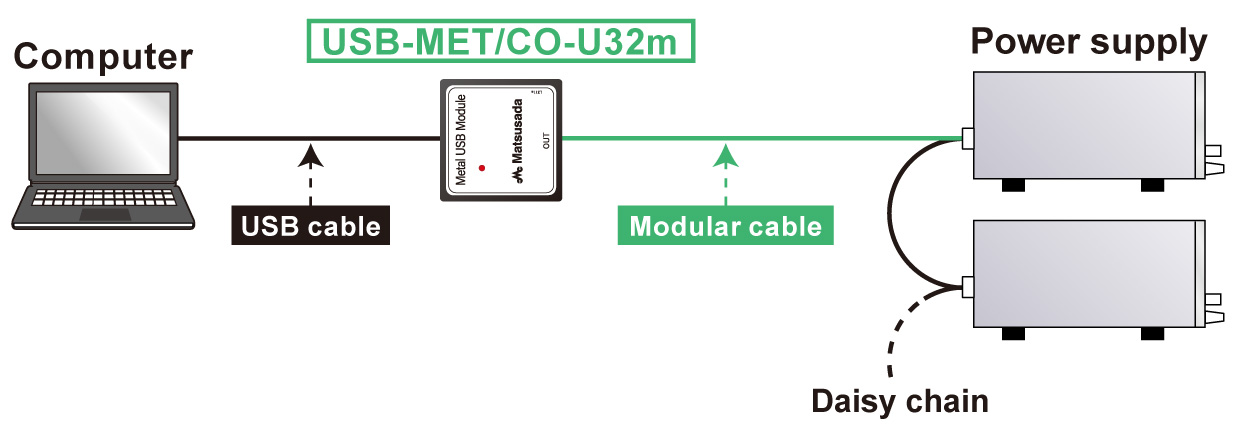

Up to 16 units in total can be connected to one CO-U32m.
|
This communication adapter supports the following products with Matsusada Precision's original digital communication port |
R4K-36, R4K-80, RK, RKT, TB, REK/REKJ, PVCE, EGD, EGS, EHD, EZD, series |
|---|---|
| The following products are available to select -LGmb option with the adapter. | R4G, R4GT, RK-80, P4KF-80, CD, CDPU, DRS series |
| Interface specifications (USB) |
Type-B port x1 USB1.1 compliant *Power from USB port |
|---|
| Interface specifications (USB) |
Type-B port x1 USB1.1 compliant |
|---|---|
| Input voltage | 100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase |
| Withstand voltage | 1500 Vac/min, between the primary and secondary windings |
| AC input cable | 1.8 meters (flying lead) |
| Input voltage | 100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase |
| Withstand voltage | 1500 Vac/min, between the primary and secondary windings |
| AC input cable | 1.8 meters (flying lead) |
How to order
When ordering, add "-CE" to Model No.
Example: CO-U32m-CE

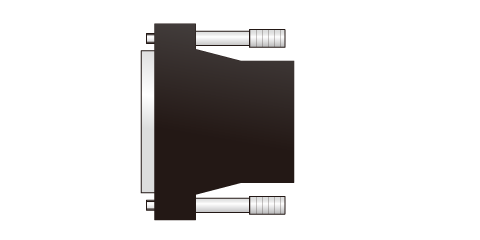

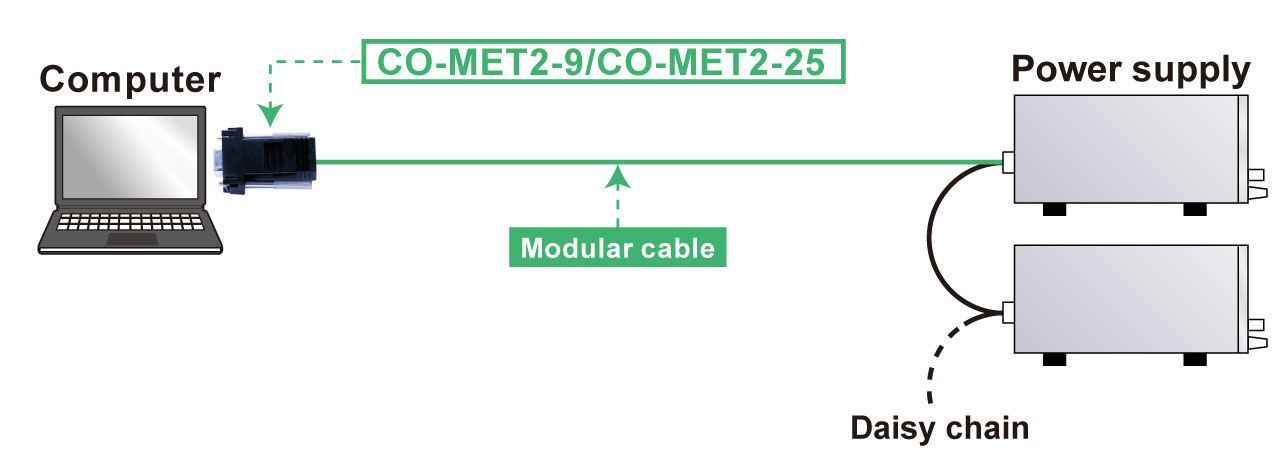

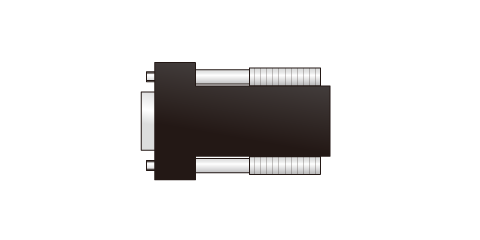

RS-232C adapter for digital communication CO-MET2-9/CO-MET2-25
This adapter is for control of several power supplies with RS-232C.
Up to 16 units in total can be connected to one CO-MET2-9/CO-MET2-25.
|
This communication adapter supports the following products with Matsusada Precision's original digital communication port |
R4K-36, R4K-80, RK, RKT, TB, REK/REKJ, PVCE, EGD, EGS, EHD, EZD, series |
|---|---|
| The following products are available to select -LGmb option with the adapter. | R4G, R4GT, RK-80, P4KF-80, CD, CDPU, DRS series |
| Interface specifications | [RS-232C] |
|---|---|
| Speed | Asynchronous 9600 bps (fixed) |
| Data length | 8 bits |
| Parity | None |
| Stop bit | 1 bit |
| Flow control | None |
|
D-sub connector * RS-232C cable is not provided. |
9 pins (female): Data input: PIN3, Data output: PIN2, GND: PIN5 |
| 25 pins (male): Data input: PIN2, Data output: PIN3, GND: PIN7 |

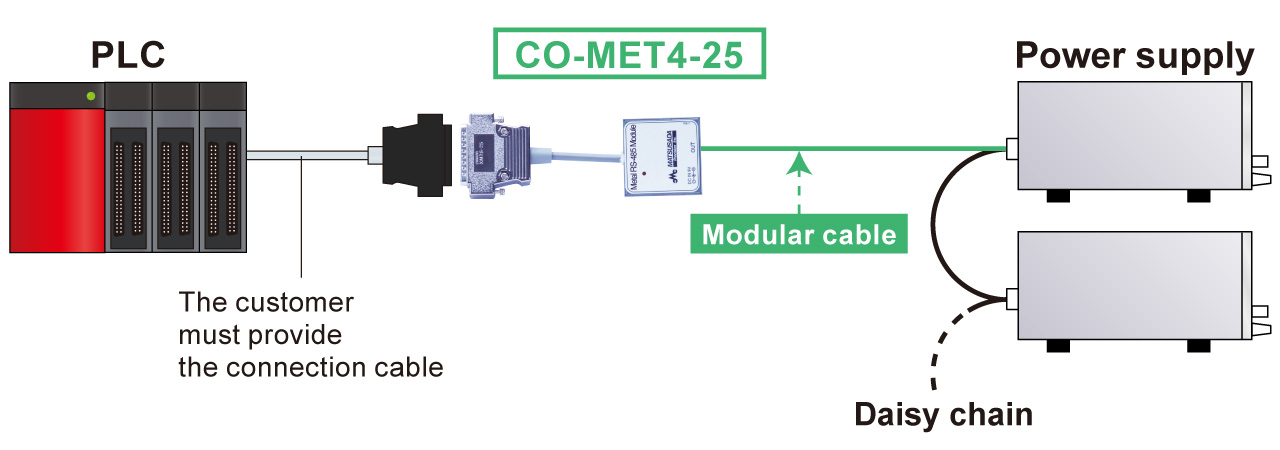

RS-485 adapter digital communication CO-MET4-25
This adapter is for control of several power supplies with RS-485.
Up to 16 units in total can be connected to one CO-MET4-25.
|
This communication adapter supports the following products with Matsusada Precision's original digital communication port |
R4K-36, R4K-80, RK, RKT, TB, REK/REKJ, PVCE, EGD, EGS, EHD, EZD, series |
|---|---|
| The following products are available to select -LGmb option with the adapter. | R4G, R4GT, RK-80, P4KF-80, CD, CDPU, DRS series |
| Interface specifications | [RS-485] |
|---|---|
| Speed | Asynchronous 9600 bps (fixed) |
| Data length | 8 bits |
| Parity | None |
| Stop bit | 1 bit |
| Flow control | None |
| D-sub connector |
25 pins (male) Data input +: PIN16 Data input -: PIN19 Data output +: PIN13 Data output -: PIN14 GND: PIN7 |
Options
- -L(#4)
inch screws of D-sub fixing screws (#4)
How to order
Add Option No. to Model No. in alphabetical order.
Example: CO-MET4-25-L(#4)
GPIB adapter for digital communication CO-G32m (Scheduled for discontinuation in December 2028)
This adapter is for control of several power supplies with GPIB.
Up to 16 units in total can be connected to one CO-G32m.
|
This communication adapter supports the following products with Matsusada Precision's original digital communication port |
R4K-36, R4K-80, RK, RKT, TB, REK/REKJ, PVCE, EGD, EGS, EHD, EZD, series |
|---|---|
| The following products are available to select -LGmb option with the adapter. | R4G, R4GT, RK-80, P4KF-80, CD, CDPU, DRS series |
| Interface specifications | [GPIB] |
|---|---|
| Electrical specification | IEEE488-1978 compliant |
| Mechanical specification | IEEE488-1978 compliant |
| Interface function | SH1, AH1, L4, T6, SR1, RL0, PP0, DC1, DT0, C0 |

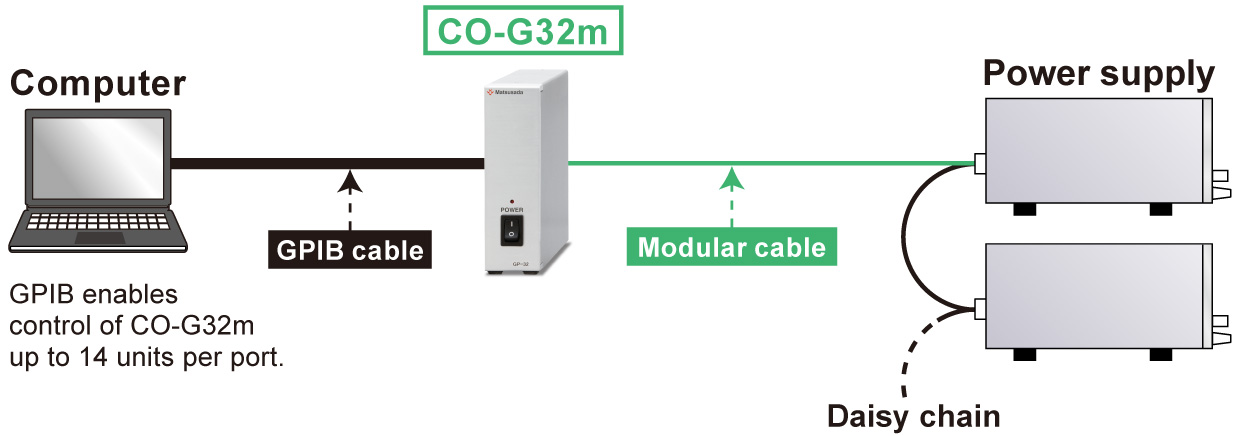

| Address setting | Desired address can be assigned from 0 to 30 with address switch. |
| Delimiter | Combination of EOI, CR and LF |
| Service request function | Indication of output status and shut off status of controlled power supply |
| Input voltage | 100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase |
| Withstand voltage | 1500 Vac/min, between the primary and secondary windings |
| AC input cable | 1.8 meters (flying lead) |
How to order
When ordering, add "-CE" to Model No.
Example: CO-G32m-CE
DIGITAL CONVERTER FOR ANALOG CONTROL POWER SUPPLIES
for Analog control high voltage power supplies CO-HV
This adapter is the ideal system for use when "There is the distance between high voltage power supply and computer, used under noisy environment", "Connect Low voltage power supply units".
| AU, AUH, AK, AKP, XPg, XKg, AE, ES, W, WA, K12-R, XR series |
Options
- -L(Fc0.5)
Change length optical fiber cable to 0.5 meters
- -L(Fc5)
Change length optical fiber cable to 5 meters
- -L(Fc10)
- Change length optical fiber cable to 10 meters
- -L(Fc20)
- Change length optical fiber cable to 20 meters
- -L(Fc40)
- Change length optical fiber cable to 40 meters
How to order
- For no options
-
When ordering, add the dedicated control cable name to Model No.
Example: CO-HV(with CO-AU cable)
- For options
-
When ordering, add Option No. to the Model No in alphabetical order, and finally the dedicated control cable.
Example: CO-HV-L(Fc10)(with CO-AU cable)
- For CE marking
-
When ordering, add the dedicated control cable name to the Model No, and finally "-CE".
Example: CO-HV(with CO-AU cable) -CE
- For CE marking with options
-
When ordering, add Option No. to the Model No. in alphabetical order, and finally the dedicated control cable name and “-CE”.
Example: CO-HV-L(Fc10)(with CO-AU cable) -CE
Optional program SWEEP CONTROL
This program is used to gradually change the output of DC power supplies and high voltage power supplies that can be controlled by our power supply digital controller CO-HV series. Any settings are provided for the voltage/current values when the output starts and reaches, and after the output starts. Following that, the output is activated accordingly.
It is very convenient for such applications like transformation process of the capacitor, aging of electronic components and burn-in testing of semi-conductor etc. where it is necessary to repeat the output by changing the output gently and a decided pattern.
Features and Benefits
- Fine setting of output voltage and output current is available by high-resolution 16-bit.
- Each voltage value and each current value can be set individually.
- LAN, USB, RS-232C, RS-485 and GPIB communication are available.
Available models
- CO-HV (High Voltage power supply digital controller)
How to order
To order, add "(s)" after the available Model No.
Example: CO-HV(s) (with CO-AU cable)
Dimensions
Download
If you are unable to download a file
Please try the following solution.
- Please press Ctrl+F5 to clear the cache of your web browser and try again.
- Please restart your web browser and log in again to try again.
- Please change your web browser to another browser and try again.
- Restart the computer and try again.
- Please try again on a different computer.
-
CO/USB series Datasheet
Date: 2025-11-12 Rev 28
PDF (2,546 KB)
-
CO/USB Instruction Manual
Date: 2021-1-25 rev. 1.5
PDF (1,806 KB)
-
CO-G32m/CO-U32m/CO-E32m Instruction Manual
Date: 2023/7/24 rev 0.4
PDF (1,321 KB)
-
CO series USB Driver
Date: 2025-01-22 rev 1.7.6
ZIP (6,504 KB)
-
CO-HV 3D MODELS (STEP, IGES)
Date: 2025-07-22
ZIP (1,394 KB)
-
CO-OPT2-9 3D MODELS (STEP, IGES)
Date: 2025-07-22
ZIP (527 KB)
Login Required
-
CO/USB series Datasheet
Date: 2025-11-12 Rev 28
PDF (2,546 KB)
-
CO/USB Instruction Manual
Date: 2021-1-25 rev. 1.5
PDF (1,806 KB)
-
CO-G32m/CO-U32m/CO-E32m Instruction Manual
Date: 2023/7/24 rev 0.4
PDF (1,321 KB)
-
CO series USB Driver
Date: 2025-01-22 rev 1.7.6
ZIP (6,504 KB)
-
CO-HV 3D MODELS (STEP, IGES)
Date: 2025-07-22
ZIP (1,394 KB)
-
CO-OPT2-9 3D MODELS (STEP, IGES)
Date: 2025-07-22
ZIP (527 KB)
On this website, we provide only the latest versions of information and instruction manuals for our products. Therefore, the newest versions of manuals on the website may differ from those that came with products you purchased in the past.
