INPUT/OUTPUT PROPORTIONAL HIGH VOLTAGE POWER SUPPLY
- Output voltage: 0.3 to 6kV
- Input voltgage: 1.5 to 12Vdc
- Output current: 0.5 to 10mA
- Output power: 3 W
INPUT/OUTPUT PROPORTIONAL, MINIATURE PCB MOUNTABLE HIGH VOLTAGE DC-DC CONVERTER MODULE
The URS series is a compact, high-performance PCB-mountable high voltage power supply. With input-output isolation, it allows for fully floating operation, enabling use with either polarity.
FEATURES
- Compact, PCB-mountable design
- High performance, Low ripple
- Input/Output proportional
- Input/Output isolation
APPLICATIONS
- Photomultiplier Tubes (PMTs)
- Ionization chambers
- High voltage biasing
- Electrostatic chuck (E-chuck, ESC)
Models
Unless otherwise specified, the specifications are defined at the maximum rated output after two hours of warm-up and apply to output ranges from 10% to 100% of the maximum rating.
| Model | Output | Rated load | Ripple | Input | Insulation | ||
|---|---|---|---|---|---|---|---|
| Voltage range [Vdc] | Current | Voltage [Vdc] | Input Current (typical) | Input/Output [Vdc] | |||
| URS-0.3PN | 0.03 to 0.3 kV | 10 mA | 0.03 MΩ | 0.02%p-p | 1.5 to 12 V | 380 mA | 2000 V |
| URS-0.6PN | 0.04 to 0.6 kV | 5 mA | 0.12 MΩ | 0.02%p-p | |||
| URS-1.1PN | 0.08 to 1.1 kV | 2.75 mA | 0.4 MΩ | 0.03%p-p | |||
| URS-1.5PN | 0.1 to 1.5 kV | 2 mA | 0.75 MΩ | 0.03%p-p | |||
| URS-2PN | 0.15 to 2 kV | 1.5 mA | 1.3 MΩ | 0.1%p-p | |||
| URS-3PN | 0.2 to 3 kV | 1 mA | 3 MΩ | 0.1%p-p | 1.5 to 15 V | 3000 V | |
| URS-5PN | 0.25 to 5 kV | 0.6 mA | 8 MΩ | 0.2%p-p | 5000 V | ||
| URS-6PN | 0.4 to 6 kV | 0.5 mA | 12 MΩ | 0.2%p-p | 6000 V | ||
Specifications
- Input voltage
- 1.5 to 12 Vdc, 1.5 to 15 Vdc
- Output voltage control
- The output voltage is proportional to the input voltage (I/O Proportional)
For details, download the datasheet below.

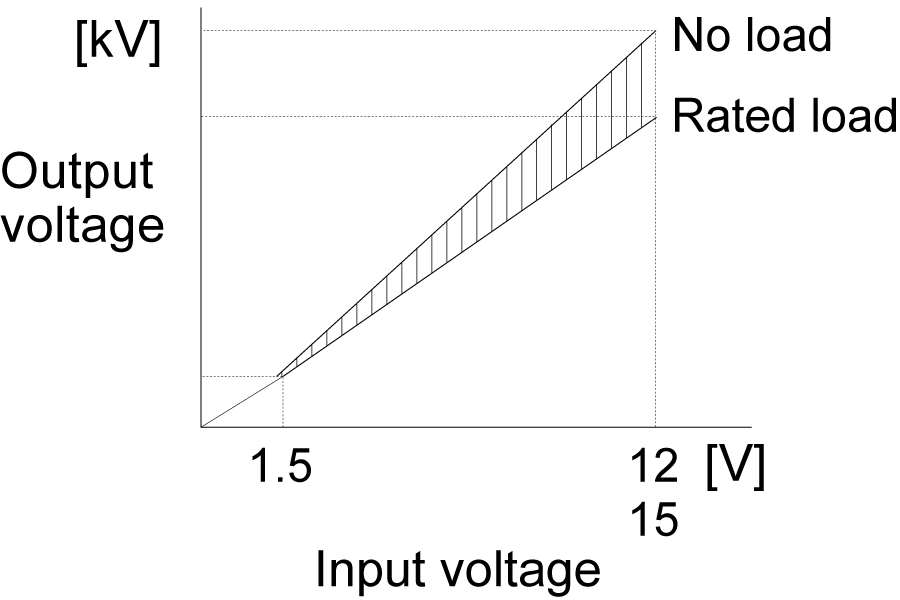

Input/Output proportional characteristic
Options
- -LMb
-
Metal shield cover (0.3 kV to 2 kV models only)
Attached five-sided metal shield cover
How to order
* When ordering, add the Option No. to Model No.
<Example> URS-1.5PN-LMb
Diagram

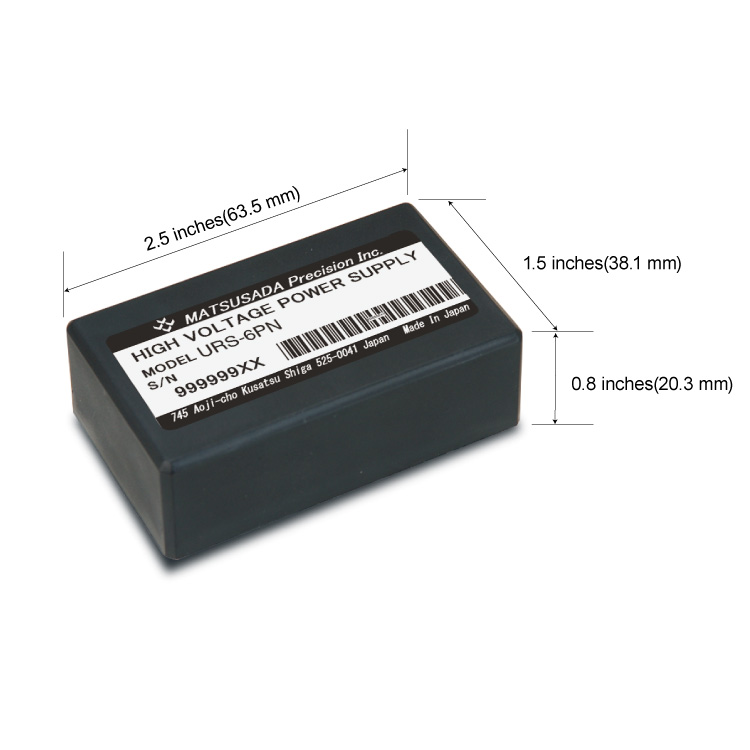

Dimensions
63.5 x 38.1 x 20.3mm (2.50" x 1.50" x 0.80")
For details, download the datasheet below.
