HIGH-VOLTAGE PULSE GENERATOR
Achieves high-speed operation with 50kHz repetition frequency
- Max Voltage: 10 kV
- Max Current: 10 mA avg.
- Repetition frequency: 50 kHz
Ideal for high-voltage pulse power applications
The SKS Series is a high-speed, high-voltage pulse generator featuring a repetition frequency of up to 50 kHz. Leveraging Matsusada Precision's expertise in high-voltage technology, this solid-state system offers high reliability in a compact design. It is ideally suited for applications such as electron beam and ion beam modulation.
Features and Benefits
- Achieves high speed operation with 50 kHz repetition frequency
- High-power design capable of driving low-impedance loads
- All solid state for high reliability and long life
- Small size and lightweight design
Applications
- Power device withstand voltage testing
- Electronic shutter operation
- Insulation material testing
- Electron gun driving
- Dielectric Barrier Discharge (DBD) experiments
- Gate electrode driving
Models
Positive polarity output
| Model | Output voltage |
|---|---|
| SKS-10P | +10 kV |
Negative polarity output
| Model | Output voltage |
|---|---|
| SKS-10N | -10 kV |
* Note: A dedicated external high-voltage power supply is included with the system.
Specifications
- Input voltage
- 115 Vac ±10％ (103.5 to 126.5 Vac), 50/60 Hz, Single phase
- Output voltage setting
- [Local] 10-turn potentiometer on the front panel
Options
- -L(230V)
-
Input voltage 200 Vac to 240 Vac, Single phase 50 Hz/60 Hz
How to Order
Please add the option code to the model number when ordering.
Example: SKS-10P-L(230V)
Accessories
Function Generator
Dimensions
Download
If you are unable to download a file
Please try the following solution.
- Please press Ctrl+F5 to clear the cache of your web browser and try again.
- Please restart your web browser and log in again to try again.
- Please change your web browser to another browser and try again.
- Restart the computer and try again.
- Please try again on a different computer.
-

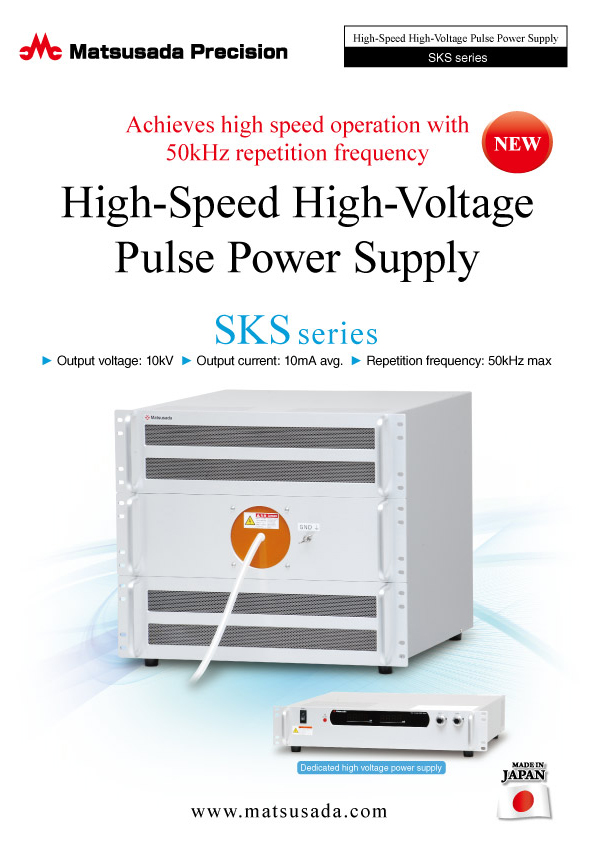

SKS series Datasheet
