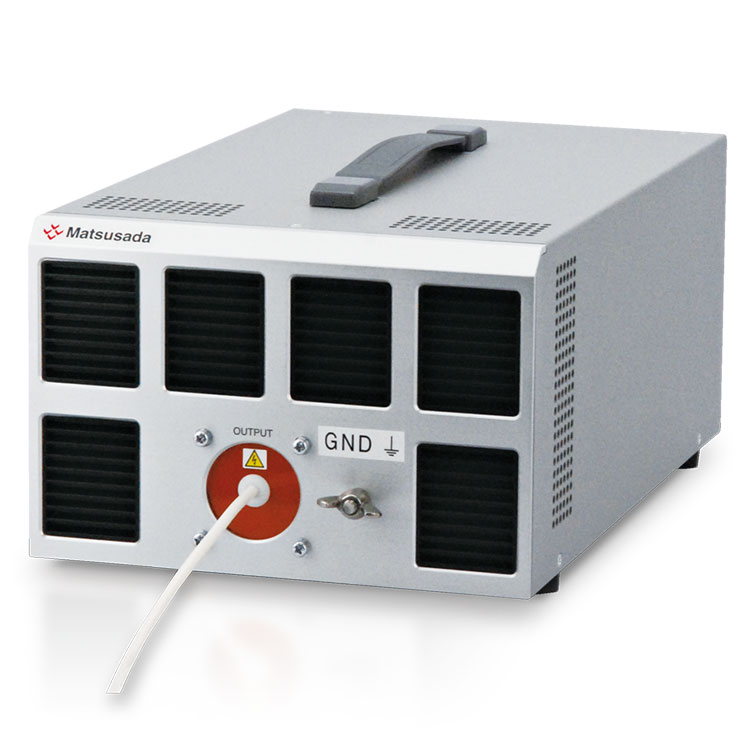

HIGH VOLTAGE PULSE GENERATOR
Perfect for Pulse Impression with High Speed to Scanning Electron Microscope (SEM), Mass Spectrometry (MS), Electrodes of Microchannel Plate (MCP), etc.
- Max Voltage: 0.3kV to 10kV
- Rise time of pulse voltage: 15ns
- High speed response
- Perfect for Pulse Impression
These are perfect for High Speed and High Voltage Pulse Impression to Electron Microscope, Mass Spectrometry, Microchannel Plate Electrodes, etc.
SK series are ultra-high speed and high power pulse power supplies developed with our technology and know-how as a professional manufacturer of high voltage power supply.
They are best-fitted power supplies for a high-speed impression of pulse in the wide fields such as defection of electron beam and ion beam or measurement of radiated light, Photomultiplier Tube (PMT) and MCP.
Features and Benefits
- High speed response
- High-power design suitable for low-impedance applications
- High reliability and long life with all solid-state
- Ultra compact and lightweight design
- Wide lineup of 0.3 kV to 10 kV. Selectable best-fitted model according to its usage
Applications
- Time-of-Flight Mass Spectrometry (TOF-MS)
- Microchannel Plate (MCP)
- Electronic shutter
- Bio-chip
- Inspection of insulating material
- Electronic gun
- Various gate electrodes
Models
* For models 5 kV and larger, the dedicated high-voltage power supply is included as an external power supply.
Specifications
- Input voltage
- 115 Vac ±10％ (103.5 to 126.5 Vac), 50/60 Hz, Single phase
- Output voltage setting
- [Local] 10-turn potentiometer on the front panel
Options
- -L(230V)
-
Input voltage: 200 Vac to 240 Vac ±10%, single phase, 50 Hz/60 Hz
How to Order
When ordering, add Option No. to Model No.
<Example> SK-0.3P-L(230V)
Accessories
- Function Generator
-
Dimensions
