E-Chuck High Voltage Power Supply
positive/negative bipolar high-voltage output, dual-channel Unit type
- ±0.5kV to ±5kV
- 2W to 10W
- ±500V lineup
- RF filter as standard
COMPACT HIGH VOLTAGE POWER SUPPLY FOR E-CHUCK APPLICATION
The Matsusada Precision ECU series is a compact high-voltage power supply designed specifically for electrostatic chuck (E-Chuck) applications. It offers dual-channel outputs with voltages ranging from ±0.5kV to ±5kV and power ratings from 2W to 10W. Key features include output reversibility, grounding function for smooth release, integrated RF filter, and multiple control options (local, remote, or RS-232C). The series is available in various models with different voltage and current specifications. It's equipped with output ON/OFF and polarity reverse functions for smooth chuck and de-chuck operations. The ECU series is ideal for applications requiring precise control of electrostatic chucks in semiconductor manufacturing and research environments.
FEATURES AND BENEFITS
- Designed for Electrostatic Chuck (E-Chuck, ESC) application
- Dual-channel bipolar output
- Reversible output and grounding function for smooth wafer release
- RF filter integrated
- Local, Remote, or RS-232C controlled
MAIN APPLICATION
Models
More high voltage models are available. Contact nearby sales office.
| Models | Maximum Output | |
|---|---|---|
| Voltage [kV] | Current [mA] | |
| ECU-0.5PN10 (R) | 0 to ±0.5 kV | 10 mA |
| ECU-1PN3 (R) | 0 to ±1 kV | 3 mA |
| ECU-1.5PN2 (R) | 0 to ±1.5 kV | 2 mA |
| ECU-2PN1 (R) | 0 to ±2 kV | 1 mA |
| ECU-2PN3 (R) | 0 to ±2 kV | 3 mA |
| ECU-4PN1 (R) | 0 to ±4 kV | 1 mA |
| ECU-5PN2 (R) | 0 to ±5 kV | 2 mA |
Specifications
- Input voltage
- 24 Vdc ±5% (22.8 to 25.2 Vdc)
- Output voltage control
-
[Local] Setting knob on the front panel
[Analog remote] External control voltage 0 to 10 V
[Digital remote] Command
For details, download the datasheet below.

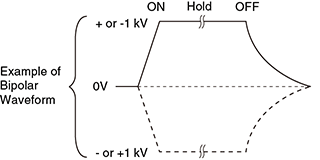

Waveform example
Output voltage setting characteristics
Options
- -L(7m)
-
High-voltage output cables with HV-BNC connectors on both ends, 7 meters in length (2 cables)
How to Order
When ordering, add the Option No. to the Model No.
Example: ECU-0.5PN10(R) -L(7m)
Accessories
| Standard | CN-BNC-HVPP(5) * |  MHV connector on both end |
5 meters (Specified length available) |
|---|
*: Standard is "(5)". It will be "(7)" when selected -L(7m) option.
