PROPORTIONAL TYPE, PCB MOUNTABLE HIGH VOLTAGE POWER SUPPLY
- Voltage range: 0.3 to 10 kV
- Current: 0.05 to 1.6 mA
- Power: 0.5 W
- Control: I/O Proportional
Ultra-compact 1/2-inch cube PCB-mount power supply
The URT series consists of ultra-compact, PCB-mount high-voltage power supplies featuring a standard 1/2-inch cube form factor. These modules utilize an input/output proportional control method, making them easy to integrate into compact systems. The 0.3 kV and 0.5 kV models are designed as floating power supplies, allowing for reversible polarity operation.
Input voltage is selectable from 5 V, 12 V, or 24 V, supporting a wide range of applications, including battery-powered equipment.
FEATURES AND BENEFITS
- Ultra-compact PCB-mount design
- High performance with low ripple (0.2% p-p for models up to 2 kV)
- Input/Output proportional control
- Input/Output isolation
- CE marking (Low Voltage Directive)
APPLICATIONS
Models
| Model | Output | Rated load [MΩ] |
Ripple [%p-p] |
Input | Insulation | ||
|---|---|---|---|---|---|---|---|
| Voltage [kVdc] |
Current [mA] |
Voltage [Vdc] |
Current Typ [mA] (typ) |
Max floating Voltage [Vdc] |
|||
| URT-1P-5 | 0.16 to 1.0 kV | 0.5 mA | 2 MΩ | 0.20 | 0.8 to 5 V | 175 mA | ±500 V |
| URT-1P-12 | 0.07 to 1.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-1P-24 | 0.04 to 1.0 kV | 0.8 to 24 V | 50 mA | ||||
| URT-1.2P-5 | 0.20 to 1.2 kV | 0.4 mA | 3 MΩ | 0.20 | 0.8 to 5 V | 175 mA | |
| URT-1.2P-12 | 0.08 to 1.2 kV | 0.8 to 12 V | 100 mA | ||||
| URT-1.2P-24 | 0.04 to 1.2 kV | 0.8 to 24 V | 50 mA | ||||
| URT-1.5P-5 | 0.24 to 1.5 kV | 0.3 mA | 5 MΩ | 0.20 | 0.8 to 5 V | 175 mA | |
| URT-1.5P-12 | 0.10 to 1.5 kV | 0.8 to 12 V | 100 mA | ||||
| URT-1.5P-24 | 0.05 to 1.5 kV | 0.8 to 24 V | 50 mA | ||||
| URT-2P-5 | 0.32 to 2.0 kV | 0.25 mA | 8 MΩ | 0.20 | 0.8 to 5 V | 175 mA | |
| URT-2P-12 | 0.14 to 2.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-2P-24 | 0.07 to 2.0 kV | 0.8 to 24 V | 50 mA | ||||
| URT-3P-5 | 0.48 to 3.0 kV | 0.16 mA | 18.7 MΩ | 0.30 | 0.8 to 5 V | 175 mA | |
| URT-3P-12 | 0.20 to 3.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-3P-24 | 0.10 to 3.0 kV | 0.8 to 24 V | 50 mA | ||||
| URT-5P-5 | 0.80 to 5.0 kV | 0.1 mA | 50 MΩ | 0.40 | 0.8 to 5 V | 250 mA | |
| URT-5P-12 | 0.34 to 5.0 kV | 0.8 to 12 V | 150 mA | ||||
| URT-5P-24 | 0.17 to 5.0 kV | 0.8 to 24 V | 75 mA | ||||
| URT-6P-5 | 0.96 to 6.0 kV | 0.083 mA | 72 MΩ | 0.50 | 0.8 to 5 V | 175 mA | |
| URT-6P-12 | 0.40 to 6.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-6P-24 | 0.20 to 6.0 kV | 0.8 to 24 V | 50 mA | ||||
| URT-8P-5 | 1.28 to 8.0 kV | 0.063 mA | 127 MΩ | 0.50 | 0.8 to 5 V | 175 mA | |
| URT-8P-12 | 0.54 to 8.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-8P-24 | 0.27 to 8.0 kV | 0.8 to 24 V | 50 mA | ||||
| URT-10P-5 | 1.60 to 10.0 kV | 0.05 mA | 200 MΩ | 0.50 | 0.8 to 5 V | 175 mA | |
| URT-10P-12 | 0.67 to 10.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-10P-24 | 0.34 to 10.0 kV | 0.8 to 24 V | 50 mA | ||||
| Model | Output | Rated load [MΩ] |
Ripple [%p-p] |
Input | Insulation | ||
|---|---|---|---|---|---|---|---|
| Voltage [kVdc] |
Current [mA] |
Voltage [Vdc] |
Current Typ [mA] (typ) |
Max floating Voltage [Vdc] |
|||
| URT-1N-5 | -0.16 to -1.0 kV | 0.5 mA | 2 MΩ | 0.20 | 0.8 to 5 V | 175 mA | ±500 V |
| URT-1N-12 | -0.07 to -1.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-1N-24 | -0.04 to -1.0 kV | 0.8 to 24 V | 50 mA | ||||
| URT-1.2N-5 | -0.20 to -1.2 kV | 0.4 mA | 3 MΩ | 0.20 | 0.8 to 5 V | 175 mA | |
| URT-1.2N-12 | -0.08 to -1.2 kV | 0.8 to 12 V | 100 mA | ||||
| URT-1.2N-24 | -0.04 to -1.2 kV | 0.8 to 24 V | 50 mA | ||||
| URT-1.5N-5 | -0.24 to -1.5 kV | 0.3 mA | 5 MΩ | 0.20 | 0.8 to 5 V | 175 mA | |
| URT-1.5N-12 | -0.10 to -1.5 kV | 0.8 to 12 V | 100 mA | ||||
| URT-1.5N-24 | -0.05 to -1.5 kV | 0.8 to 24 V | 50 mA | ||||
| URT-2N-5 | -0.32 to -2.0 kV | 0.25 mA | 8 MΩ | 0.20 | 0.8 to 5 V | 175 mA | |
| URT-2N-12 | -0.14 to -2.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-2N-24 | -0.07 to -2.0 kV | 0.8 to 24 V | 50 mA | ||||
| URT-3N-5 | -0.48 to -3.0 kV | 0.16 mA | 18.7 MΩ | 0.30 | 0.8 to 5 V | 175 mA | |
| URT-3N-12 | -0.20 to -3.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-3N-24 | -0.10 to -3.0 kV | 0.8 to 24 V | 50 mA | ||||
| URT-5N-5 | -0.80 to -5.0 kV | 0.1 mA | 50 MΩ | 0.40 | 0.8 to 5 V | 250 mA | |
| URT-5N-12 | -0.34 to -5.0 kV | 0.8 to 12 V | 150 mA | ||||
| URT-5N-24 | -0.17 to- 5.0 kV | 0.8 to 24 V | 75 mA | ||||
| URT-6N-5 | -0.96 to -6.0 kV | 0.083 mA | 72 MΩ | 0.50 | 0.8 to 5 V | 175 mA | |
| URT-6N-12 | -0.40 to -6.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-6N-24 | -0.20 to -6.0 kV | 0.8 to 24 V | 50 mA | ||||
| URT-8N-5 | -1.28 to -8.0 kV | 0.063 mA | 127 MΩ | 0.50 | 0.8 to 5 V | 175 mA | |
| URT-8N-12 | -0.54 to -8.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-8N-24 | -0.27 to -8.0 kV | 0.8 to 24 V | 50 mA | ||||
| URT-10N-5 | -1.60 to -10.0 kV | 0.05 mA | 200 MΩ | 0.50 | 0.8 to 5 V | 175 mA | |
| URT-10N-12 | -0.67 to -10.0 kV | 0.8 to 12 V | 100 mA | ||||
| URT-10N-24 | -0.34 to- 10.0 kV | 0.8 to 24 V | 50 mA | ||||
| Model | Output | Rated load [MΩ] |
Ripple [%p-p] |
Input | Insulation | ||
|---|---|---|---|---|---|---|---|
| Voltage [kVdc] |
Current [mA] |
Voltage [Vdc] |
Current Typ [mA typ.] |
Max floating Voltage [Vdc] |
|||
| URT-0.3PN-5 | 0.05 to 0.3 kV / -.05 to -0.3 kV |
1.6 mA | 0.187 MΩ | 0.08 | 0.8 to 5 V | 175 mA | ±500 V |
| URT-0.3PN-12 | 0.02 to 0.3 kV / -0.02 to -0.3 kV |
0.08 | 0.8 to 12 V | 100 mA | |||
| URT-0.3PN-24 | 0.01 to 0.3 kV / -0.01 to -0.3 kV |
0.08 | 0.8 to 24 V | 50 mA | |||
| URT-0.5PN-5 | 0.08 to 0.5 kV / -0.08 to -0.5 kV |
1.0 mA | 0.5 MΩ | 0.08 | 0.8 to 5 V | 175 mA | |
| URT-0.5PN-12 | 0.04 to 0.5 kV / -0.04 to -0.5 kV |
0.08 | 0.8 to 12 V | 100 mA | |||
| URT-0.5PN-24 | 0.02 to 0.5 kV / -0.02 to -0.5 kV |
0.08 | 0.8 to 24 V | 50 mA | |||
Specifications
- Input voltage
- 0.8 to 5 Vdc, 0.8 to 12 Vdc, 0.8 to 24 Vdc
- Output voltage control
- The output voltage is proportional to the input voltage (I/O Proportional)
Options
- -LMb
-
Metal shield cover (available for models up to 2 kV)
Supplied with a five-sided metal shield to enhance noise immunity.
How to order
When ordering, add Option No. to Model No.
Diagram
Connection diagram
Dimensions
12.7 x 12.7 x 12.7mm (0.50" x 0.50" x 0.50")
21.6 x 21.6 x 21.6mm (0.85" x 0.85" x 0.85")
For details, download the datasheet below.
Download
If you are unable to download a file
Please try the following solution.
- Please press Ctrl+F5 to clear the cache of your web browser and try again.
- Please restart your web browser and log in again to try again.
- Please change your web browser to another browser and try again.
- Restart the computer and try again.
- Please try again on a different computer.
-

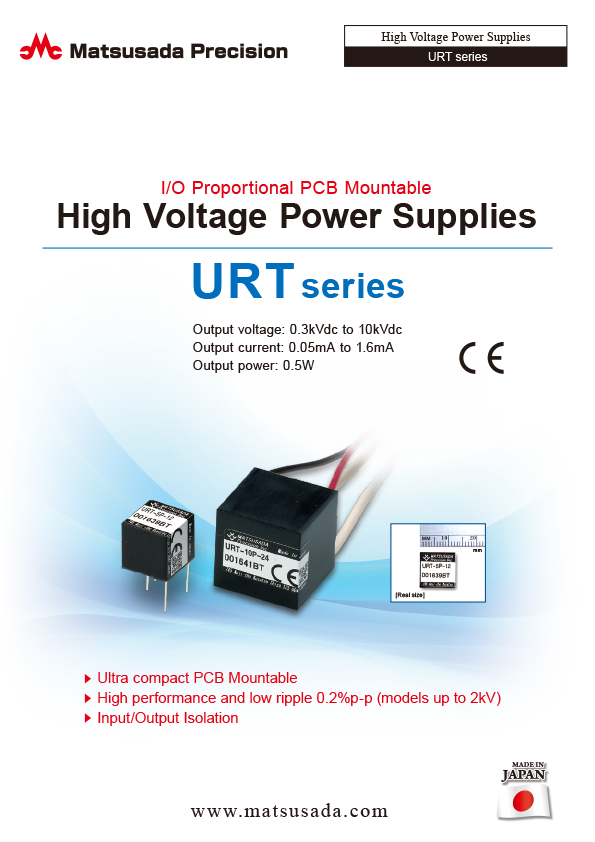

URT series Datasheet
