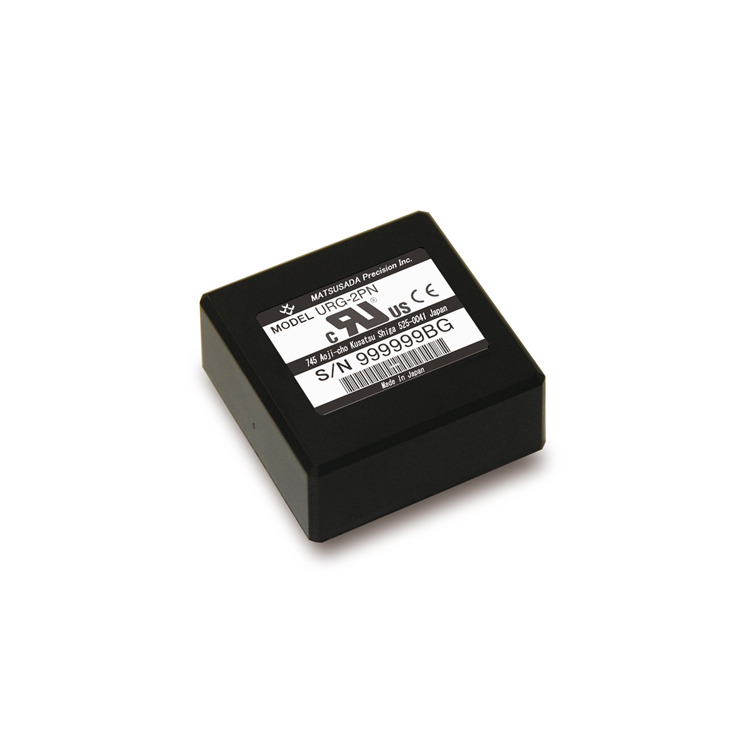

PCB MOUNTABLE HIGH VOLTAGE POWER SUPPLIES
- Voltage range: 0.3 to 6 kVdc
- Current: 0.25 to 5 mA
- Power: 1.5 W
- Proportional I/O
I/O Proportional DC-DC High Voltage Power Supplies
The URG series is a lineup of compact, PCB-mount DC high-voltage power supplies engineered for precision applications. Featuring output voltages from 0.3 to 6 kV and a power rating of 1.5 W, these modules provide stable performance with ripple as low as 0.2% p-p.
The series utilizes a proportional I/O control method, where the output voltage corresponds directly to the input voltage. With fully floating outputs and input/output isolation, the URG series offers flexible integration for diverse system requirements. It is UL62368-1 certified and CE marked, ensuring safety and compliance for global use. An optional metal shield is available for noise-sensitive environments, making the URG series an ideal choice for OEM integration in medical, analytical, and industrial equipment.
Features and Benefits
- Compact, PCB-mountable design
- Low ripple and high stability
- Proportional input/output control
- Input to output isolation
- Optional center tap for bipolar output
- UL62368-1 certified and CE marked
Applications
Models
Unless otherwise specified, the specifications are defined at the maximum rated output after warm-up and apply to output ranges from 10% to 100% of the maximum rating.
| Model | Output | Rated load [MΩ] |
Ripple [%p-p] | Input | Safety Standards | ||
|---|---|---|---|---|---|---|---|
| Voltage [kVdc] | Current [mA] | Voltage [Vdc] | Current Typ [mA] (typical) | ||||
| URG-0.3PN | 0.02 to 0.3 kV | 5 mA | 0.06 MΩ | 0.2%p-p | 0.8 to 12 V | 220 mA |   |
| URG-0.35PN | 0.02 to 0.35 kV | 4.3 mA | 0.081 MΩ | |
|||
| URG-0.5PN | 0.03 to 0.5 kV | 3 mA | 0.167 MΩ | |
|||
| URG-1PN | 0.06 to 1.0 kV | 1.5 mA | 0.667 MΩ | |
|||
| URG-1.5PN | 0.1 to 1.5 kV | 1 mA | 1.5 MΩ | |
|||
| URG-2PN | 0.13 to 2 kV | 0.75 mA | 2.67 MΩ | |
|||
| URG-3PN | 0.2 to 3 kV | 0.5 mA | 6 MΩ | 1%p-p | |
||
| URG-4PN | 0.27 to 4 kV | 0.37 mA | 10.8 MΩ | |
|||
| URG-5PN | 0.3 to 5 kV | 0.3 mA | 16.7 MΩ | |
|||
| URG-6PN | 0.4 to 6 kV | 0.25 mA | 24 MΩ | |
|||
Specifications
- Input voltage
- 0.8 to 12 Vdc
- Output voltage control
- The output voltage is proportional to the input voltage (I/O Proportional)
For details, download the datasheet below.

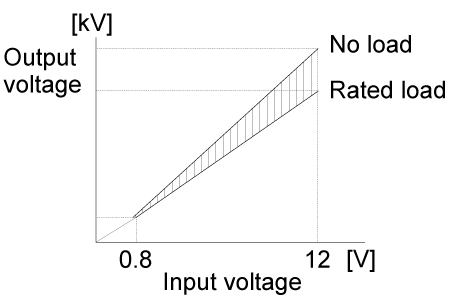

Input/Output proportional characteristic
Options
- -LCt
-
Additional center tap terminal (bipolar output)
A center tap terminal is added to output both positive and negative voltage with reference to the center tap
- -LMb
-
5-sided metal shielding (Available for 0.3 kV to 4 kV models)
Attached five-sided metal shield cover to minimize noise interference.
How to order
When ordering, add Option No. in the following order by alphabet to Model No.
Example: URG-4PN-LCtMb
Diagram
Connection diagram
For details, download the datasheet below.
Dimensions
38.1 x 38.1 x 16mm (1.50" x 1.50" x 0.63")
For details, download the datasheet below.
