Compact High-Voltage Power Supply Modules (Proportional Type)
- Output：0.3 kV to 6 kV/3 W
- Input：1.5 Vdc to 12 Vdc
- Low ripple
- Small size
HIGH PERFORMANCE, HIGH VOLTAGE DC-DC CONVERTER
The Matsusada Precision UR series is a line of compact, PCB-mountable high-voltage power supply modules. The output voltage is directly proportional to the input voltage, simplifying control integration. Featuring a fully floating output, these modules can be configured for either positive or negative polarity. The UR series delivers stable output voltages ranging from 100 V to 6 kV with ultra-low ripple and noise, making it an ideal choice for precision equipment such as photomultiplier tubes (PMTs), electron microscopes, and electrostatic chucks.
FEATURES AND BENEFITS
- Compact Design: Optimized for PCB mounting
- High Performance: Low ripple and noise for sensitive applications
- Proportional Control: Output voltage scales linearly with input
- Fully Isolated: Floating output allows flexible polarity configuration
APPLICATIONS
- Photomultiplier Tubes (PMTs)
- Ionization Chambers
- High-Voltage Bias Sources
- Electrostatic Chucks (E-Chucks / ESCs)
Models
Unless otherwise noted, specifications apply at maximum rated output after a warm-up period, covering an output range of 10% to 100%.
| Model | Output | Rated load [Ω] | Ripple [%p-p] | Input | Insulation | ||
|---|---|---|---|---|---|---|---|
| Voltage range [kVdc] | Current [mA] | Voltage [Vdc] | Current [mA (typical)] | Input/Output [Vdc] | |||
| UR-0.3PN | 0.03 to 0.3 kV | 10 mA | 0.03 MΩ | 0.02%p-p | 1.5 to 12 Vdc | 380 mA | 2000 V |
| UR-0.6PN | 0.04 to 0.6 kV | 5 mA | 0.12 MΩ | 2000 V | |||
| UR-1.1PN | 0.08 to 1.1 kV | 2.75 mA | 0.4 MΩ | 0.03%p-p | 2000 V | ||
| UR-1.5PN | 0.1 to 1.5 kV | 2 mA | 0.75 MΩ | 0.03%p-p | 2000 V | ||
| UR-2PN | 0.15 to 2 kV | 1.5 mA | 1.3 MΩ | 0.1%p-p | 2000 V | ||
| UR-3PN | 0.2 to 3 kV | 1 mA | 3 MΩ | 0.1%p-p | 3000 V | ||
| UR-5PN | 0.25 to 5 kV | 0.6 mA | 8 MΩ | 0.2%p-p | 5000 V | ||
| UR-6PN | 0.4 to 6 kV | 0.5 mA | 12 MΩ | 0.2%p-p | 6000 V | ||
Specifications
- Input voltage
- 1.5 to 12 Vdc
- Output voltage control
- The output voltage is proportional to the input voltage (I/O Proportional)
For details, download the datasheet below.

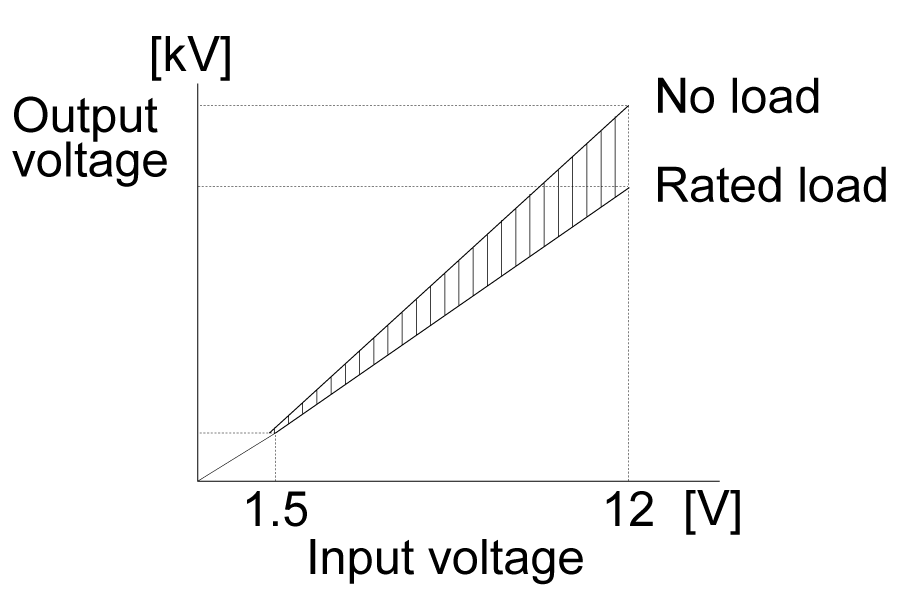

Input/Output proportional characteristic
Options
- -LMb
-
Metal shield cover (for 0.3 kV to 2 kV model only)
Attached five-sided metal shield cover
How to Order
When ordering, add Option No to Model No.
<Example> UR-1.5PN-LMb
Diagram
Connection Diagram
For details, download the datasheet below.
Dimensions

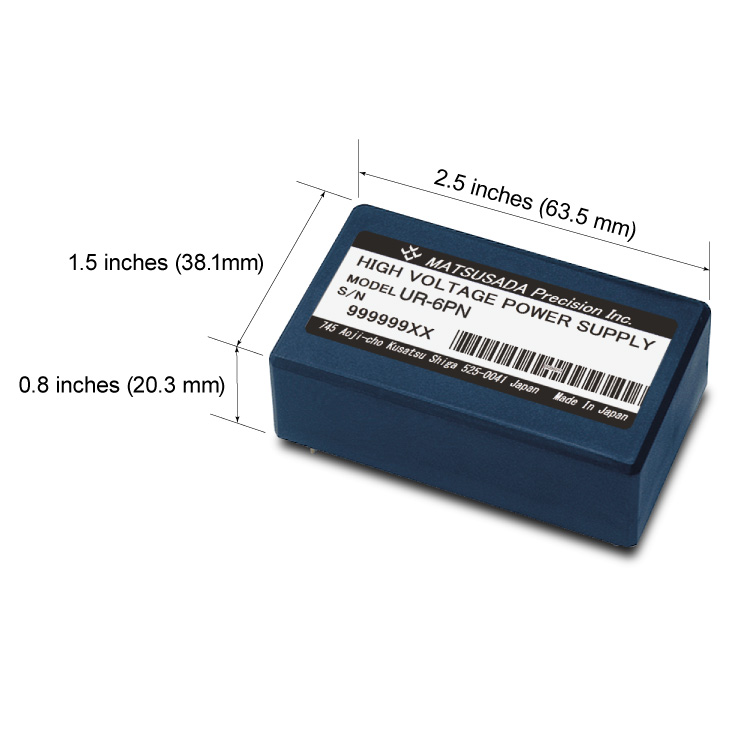

63.5 x 38.1 x 20.3mm (2.50" x 1.50" x 0.80")
For details, download the datasheet below.
