ULTRA COMPACT HIGH VOLTAGE POWER SUPPLIES FOR APD BIAS
For APD bias application
- Voltage range: 50 to 800 V
- Current: 0.2 to 1 mA
- Power: 0.05 to 3 W
- Temperature compensation
Ultra-Compact High-Voltage Power Supplies for APD Biasing
The TR series is a PCB-mount high-voltage power supply module designed specifically for biasing Avalanche Photodiodes (APD) and PIN photodiodes. It features a built-in temperature compensation circuit to ensure stable gain (multiplication factor) performance, even in environments with fluctuating temperatures.
Avalanche Photodiodes are highly sensitive to temperature changes. The TR series addresses this by applying temperature compensation to the bias voltage, stabilizing the APD's multiplication factor. The module delivers low ripple and high stability, making it ideal for precision measurements. Output voltage can be adjusted via an external control voltage or a potentiometer.
FEATURES AND BENEFITS
- Ultra-compact size: Minimizes required PCB mounting area.
- Temperature compensation: Stabilizes APD multiplication factor against temperature drifts.
- Versatile control: Supports output voltage adjustment via external voltage or potentiometer.
- High performance: Low ripple and high stability output.
- Easy integration: 5 Vdc input operation and PCB-mountable design.
APPLICATIONS
- PIN photodiode
- Avalanche photodiode (APD)
- Silicon Photomultiplier (SiPM)
- Silicon drift detector (SDD)
- Photodetector
Models
| Model | Max. Output Voltage [Vdc] | Rated load [kΩ] | Ripple [mVp-p] | Input Voltage [Vdc] | Input Current [mA] |
|---|---|---|---|---|---|
| TR-0.05P | 50 V | 50 kΩ | Less than 10 mVp-p |
5 V | 50 mA |
| TR-0.1P | 100 V | 100 kΩ | 65 mA | ||
| TR-0.2P | 200 V | 200 kΩ | 90 mA | ||
| TR-0.3P | 300 V | 300 kΩ | 120 mA | ||
| TR-0.5P | 500 V | 1000 kΩ | Less than 20mVp-p |
150 mA | |
| TR-0.7P | 700 V | 3500 kΩ | 150 mA | ||
| TR-0.8P | 800 V | 4000 kΩ | 150 mA |
| Model | Max. Output Voltage [Vdc] | Rated load [kΩ] | Ripple [mVp-p] | Input Voltage [Vdc] | Input Current [mA] |
|---|---|---|---|---|---|
| TR-0.05N | -50 V | 50 kΩ | Less than 10 mVp-p |
5 V | 50 mA |
| TR-0.1N | -100 V | 100 kΩ | 65 mA | ||
| TR-0.2N | -200 V | 200 kΩ | 90 mA | ||
| TR-0.3N | -300 V | 300 kΩ | 120 mA | ||
| TR-0.5N | -500 V | 1000 kΩ | Less than 20 mVp-p |
150 mA | |
| TR-0.7N | -700 V | 3500 kΩ | 150 mA | ||
| TR-0.8N | -800 V | 4000 kΩ | 150 mA |
Specifications
- Input voltage
- 5 Vdc
- Output voltage control
- External 5 kΩ potentiometer or external control voltage (Vcon-in) 0 to 3 Vdc
Diagram
Connection diagram
For details, download the datasheet below.
Dimensions
51.0 x 36.0 x 15.0mm (2.01" x 1.42" x 0.59")
For details, download the datasheet below.
Download
If you are unable to download a file
Please try the following solution.
- Please press Ctrl+F5 to clear the cache of your web browser and try again.
- Please restart your web browser and log in again to try again.
- Please change your web browser to another browser and try again.
- Restart the computer and try again.
- Please try again on a different computer.
-

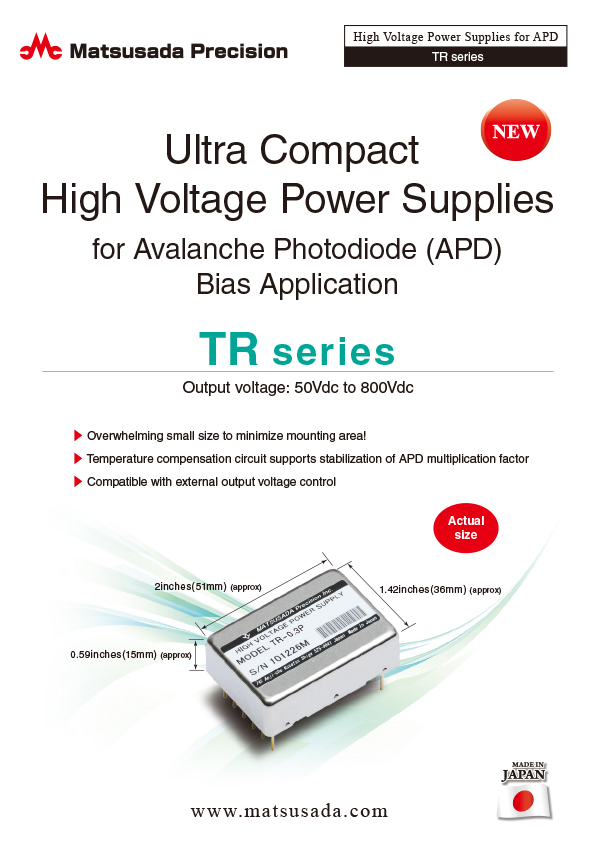

TR series Datasheet
