COMPACT/HIGH POWER PROGRAMMABLE DC POWER SUPPLY
- Voltage range: 6V to 800V
- Current: 0.6A to 180A
- Power: 385 to 1200W
- Multiple functions
A 2.8 inches (70 mm) wide, this 400 W compact size
Low noise, multiple functions, and digital communication are highlights of supply that can be used from R&D to a variety of applications. All this convenience in a small DC power supply.
The RK series is a small, programmable desktop 400 W, 800 W, 1200 W high output power supply.
Our low noise switching method includes several features such as a delay trigger, memory function, and two-mode lock function to prevent operator mistakes. All this enables the user to operate the supply for a wide range of applications.
Moreover, the sequence function enables the user to control the supply without a laptop.
The digital interface is also standard, with LAN, USB, RS-232C, RS-485, or GPIB control, allowing the operator to use the system in many different production environments.*
(Only some models with options are CE marking.)
* Adapters or options will be needed additionally.
Features and Benefits
- Compact and high power 400 W, 800 W, 1200 W
- The optional sequence movement is available without a PC
- Batch control up to 32 units is possible via optical communication
- Ideal for research and development with low noise switching method.
- PFC circuit and universal input can be used for worldwide operation.
- Various operations by connecting multiple power supplies, such as master-slave, are possible.
- The sink current suppression is used to reduce the reverse current flowing from the load to the unit in order to prevent a voltage drop on the load as the output is OFF or the set voltage is lowered.
- Operability and safety are improved with new features of the two-mode lock function and acceleration rotary encoder, which accelerate the output ramp-up with the speed of rotating the encoder.
Models
: They are the models that can correspond to CE marking with the -LCe option.
| Model | Output | Ripple (rms) | Safety standards | ||||
|---|---|---|---|---|---|---|---|
| Voltage [V] | Current [A] | Power [W] | Voltage | Current *1 | |||
| RK6-65 | 0 to 6 V | 0 to 65 A | 390 W | 8 mV | 130 mA | ||
| RK6-130 | 0 to 130 A | 780 W | 8 mV | 260 mA | |||
| RK6-180 | 0 to 180 A | 1080 W | 15 mV | 360 mA | |||
| RK10-40 | 0 to 10 V | 0 to 40 A | 400 W | 10 mV | 80 mA | ||
| RK10-80 | 0 to 80 A | 800 W | 10 mV | 160 mA | |||
| RK10-120 | 0 to 120 A | 1200 W | 15 mV | 240 mA | |||
| RK15-26 | 0 to 15 V | 0 to 26 A | 390 W | 10 mV | 60 mA | ||
| RK15-54 | 0 to 54 A | 810 W | 10 mV | 110 mA | |||
| RK15-80 | 0 to 80 A | 1200 W | 15 mV | 160 mA | |||
| RK20-20 | 0 to 20 V | 0 to 20 A | 400 W | 8 mV | 32 mA | ||
| RK20-40 | 0 to 40 A | 800 W | 8 mV | 70 mA | |||
| RK20-60 | 0 to 60 A | 1200 W | 15 mV | 96 mA | |||
| RK30-13 | 0 to 30 V | 0 to 13 A | 390 W | 4 mV | 10 mA | ||
| RK30-27 | 0 to 27 A | 810 W | 6 mV | 25 mA | |||
| RK30-40 | 0 to 40 A | 1200 W | 15 mV | 30 mA | |||
| RK36-11 | 0 to 36 V | 0 to 11 A | 396 W | 4 mV | 10 mA | ||
| RK36-22 | 0 to 22 A | 792 W | 6 mV | 20 mA | |||
| RK36-33 | 0 to 33 A | 1188 W | 15 mV | 30 mA | |||
| RK45-9 | 0 to 45 V | 0 to 9 A | 405 W | 4 mV | 8 mA | ||
| RK45-18 | 0 to 18 A | 810 W | 8 mV | 15 mA | |||
| RK45-27 | 0 to 27 A | 1215 W | 18 mV | 20 mA | |||
| RK60-6.6 | 0 to 60 V | 0 to 6.6 A | 396 W | 10 mV | 15 mA | ||
| RK60-13.5 | 0 to 13.5 A | 810 W | 12 mV | 25 mA | |||
| RK60-20 | 0 to 20 A | 1200 W | 18 mV | 20 mA | |||
| RK80-5 | 0 to 80 V | 0 to 5 A | 400 W | 10 mV | 8 mA | ||
| RK80-10 | 0 to 10 A | 800 W | 15 mV | 10 mA | |||
| RK80-15 | 0 to 15 A | 1200 W | 30 mV | 20 mA | |||
| RK120-3.3 | 0 to 120 V | 0 to 3.3 A | 396 W | 15 mV | 6 mA | ||
| RK120-6.6 | 0 to 6.6 A | 792 W | 20 mV | 5 mA | |||
| RK120-10 | 0 to 10 A | 1200 W | 20 mV | 8 mA | |||
| RK160-2.5 | 0 to 160 V | 0 to 2.5 A | 400 W | 20 mV | 4 mA | ||
| RK160-5 | 0 to 5 A | 800 W | 30 mV | 10 mA | |||
| RK160-7.5 | 0 to 7.5 A | 1200 W | 30 mV | 20 mA | |||
| RK250-1.6 | 0 to 250 V | 0 to 1.6 A | 400 W | 25 mV | 3 mA | ||
| RK250-3.2 | 0 to 3.2 A | 800 W | 38 mV | 5 mA | |||
| RK250-4.8 | 0 to 4.8 A | 1200 W | 27 mV | 5 mA | |||
| RK350-1.1 | 0 to 350 V*2 | 0 to 1.1 A | 385 W | 24 mV | 2 mA | ||
| RK350-1.5 | 0 to 1.5 A | 525 W | 35 mV | 5 mA | |||
| RK350-2.2 | 0 to 2.2 A | 770 W | 40 mV | 5 mA | |||
| RK350-3.2 | 0 to 3.2 A | 1120 W | 48 mV | 5 mA | |||
| RK400-2 | 0 to 400 V*2 | 0 to 2 A | 800 W | 40 mV | 5 mA | ||
| RK500-0.8 | 0 to 500 V*2 | 0 to 0.8 A | 400 W | 20 mV | 3 mA | ||
| RK500-0.9 | 0 to 0.9 A | 450 W | 20 mV | 5 mA | |||
| RK500-1.6 | 0 to 1.6 A | 800 W | 30 mV | 5 mV | |||
| RK500-2.4 | 0 to 2.4 A | 1200 W | 40 mV | 10 mA | |||
| RK650-0.6 | 0 to 650 V*2 | 0 to 0.6 A | 390 W | 22 mV | 5 mA | ||
| RK650-0.8 | 0 to 0.8 A | 520 W | 30 mV | 4 mA | |||
| RK650-1.2 | 0 to 1.2 A | 780 W | 80 mV | 4 mA | |||
| RK650-1.8 | 0 to 1.8 A | 1170 W | 100 mV | 5 mA | |||
- At 10% to 100% of rated output voltage and rated output current.
- Models of 350 V and more have no output monitor terminals on the front panel. Contact us when you need them.
- Discontinued models
-
The following model is no longer available as we have stopped production and sales.
Model Output Ripple (rms) Voltage Current Power Voltage Current RK800-1 0 to 800 V 0 to 1 A 800 W 100 mV 5 mA
Functions
Sink Current Suppression
RK series featured function to sink current, and enables to decrease the voltage quickly when turning off the output or when controlling the voltage down, which increases the safety of operation. In the case of continuous aging tests in short intervals, quick voltage fall time increases the efficiency of the process. On the contrary by using sink current prevention function, it is possible to prevent voltage drop on the load by decreasing the current flow from the load to the power supply when turning off the power supply or when decreasing the output voltage.
Note: It is not possible to stabilize the output by controlling the back current. In case of load which has inverse voltage or over rated voltage, such as inductive load or regenerative motor, protect the power supply by adding a dummy resister or diode to prevent back current.
Multi Setting Function
Function to memorize three different voltage and current settings in addition to the standard preset function. No need to adjust the output when different settings, and convenient function for production inspection process or testing which require frequent data taking.
Two-mode Lock Function
Function to select two different lock functions for two different purpose. "Full Lock" locks all the functions on front panel, and "Normal Lock" locks all the functions except for ON/OFF. "Full Lock" mode is suitable when misoperation must be completely prevented, while "Normal Lock" mode is appropriate when misoperation should be avoided but an emergency stop of the power supply must remain possible. You can select the best mode according to your level of "Security".
(Each modes, emergency stop is possible with power switch.)
Full LOCK
Lock all the functions other than reset lock mode, and effective for the purpose of avoiding misoperation when controlled
Normal LOCK
Lock voltage and current setting dial, and effective for the purpose of avoiding changing output setting by mistake or when an easy emergency stop is required.
Delay Trigger Function
* t1 to t 8 can be set in the range 0.0 s to 99.9 s.
This function enables the power supply to be set to delay the output trigger timing. Either in the case of a single unit of RK series power supply or in case of multiple power supplies in Master-slave connection *1, it is possible to use this feature among multiple DC power supplies *2 having individually different output voltage/current setting *3
- Can be connected up to 16 pieces.
- R4K-36 series, R4K-80 series, RK-80 series, RKT series, TB series and REK series. A detailed datasheet for each model is available. Please contact the nearby sales office.
- Only for slave-local. In the case of slave remote control, the exact same model of power supply needs to be used. Also, in the case of slave-local, each output voltage and current can be set individually. In the case of slave-remote, output voltage, and current can be set with a one-control function in which each slave unit follows the master unit setting.

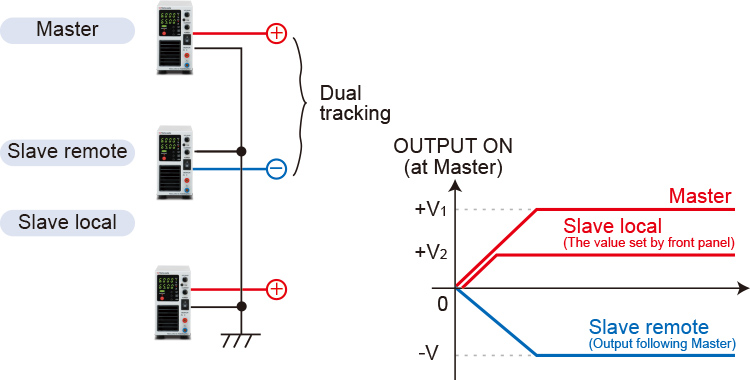

Dual Tracking, Multiple Outputs
Dual tracking control, which enables both positive and negative outputs simultaneously in master-slave operation, is possible. Multi outputs and various versatile operations are also possible by combining the above dual tracking control and slave local mode. Positive and negative output (+V, -V) of dual tracking control and set output voltage of slave local mode can be output simultaneously by turning on the master unit.
Dual tracking
Multiple outputs
Two Features in -LDe Option
(1) Function for Pulse & Ramp and Master Follow
Output control as Next A to D is possible.
A. Pulse (Step) Sequence Function
The Sequence function lets you generate complex voltage and current patterns by automatically cycling through settings stored in memories a, b, and c. You can run the sequence continuously or for a specified number of cycles. By setting the duration of any step (a, b, c, or off) to 0.0, you can easily skip steps to create custom test patterns. This flexibility is ideal for product evaluation and reliability testing.
The parameters ta, tb, tc, and toff can be set to 0.0 s, or from 1.0 s to 99.9 h.
B. Ramp Function
The Ramp function provides linear control to gradually increase the output to a set voltage/current, or decrease it to zero. This feature is useful for applications that require a slow power-up or power-down.
* The ramp operation can be applied to: Voltage and Current, Voltage Only, or Current Only.
The t1 and t2 parameters can be set from 0 s to 999 s.
C. Combined Sequence and Ramp
For advanced control, the Sequence and Ramp functions can be used together. This allows you to create complex profiles by smoothly ramping the voltage and/or current between the discrete steps defined in memories a, b, and c. The entire waveform can be run continuously or for a pre-set number of cycles, making it a powerful tool for various testing scenarios.
t1 and t2 can be set from 0 s to 999 s, while ta, tb, tc, and toff can be set to 0.0 s or from 1.0 s to 99.9 h.
D. Master Follow (Tracking)
Master-follow is a function that allows the slave equipment to follow the output status of the master equipment in a master-slave connection. The output status of the master equipment is transmitted to the slave equipment to enable interlocked operation. The master and slave can be set to different modes of operation, allowing for complex testing.
* The master follow function is only available with the standard interface.
Note: (1) This function cannot be used in conjunction with the delay trigger function. (2) Time accuracy in sequence operation is ±0.5%. Take care when using the product in long-term running operations.

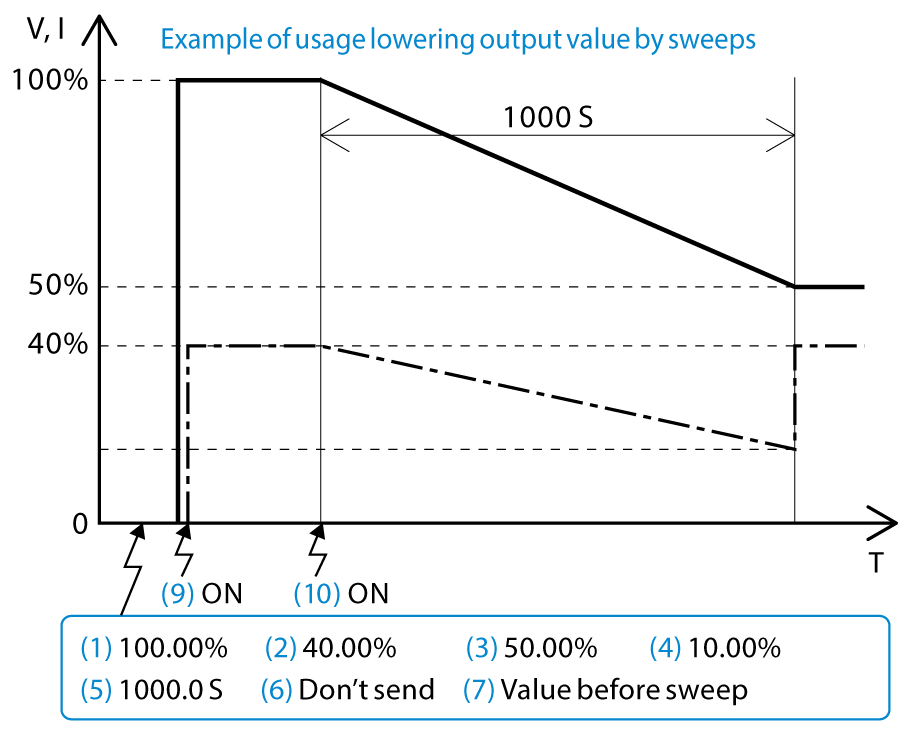

(2) Sweep Control Programming
Easy programming of sweep operation!
With the -LDe option, the available sweep commands are adapted by setting the arrival time and arrival conditions (voltage/current). Since there is no need to set commands that are repeated step by step, it is easier to create new programs and change conditions, saving a great deal of operation time. It also contributes to securing time for development, research, etc.
For details, download the datasheet below.
External Analog Control
- External output ON/OFF
- Output can be turned ON/OFF by relay or TTL signal. The logic of OUTPUT can be reversed.
- Remote/Local change
- As for the output voltage control, output current control, overvoltage protection, and overcurrent protection, the remote/local mode can be individually switched by relay or TTL signal.
- Output monitor
- (Voltage, Current)
- Output control
- (Voltage, Current, Overvoltage protection, Overcurrent protection)
- Status output
Digital Interface Port
This is Matsusada Precision's proprietary digital communication port. This interface has modular type IN and OUT ports to allow daisy-chain connection. Combined with an adapter (sold separately). Multiple power supplies can be controlled at once. Adapters for LAN, USB, RS-232C, RS-485, and GPIB are available so that you can choose a suitable communication interface.
One-control operation by master-slave connection is also possible.
Master/slave connection
Master unit can control multiple units connected as slaves. Please click “D. Master Follow”, “Delayed Trigger Function”, “Dual Tracking, Multiple Outputs”.
Master-slave connections require all units to be the same model within the series. Master/slave function can only be effective with standard digital interface
If a noisy environment is expected, the -LGob optical interface port option is required.
Example of Connection and Operation
Using the same multiple units of the RK series, the output voltage and output current can be increased by connecting the outputs in series or parallel.
Control must be set on each individual unit. Do not connect together COMMON of 2 units or more as the COMMON of connector for external input and output control (TB1) is connected with output.
Series operation
The total output voltage is up to 250 V. The output voltage exceeding 250 V is unavailable in a series connection. The output current will be the smallest value.
Parallel operation
Use the same value for voltage setting in parallel connection. The output current is the sum of each current. In order to prevent damage, set the OVP level of all the power supplies to the maximum.
Split operation
+output and –output are available. With the output voltage exceeding 250 V, the split operation is not available.
Specifications
- Input voltage
- 85 to 264 Vac, 50/60 Hz, Single-phase
- Output voltage control
-
[Local] Rotary encoder on front panel
[Analog remote] External control voltage 0 to 10 Vdc or external 10kΩ potentiometer
[Digital remote] Command - Output current control
-
[Local] Rotary encoder on front panel
[Analog remote] External control voltage 0 to 10 Vdc or external 10kΩ potentiometer
[Digital remote] Command
Options
- -LCe
-
Corresponding to CE marking *1
Object: Models with CE mark "MODELS".
- -LCk
-
CC-Link interface port *1 NEW
A CC-Link master unit such as a PLC can control power supplies with CC-Link compatible with CC-Link ver1.10, and it is possible to operate as a CC-Link device station. One unit occupies 2 stations, and a maximum of 32 units can be controllable. Please refer to the CC-Link association web for CC-Link details.Multiple units can be simultaneously controllable by direct, Hub, or daisy chain connection.
- -LDe
-
Pulse/Ramp sequence, Master follow function
Go to Pulse/Ramp sequence, Master follow function (-LDe option)
- -LEt
-
LAN interface port *1 *2 *3
Enable digital control via LAN
HUB shall be required between the RK series and your computer when controlling multiple RK via LAN.If this option is taken, CE certification becomes void.
- LGob
-
Optical interface port *2 *3
This option changes the standard interfaces to a built-in optical interface port. By combining this option with an adapter for optical connection (sold separately), communication between the control device and the power supply can be controlled in an isolated state. Be sure to select this option when using the product in the following environments.- -LGob: Optical interface port + optical cable 2 meters
- -LGob(Fc5): Optical interface port + optical cable 5 meters
- -LGob(Fc10): Optical interface port + optical cable 10 meters
- -LGob(Fc20): Optical interface port + optical cable 20 meters
- -LGob(Fc40): Optical interface port + optical cable 40 meters
Select the optional optical interface port (-LGob) when using this DC power supply under the following conditions.
- Noisy environments such as factories (example: when motors or coils are used near loads or power sources).
- If this power supply and your controller (PC or PLC) cannot be installed within 2 meters.
- When there is a possibility of arcing or output short-circuit.
- -LIc
-
Output current accumulation function *4
Accumulate the output current and display its value (up to 100 Ah). The accumulated value is stored even when the output is off. Because the accumulated value that stops the output can be set preliminarily, it is very suitable for the application, such as controlling the plating solution.
- -LUs1
-
USB interface port *2 *3
Enable digital control via USBWhen controlling several RK series DC power supplies via USB, a USB hub will be required between the PC and RK power supplies.
Corresponding OS: Microsoft Windows XP/Vista/7/8/8.1/10
All can correspond to both the 32-bit version and the 64-bit version.
(Microsoft and Windows are registered trademarks of Microsoft Corporation.)
- -LZ
-
Carring handle *1
A carrying handle is available.
If this option is taken, CE certification becomes void.
- -L(Mc0.5), -L(Mc0.15)
-
Communication cable extension *2
The length of the CO-M cable will be 0.5 meters long or 0.15 meters long. (You can choose only either.)
- -L(SCPI)
-
SCPI command
Enable control via SCPI command.
- Please ask to our sales office about the update status of the CE marking acquisition. -LCe option can not be selected with -LCk, -LMi, -LEt or -LZ option.
- These options cannot be selected together. Only one of each can be selected.
- Please see the CO series datasheet for details of the digital interface function.
- Please consider the location of usage. Environment humid and corrosive gas occurs typified by plating lines can cause failure.
How to Order
When placing an order, please add the option code(s) after the model name. If adding two or more options, omit the “-L” from the second and subsequent option codes, and list them in alphabetical order, with the parentheses option placed at the end.
Example: RK30-27-LCeDeGob(Fc5)(SCPI), RK650-1.8-LDeZ(Mc0.5)(SCPI)
Accessories
- Adapters for various digital interfaces
-
To use Matsusada Precision's digital interface, you need to prepare a digital interface adapter separately.
The following interface adapters are available according to your controller port.For details, refer to CO/USB series.- CO-E32m: LAN adapter
- CO-U32m: USB adapter
- CO-MET2-9: RS-232C (9 pin) adapter
- CO-MET2-25: RS-232C (25 pin) adapter
- CO-MET4-25: RS-485 (25 pin) adapter
CO-MET2-9/CO-MET2-25/CO-MET4-25: The connector is D-sub type. - CO-G32m: GPIB adapter (Scheduled for discontinuation in December 2028)

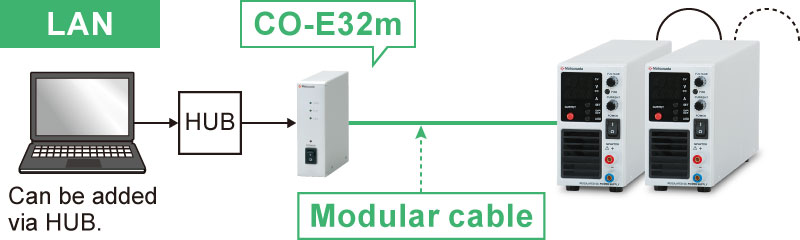

Example of communication with a digital adapter
- Optical isolation adapter
-
To use the optical interface, you need to prepare an optical interface adapter separately.
The following interface adapters are available according to your controller port.For details, refer to CO/USB series.- CO-E32: LAN to optical interface adapter
- USB-OPT: USB to optical interface adapter
- CO-OPT2-9: RS-232C (9 pin) to optical interface adapter
- CO-OPT2-25: RS-232C (25 pin) to optical interface adapter
- CO-OPT4-25: RS-485 (25 pin) to optical interface adapter
- CO-G32: GPIB to optical interface adapter
Example of communication with optical fiber
- Ac Input Cables
-
Standard
400 W ModelsCABLE TYPE1 125 V/10 A 2.5 meters
Fixed lengthStandard
800 W ModelsCABLE TYPE8 125 V/125 A 2.5 meters
Fixed lengthStandard
RK1200 W ModelsCABLE TYPE5 300 V/25 A 2.5 meters Sold separately
400 W and 800 W ModelsCABLE TYPE3 250 V/10 A 2.5 meters
Fixed lengthSold separately
400 W and 800 W ModelsCABLE TYPE4 250 V/10 A 2.5 meters
Fixed lengthSold separately
400 W and 800 W ModelsCABLE TYPE13 250 V/15 A 2.5 meters Please use the AC cable suitable for the environment and the area. CABLE TYPE 3 and 4 correspond to CE marking.
- Application software
-
PSS2en series: Remote control, Test workflow design, and Data logging
Click here for the PSS2en seriesPSS2en is the dedicated software that can actuate various power supplies, electronic loads, and digital controllers for power supplies manufactured by Matsusada Precision Inc. with a simple setup.
It is perfect for the aging test, the burn-in test, and the withstand voltage test for electronic parts, as well as for the endurance test, intermittent/continuous operation test, or various simulation tests for automobile electric components.
Dimensions
Download
If you are unable to download a file
Please try the following solution.
- Please press Ctrl+F5 to clear the cache of your web browser and try again.
- Please restart your web browser and log in again to try again.
- Please change your web browser to another browser and try again.
- Restart the computer and try again.
- Please try again on a different computer.

-

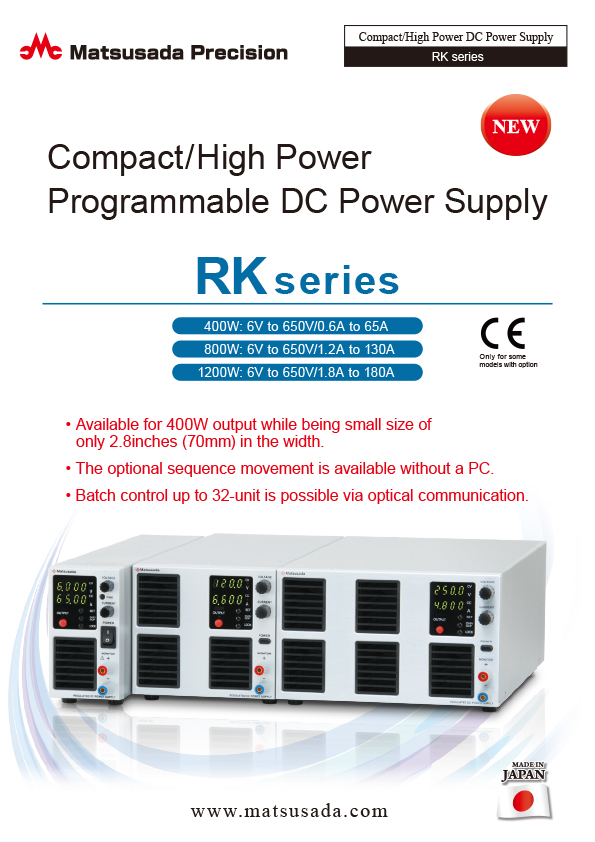

RK series Datasheet
Date: 2025-09-08 rev 25
PDF (2,494 KB)

-
DC POWER SUPPLIES SELECTION GUIDE
Date: 2025-06-27 rev.02
PDF (5,265 KB)

-
How to Use DC Power Supplies
Date: 2025-11-11 rev 09
PDF (1,281 KB)

-
RK/REK/REKJ series Basic Instruction Manual
Date: 2022-7-8 rev.0.5
PDF (445 KB)

-
RK/REK/REKJ series Instruction Manual
Date: 2025-01-10 rev 2.3
PDF (12,474 KB)
-
RK series USB Driver
Date: 2025-01-22 rev 1.7.6
ZIP (6,504 KB)
-
RK/REK/R4G series USB Driver (LMi option guide)
Date: 2020-07-02 rev0.0
PDF (152 KB)

-
RK series Outline Drawing (DXF, PDF)
Date: 2024-07-24
ZIP (2,277 KB)

-
RK series (358W to 405W models) 3D MODELS (STEP, IGES)
Date: 2025-11-25
ZIP (2,893 KB)
Login Required

-
RK series Datasheet
Date: 2025-09-08 rev 25
PDF (2,494 KB)

-
DC POWER SUPPLIES SELECTION GUIDE
Date: 2025-06-27 rev.02
PDF (5,265 KB)

-
How to Use DC Power Supplies
Date: 2025-11-11 rev 09
PDF (1,281 KB)

-
RK/REK/REKJ series Basic Instruction Manual
Date: 2022-7-8 rev.0.5
PDF (445 KB)

-
RK/REK/REKJ series Instruction Manual
Date: 2025-01-10 rev 2.3
PDF (12,474 KB)
-
RK series USB Driver
Date: 2025-01-22 rev 1.7.6
ZIP (6,504 KB)
-
RK/REK/R4G series USB Driver (LMi option guide)
Date: 2020-07-02 rev0.0
PDF (152 KB)

-
RK series Outline Drawing (DXF, PDF)
Date: 2024-07-24
ZIP (2,277 KB)

-
RK series (358W to 405W models) 3D MODELS (STEP, IGES)
Date: 2025-11-25
ZIP (2,893 KB)
On this website, we provide only the latest versions of information and instruction manuals for our products. Therefore, the newest versions of manuals on the website may differ from those that came with products you purchased in the past.
