High Voltage Power Supply
Low noise and High stability
- Output voltage: 1kV to 5kV
- Output current: 0.6mA to 15mA
- Output power: 3W, 6W, 15W
(planned)
High-Performance High-Voltage Power Supply The Ultimate in Compact, Low-Noise Performance
The HJPSS series is a benchtop size, high-performance, high-voltage power supply that combines space-saving and superior performance. Despite its compact width of 4.13-inch (105 mm), it can output high voltages of up to 5 kV with low noise. In addition, simple operation and extensive protection circuits make it easy and safe to use. Moreover, a LAN interface is included as standard equipment, making it easy to integrate into the system. It can be used for many applications, from high-precision applications such as Photomultiplier Tubes (PMTs) to small experiments at schools.
FEATURES
- Low ripple of 5 mVp-p minimum (output models below 2 kV), high stability, and excellent temperature coefficient.
- Safe and easy operation with a simple configuration consisting of only an output voltage setting knob and OUTPUT switch and various protection functions.
- Optimal model can be selected from a wide variety of models (45 models in all) according to the application.
- Bipolarity output type can easily switch polarity from the front panel or remote control connector.
MAIN APPLICATIONS
- Photomultiplier Tube (PMT)
- Bias power supply
- Various high-voltage tests
- Microchannel Plate (MCP)
- Electrostatic test
- Radiation detectors
- Dielectric withstand test
Models
| Mpdels | Output voltage [kV] | Output current [mA] | Output power [W] | Ripple [mVp-p] |
|---|---|---|---|---|
| HJPSS-1P3 | 0 to 1 kV | 3 mA | 3 W | 5 mVp-p |
| HJPSS-1P6 | 6 mA | 6 W | ||
| HJPSS-1P15 | 15 mA | 15 W | 10 mVp-p | |
| HJPSS-1.5P2 | 0 to 1.5 kV | 2 mA | 3 W | 5 mVp-p |
| HJPSS-1.5P4 | 4 mA | 6 W | ||
| HJPSS-1.5P10 | 10 mA | 15 W | 10 mVp-p | |
| HJPSS-2P1.5 | 0 to 2 kV | 1.5 mA | 3 W | 5 mVp-p |
| HJPSS-2P3 | 3 mA | 6 W | ||
| HJPSS-2P7.5 | 7.5 mA | 15 W | 10 mVp-p | |
| HJPSS-3P1 | 0 to 3 kV | 1 mA | 3 W | 10 mVp-p |
| HJPSS-3P2 | 2 mA | 6 W | ||
| HJPSS-3P5 | 5 mA | 15 W | ||
| HJPSS-5P0.6 | 0 to 5 kV | 0.6 mA | 3 W | 20 mVp-p |
| HJPSS-5P1.2 | 1.2 mA | 6 W | ||
| HJPSS-5P3 | 3 mA | 15 W |
| Mpdels | Output voltage [kV] | Output current [mA] | Output power [W] | Ripple [mVp-p] |
|---|---|---|---|---|
| HJPSS-1N3 | 0 to -1 kV | 3 mA | 3 W | 5 mVp-p |
| HJPSS-1N6 | 6 mA | 6 W | ||
| HJPSS-1N15 | 15 mA | 15 W | 10 mVp-p | |
| HJPSS-1.5N2 | 0 -1.5 kV | 2 mA | 3 W | 5 mVp-p |
| HJPSS-1.5N4 | 4 mA | 6 W | ||
| HJPSS-1.5N10 | 10 mA | 15 W | 10 mVp-p | |
| HJPSS-2N1.5 | 0 -2 kV | 1.5 mA | 3 W | 5 mVp-p |
| HJPSS-2N3 | 3 mA | 6 W | ||
| HJPSS-2N7.5 | 7.5 mA | 15 W | 10 mVp-p | |
| HJPSS-3N1 | 0 -3 kV | 1 mA | 3 W | 10 mVp-p |
| HJPSS-3N2 | 2 mA | 6 W | ||
| HJPSS-3N5 | 5 mA | 15 W | ||
| HJPSS-5N0.6 | 0 -5 kV | 0.6 mA | 3 W | 20 mVp-p |
| HJPSS-5N1.2 | 1.2 mA | 6 W | ||
| HJPSS-5N3 | 3 mA | 15 W |
| Mpdels | Output voltage [kV] | Output current [mA] | Output power [W] | Ripple [mVp-p] |
|---|---|---|---|---|
| HJPSS-1R3 | 0 to 1 kV/0 to -1 kV | 3 mA | 3 W | 5 mVp-p |
| HJPSS-1R6 | 6 mA | 6 W | ||
| HJPSS-1R15 | 15 mA | 15 W | 10 mVp-p | |
| HJPSS-1.5R2 | 0 to 1.5 kV/0 to -1.5 kV | 2 mA | 3 W | 5 mVp-p |
| HJPSS-1.5R4 | 4 mA | 6 W | ||
| HJPSS-1.5R10 | 10 mA | 15 W | 10 mVp-p | |
| HJPSS-2R1.5 | 0 to 2 kV/0 to -2 kV | 1.5 mA | 3 W | 5 mVp-p |
| HJPSS-2R3 | 3 mA | 6 W | ||
| HJPSS-2R7.5 | 7.5 mA | 15 W | 10 mVp-p | |
| HJPSS-3R1 | 0 to 3 kV/0 to -3 kV | 1 mA | 3 W | 10 mVp-p |
| HJPSS-3R2 | 2 mA | 6 W | ||
| HJPSS-3R5 | 5 mA | 15 W | ||
| HJPSS-5R0.6 | 0 to 5 kV/0 to -5 kV | 0.6 mA | 3 W | 20 mVp-p |
| HJPSS-5R1.2 | 1.2 mA | 6 W | ||
| HJPSS-5R3 | 3 mA | 15 W |
Functions

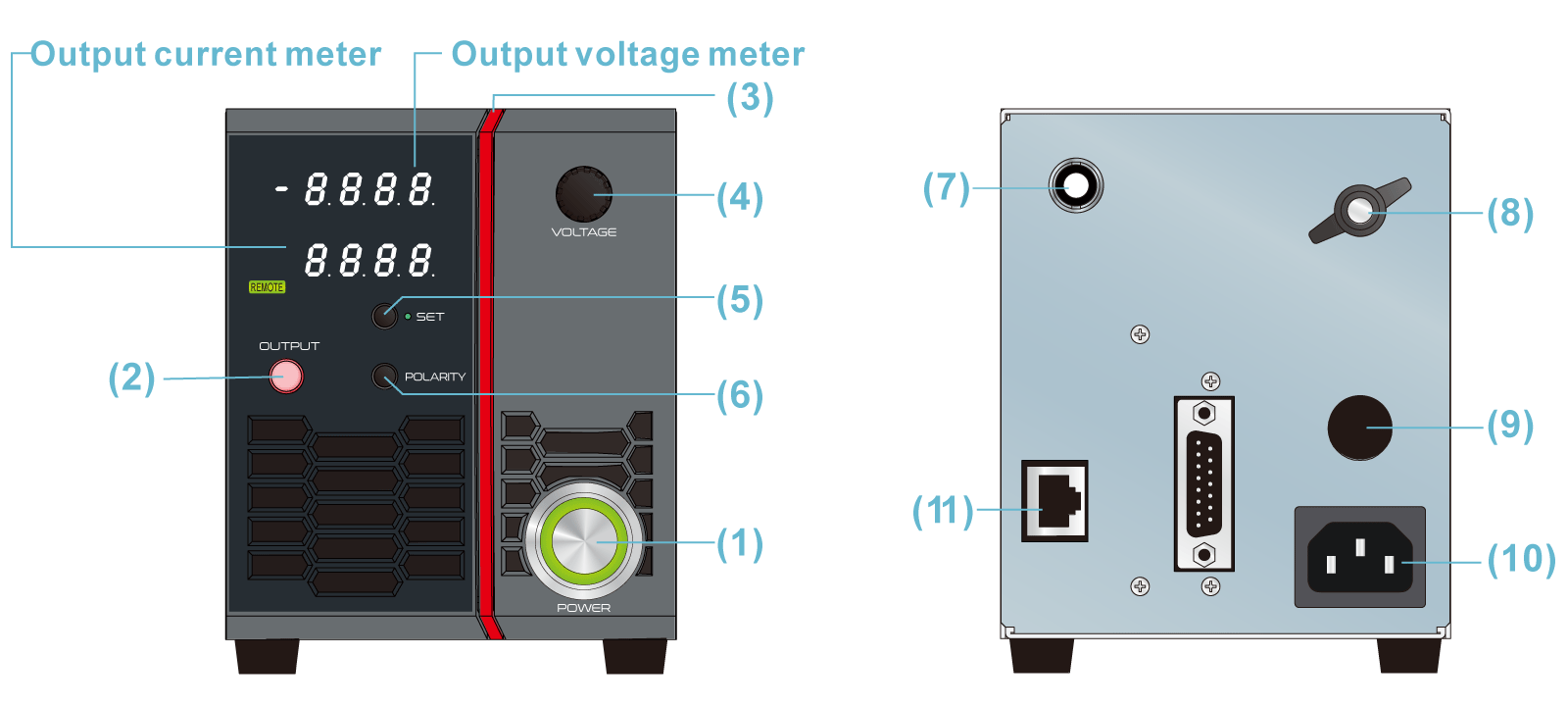

PANEL DESCRIPTION
- (1) POWER ON/OFF switch
- (2) OUTPUT switch
- (3) OUTPUT indicator light
- (4) Output voltage setting rotary encoder
- (5) SET switch
- (6) Polarity change switch
- (7) High voltage output connector BNC-HV(SHV) receptacle
- (8) GND terminal M6
- (9) Fuse
- (10) AC inlet
- (11) LAN port
Remote control connector D-sub 15-pin, female
- • Switching REMOTE/LOCAL
- • External-inhibit
- • Output voltage control
- • Polarity change
- • Output monitor
- • External output ON/OFF
- • Output of status
Specifications
- Input voltage
- 100 to 240 Vac, 50/60 Hz, Single-phase
- Output voltage control
-
[Local] Rotary encoder on front panel
[Analog remote] External control voltage 0 to 10 Vdc
[Digital remote] Command
Options
- -LGob
-
Optical interface port * Standard LAN port is not provided when -LGob option is selected.
This option changes the standard interfaces to a built-in optical interface port. By combining this option with an adapter for optical connection (sold separately), communication between the control device and the power supply can be controlled in an isolated state.- -LGob: Optical interface port + optical cable 2 meters
- -LGob(Fc5): Optical interface port + optical cable 5 meters
- -LGob(Fc10): Optical interface port + optical cable 10 meters
- -LGob(Fc20): Optical interface port + optical cable 20 meters
- -LGob(Fc40): Optical interface port + optical cable 40 meters
Select the optional optical interface port (-LGob) when using this DC power supply under the following conditions.
- Noisy environments such as factories (example: when motors or coils are used near loads or power sources).
- If this power supply and your controller (PC or PLC) cannot be installed within 2 meters.
- When there is a possibility of arcing or output short-circuit.
- -L(3m)
-
The length of the shielded high voltage output cable is changed to 3 meters.
(If you require a length other than this, please contact our sales representative.)
- -L(5m)
-
The length of the shielded high voltage output cable is changed to 5 meters.
(If you require a length other than this, please contact our sales representative.)
- -L(7m)
-
The length of the shielded high voltage output cable is changed to 7 meters.
(If you require a length other than this, please contact our sales representative.)
How to order
When ordering, add Option No. in the following order by alphabet, input voltage, and output cable length to Model No.
<Example> HJPSS-1.5P4-LGob(7m)
Accessories
- Optical isolation adapter
-
To use the optical interface, you need to prepare an optical interface adapter separately. The following interface adapters are available according to your controller port.
- CO-E32: LAN to optical interface adapter
- USB-OPT: USB to optical interface adapter
- CO-OPT2-9: RS-232C (9 pin) to optical interface adapter
- CO-OPT2-25: RS-232C (25 pin) to optical interface adapter
- CO-OPT4-25: RS-485 (25 pin) to optical interface adapter
- CO-G32: GPIB to optical interface adapter (Scheduled for discontinuation in December 2028)
Example of communication with optical fiber
For details, refer to CO/USB series
- Input Cable
-
Standard CABLE TYPE1
Power input end
Input plug125 V/10 A 2.5 meters
Fixed lengthSold separately
(available for 200 V input)CABLE TYPE3
Power input end
Input plug250 V/10 A 2.5 meters
Fixed lengthSold separately
(available for 200 V input)CABLE TYPE4
Power input end
Input plug250 V/10 A 2.5 meters
Fixed lengthSold separately
(available for 200 V input)CABLE TYPE13
Power input end
Input plug250 V/15 A 2.5 meters Sold separately
(available for 200 V input)CABLE TYPE20
Power input end
Input plug250 V/10 A 2.5 meters
- Output cable
-
Standard CN-SHV-HVP
2.5 meters
(Specified length
available)

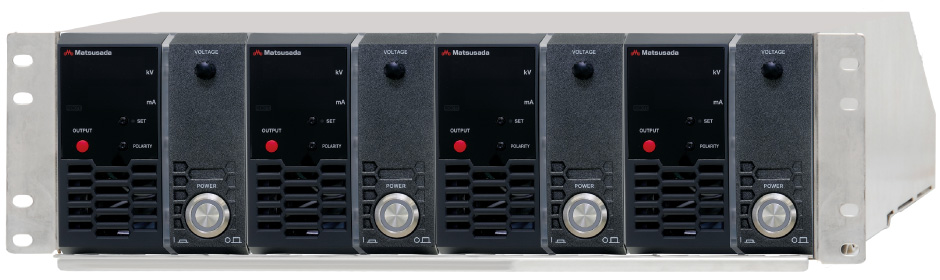

- Rack mount shelf
-
model: RMO-133H-HJPSS
Rack mount shelf for storing power supply units together in a 19-inch rack. For details, please refer to the datasheet of "RMO series" 19-inch rack mount shelf.
