Discontinued

Digital PWM
Control Power Supply

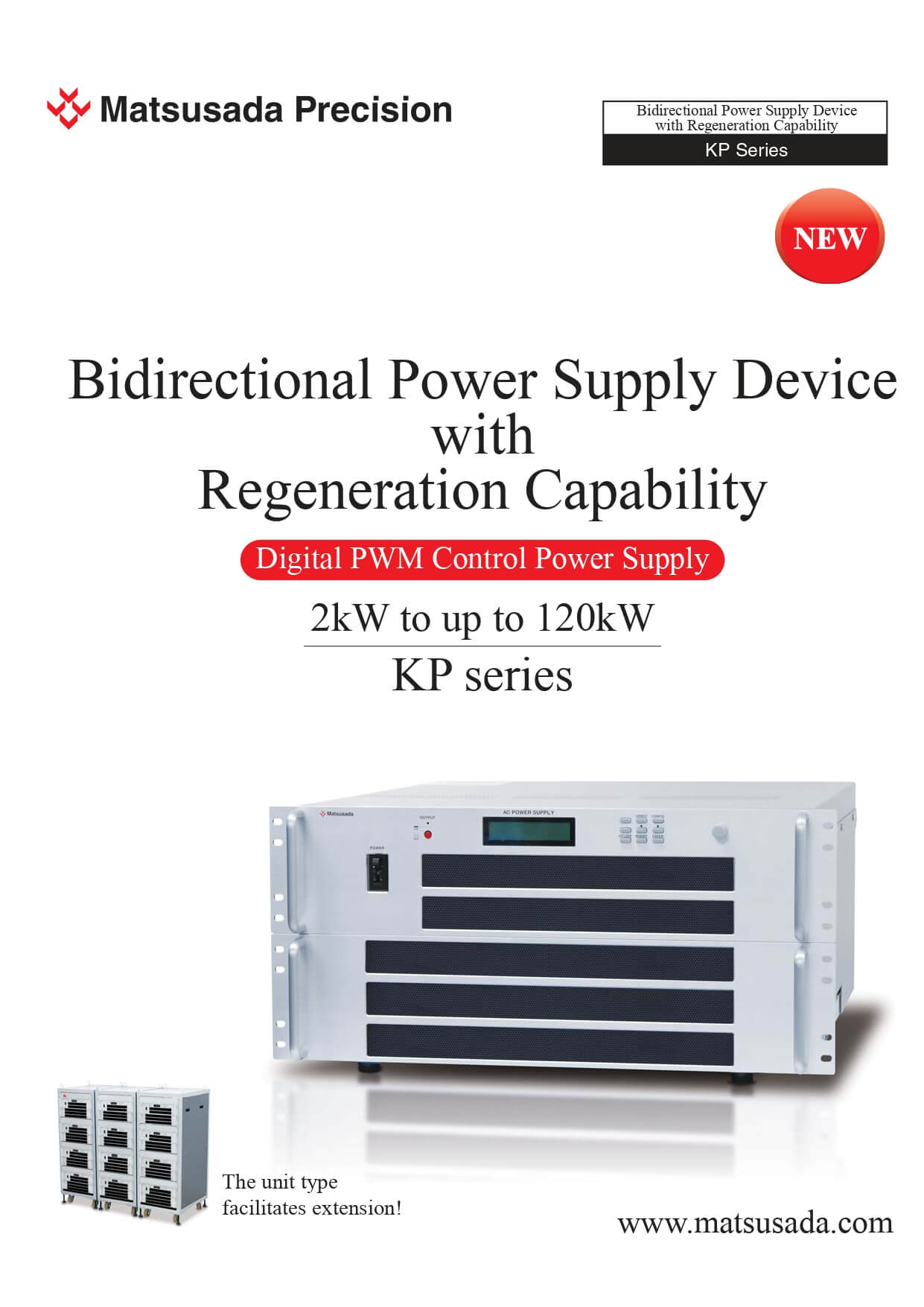

Bidirectional Power Supply Devices with Regeneration Capability

  • Max Voltage: 80V to 750kV
  • Max Current:
    4.5A to 320A, -4.5A to -320A
  • Max I/O Power: 2kW to 120kW
  • Redundancy

KP series is no longer available as we have stopped the production and sales this model in September 2020. Meanwhile, we support. PBR series is available as the successor model, and more information on the series can be found here.

PBR series

Bidirectional Power Supplies enable power running and regenerating operation

KP series is the sophisticated bidirectional power supply device with the regeneration capability*, optimal for evaluating not only in-car inverters for hybrid and electric vehicles but motors, generators, high-capacity vehicle batteries, and capacitors as well as wind or solar power generation. We make available the extensive lineup ranging from 2 kW to 120 kW so you can choose the optimal model according to various applications, including development and production.

* The device is designed on the assumption that all regenerated power is consumed on the premises.

Features and Benefits

  • Extensive lineup of over 20 different models ranging from 2 kW to 120 kW.
  • The regeneration capability achieves effective power use.
  • Cooperation operation is also possible.
  • KP also has the redundancy which can be operated without stopping the whole even if it stops one power supply unit.(Please consult for detail.)
  • The unit configuration facilitates extension after introduction. (up to 120 kW)
  • Smooth switching between power running and regeneration.
  • Reduced power consumption helps mitigate rise in ambient temperature.

Applications

The device is available as the regenerating electronic load and power supply device for:

  • The unit configuration facilitates extension after introduction. (up to 120 kW)
  • Smooth switching between power running and regeneration.
  • Reduced power consumption helps mitigate rise in ambient temperature.
Use of KP Series

* No model is designed to enable self-sustained operation. They stop when the system power supply is disconnected.

The model that may be used as a battery simulator will be available soon. Contact our sales staff for details.

Models

Model I/O Power [kW] Power supply mode
(power running mode)
Load mode
(regeneration mode)
DC output voltage [V] DC output current [A] DC input voltage [V] DC input current [A]
KP80-32(2kW) 2 0 to 80 32 0 to 80 -32
KP80-80(5kW) 5 80 -80
KP80-160(10kW) 10 160 -160
KP80-320(20kW) 20 320 -320
KP400-50(10kW) 10 0 to 400 50 40 to 400 -50
KP650-5(2kW) 2 0 to 650 5 65 to 650 -5
KP650-12(5kW) 5 12 -12
KP650-25(10kW) 10 25 -25
KP650-50(20kW) 20 50 -50
KP650-75(30kW) 30 75 -75
KP650-100(40kW) 40 100 -100
KP650-125(50kW) 50 125 -125
KP650-150(60kW) 60 150 -150
KP650-175(70kW) 70 175 -175
KP650-200(80kW) 80 200 -200
KP650-225(90kW) 90 225 -225
KP650-250(100kW) 100 250 -250
KP650-275(110kW) 110 275 -275
KP650-300(120kW) 120 300 -300
KP750-4(2kW) 2 0 to 750 4.5 200 to 750 -4.5
KP750-10(5kW) 5 11 -11
KP750-20(10kW) 10 22 -22

Specifications

For details, download the datasheet below.

Options

-LA1

Enables the following remote control and monitor output:

External control of output voltage:
Controls output voltage with the external control voltage (Vcon-in) between 0 and 10 V.
External control of output current:
Controls output current with the external control voltage (Vcon-in) between 0 and 10 V.
Output voltage monitor:
0 to +10 V (±3%F.S), output impedance of 1kΩ
Output current monitor:
0 to +10 V (max. negative current to max. positive current) (±3%F.S), output impedance of 1kΩ
Remote switch ON/OFF
(TTL of external relay)

-LBt

This option is required if the load is comprised of a battery. Contact our sales staff for details.
(This option is available only for the 80 V I/O model.)

Dimensions

For details, download the datasheet below.
