NEW
MICRO CT SCANNER
High Speed, High Resolution X-Ray Microtomography
- Max X-ray voltage: 130kV
- High resolution
- High speed
- Easy-to-use
High resolution and High speed scanning X-Ray Micro CT System
In the age of advanced precision industrial production, high-performance components are becoming more
widespread and more popular. Higher speed, as well as quality in testing, is required for such modern devices.
The high-resolution precision CT9600, designed for accurate and intuitive operation, provides a high-speed and simple measurement on the desk. The X-ray system facilitates the visualization of defect detection, contributing to the high-speed solution of the users' problems.
FEATURES AND BENEFITS
-
EASY SCANNING for OPTIMAL TOMOGRAPHY
Using the simple conditioning method, you can only follow the instruction shown on the guide area without axis calibration. -
INCREASING WORK EFFICIENCY
Fastest 18 seconds * Tomography only
Rolling scan greatly reduces the shooting time of tomography. - ENHANCING IMAGE QUALITY with VARIOUS FUNCTIONS
- INTUITIVE USER INTERFACE
- EASY and SAFETY INSPECTION
BEST TOMOGRAPHY WITH HORIZONTAL RADIATION
Non-destructive testing has two types of horizontal X-ray radiation and vertical radiation inspection systems. The horizontal type unit is ideal for tomography since it can ignore the effect of gravity. The vertical type has difficulty in shooting the sample with rotation since the effect of gravity causes the rotation axis to shift, resulting in a blurred image. The effect will be especially evident if the sample is too large or heavy. Therefore, the horizontal radiation CT system is perfect. It can ignore most gravity, and the rotation axis is stable during the sample rotating operation, which is ideal for tomography.
SAMPLES
Models
| Model | X-ray tube voltage |
|---|---|
| precision CT9600 | 40 kV to 130 kV |
Functions
EASY SCANNING for OPTIMAL TOMOGRAPHY
THREE EASY STEPS (Testing in radiography and tomography)
-

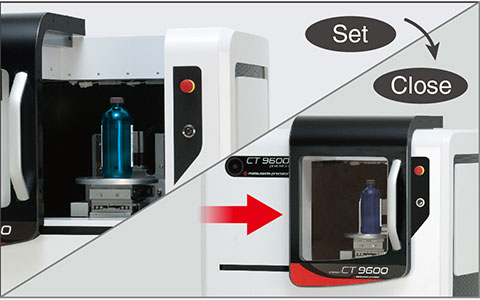

Set up object
Simply place the object on the stage and close the door to complete the set.
* The CT Ready function eliminates the need to place the object in the center of the stage.
-
Position to Ready
Click the Ready button and follow the instruction in the guide area for tomography. You can easily perform positioning for tomography.
In object positioning, adjust the stage to position the object in the center of the monitor screen. Set the magnification you need as well.
Three-axis adjustment
Adjust the stage back and forth, left and right, and up and down to position.Forward/Backward and left/right
Zoom in/out and image angle adjustment
Up/Down
Image angle adjustment
-
Start CT Scan

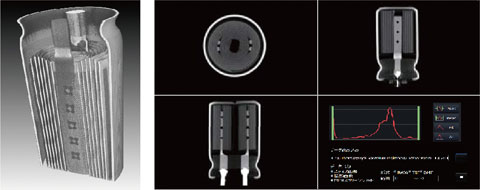

Click the Scan button to start tomography. The tomographic images of multiplanar reconstruction (MPR) are provided.
CT READY FEATURE for USER FRIENDLY
With its CT Ready feature, there is no need to center the object on the stage. Accordingly, a series of procedures is no longer needed to check whether the sample is placed in the center of the stage: Shooting, Fine adjustment of the sample position, Door opening/closing, reshooting, and more). This function shortens working time remarkably, and supports operators who take multiple tomographic images.
Difference between Normal Scan and Offset Scan
In Normal scan, if the width of the vision image of the sample is larger than the width of the X-ray camera, you need to shoot the sample repeatedly to obtain the tomographs. On the other hand, using offset scan, the center of the X-ray camera is shifted from the center of rotation of the sample for shooting, so a tomograph of a wide area at a time can be taken.
Scanning time to one-tenth INCREASING WORK EFFICIENCY
The precision CT9600 employs Rolling scan that greatly reduces the scanning time of tomography. The existing method of stepping scan is still available according to applications. The horizontal radiation system offers easy and precise imaging without blur enabling high-precision tomography.
high-resolution
Stepping Scan
The stepping scan provides high-resolution images by stopping the rotation of the stage for each shot.
NEW High-speed
Rolling Scan
The rolling scan provides continuous shooting without stopping the stage rotation that can reduce the shooting time remarkably.
EASY SETUP by SIMPLY SELECTING from 3 SHOOTING LEVELS
Conventional models require detailed settings for conditions such as the number of shots and exposure time.
The precision CT9600 has three pre-set shooting levels with certain conditions, enabling one-click setting.
* Rolling scan is only available
ENHANCING IMAGE QUALITY with VARIOUS FUNCTIONS
Reduces Ring Artifacts and Beam Hardening
The precision CT9600 enables artifact reduction, which is impossible with traditional systems.
Metal Artifact Reduction
The precision CT9600 enables metal artifact reduction in the tomographic images.
Using Cross-sectional images reduced metal artifacts structural analysis and internal observation are available.
Automatic Calculation of Rotation Axis with Auto-Focusing Function
The precision CT9600 eliminates axis calibration which is a time-consuming setting in previous models.
The product achieved improvement in operability and provides a stress-free operating environment. Moreover, a new additive method of an auto-focusing function provides more detailed information of the rotation axis with tomography, leading to image quality improvement.
Noise reduction by smoothing function
The smoothing function reduces the typical roughness of tomographic images vertically and horizontally.
INTUITIVE USER INTERFACE
EASY OPERATION by MOUSE
You can quickly determine the configurations and also confirm the information you need in the shooting while viewing the screen by dragging and clicking.
EASY and SAFETY INSPECTION
INTERLOCK and EMERGENCY STOP SYSTEM
The precision CT9600 employs the safety function to forcibly stop X-ray radiation in case the door is open during operation.
Options
- -LCTDaX
-
X-ray CT system
The precision CT9600 offers the following X-ray CT system options (sold separately by each option).
All VG functionalities (GD&T, material analyses, simulation), scalable via add-on modules)
- -LD
-
Electromagnetic lock
Locks the door to prevent it from opening during X-ray radiation.
- -LE
-
English support
Sets the language used in the supplied instruction manual, operating system, and software set to English.
The keyboard is changed to a US keyboard.
- -LF6
-
Detector Gradations Gradations 16,384 (14 bits) Resolutions 6 mega pixels Inspection area 114 mm × 146 mm Monitor size 27 inches, 4K
- -L(110V)
-
Input voltage 110 Vac ±10% Input
(Add the option name to the end of the Model name.)
- -L(115V)
-
Input voltage 115 Vac ±10% Input
(Add the option name to the end of the Model name.)
- -L(120V)
-
Input voltage 120 Vac ±10% Input
(Add the option name to the end of the Model name.)
- -L(200V)
-
Input voltage 200 Vac ±10% Input
(Add the option name to the end of the Model name.)
- -L(220V)
-
Input voltage 220 Vac ±10% Input
(Add the option name to the end of the Model name.)
- -L(230V)
-
Input voltage 230 Vac ±10% Input
(Add the option name to the end of the Model name.)
- -L(240V)
-
Input voltage 240 Vac ±10% Input
(Add the option name to the end of the Model name.)
How to Order
When ordering, add Option No. in the following order by alphabet, number to Model No.
Example: precision CT9600-LCTDaXE
Accessories (Sold separately)
- STG060
-
Four jaw chuck
The device has the shape of chuck jaws on its edge.
It is useful for observing samples that are difficult to fix to the stage. The device length needs to be changed according to the object size.
Please contact us.
Download
If you are unable to download a file
Please try the following solution.
- Please press Ctrl+F5 to clear the cache of your web browser and try again.
- Please restart your web browser and log in again to try again.
- Please change your web browser to another browser and try again.
- Restart the computer and try again.
- Please try again on a different computer.
-

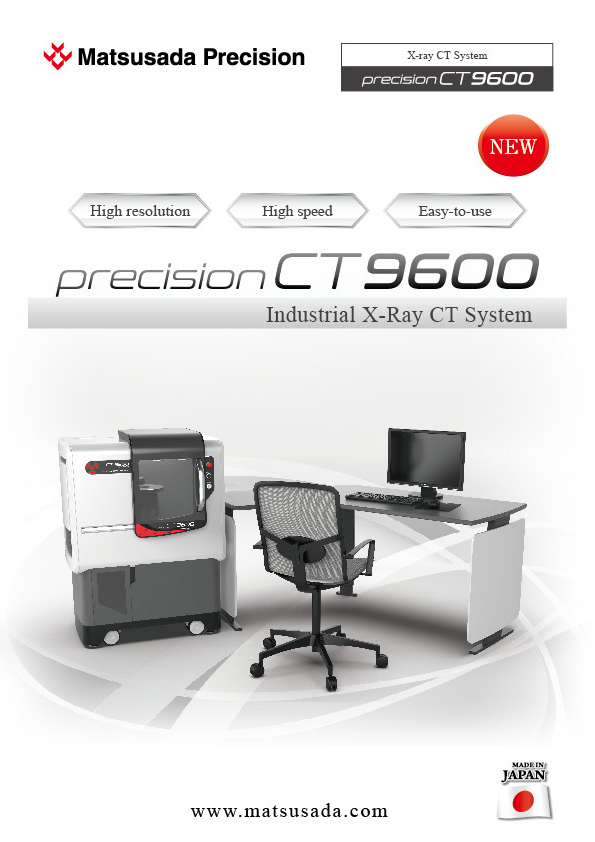

precision CT9600
