HIGH VOLTAGE POWER SUPPLIES FOR AVALANCHE PHOTODIODE (APD)

  • Voltage range: 50V to 300V
  • Low ripple
  • Input voltage: 5Vdc
  • DC-DC converter

Miniature high voltage power supplies - Ultra-compact PCB mountable

TP series is a high-voltage DC-DC converter ideally suited for biasing Avalanche Photodiodes (APDs) and PIN Photodiodes. With its miniature size, it saves precious space on your PCB and help you to make the board smaller.

FEATURES AND BENEFITS

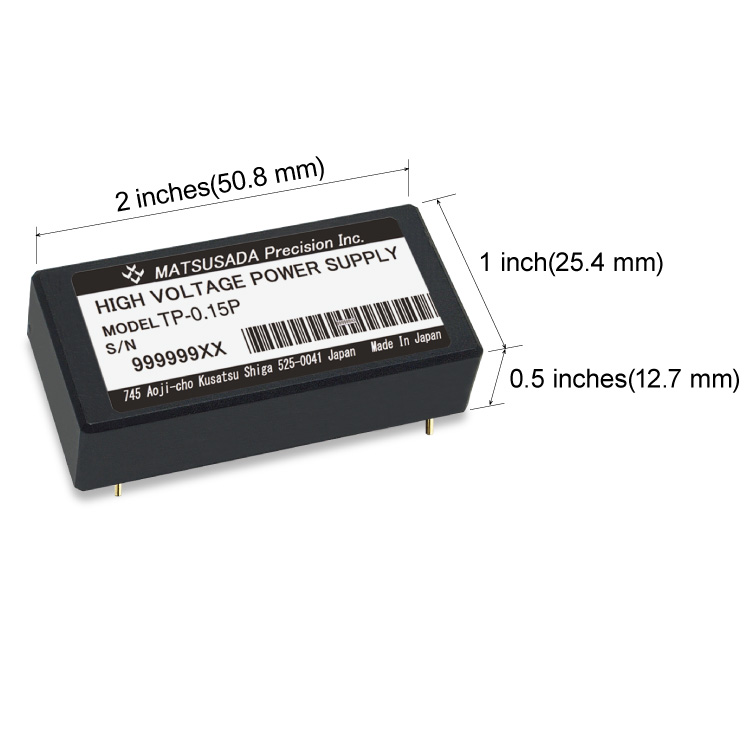

  • Miniature size, PCB mountable
  • Low ripple, < 10mVp-p
  • Output voltage controlled by remote control voltage
  • Output short circuit protected
  • Low cost
  • Plastic case

APPLICATIONS

Models

Positive polarity output
Model Output Voltage Rated load Input Current [typ.] Ripple
TP-0.05P 0 to +50 V 50 kΩ 50 mA Less than
10 mVp-p
TP-0.15P 0 to +150 V 150 kΩ 80 mA
TP-0.2P 0 to +200 V 200 kΩ 100 mA
TP-0.3P 0 to +300 V 300 kΩ 120 mA
Negative polarity output
Model Output Voltage Rated load Input Current [typ.] Ripple
TP-0.05N 0 to -50 V 50 kΩ 50 mA Less than
10 mVp-p
TP-0.15N 0 to -150 V 150 kΩ 80 mA
TP-0.2N 0 to -200 V 200 kΩ 100 mA
TP-0.3N 0 to -300 V 300 kΩ 120 mA

Specifications

For details, download the datasheet below.

Diagram

Connection Diagram

For details, download the datasheet below.

Dimensions

For details, download the datasheet below.
