HIGH STABILITY & ULTRA LOW NOISE HIGH VOLTAGE POWER SUPPLY

  • Voltage range:
    0.5kV to 5kV (J4 series)
    1kV to 5kV (J6 series)
  • Current:
    2.5W to 4W (J4 series)
    6W (J6 series)
  • Power: 2.5 to 4W (J4 series)
    6W (J6 series)
  • Extensive protection
    Ultra low noise
UL marking CE marking (For J4 series)

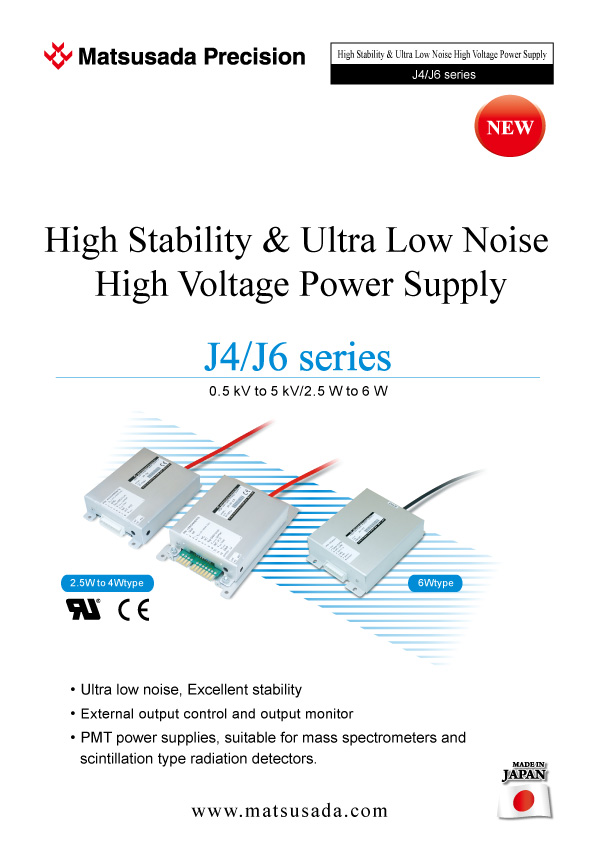

High Stability & Ultra Low Noise High Voltage Power Supply

Photomultiplier tube(PMT) power supplies, suitable for mass spectrometry and scintillation type radiation detectors.

J4 series

The J4 series is a high power (4 W) Photomultiplier Tube (PMT) power supply featuring ultra low noise (2 mV).
This high voltage power supply can be used not only for PMTs but also for phototubes, GM tubes, proportional counters, and Solid state detector (semiconductor radiation detectors).

J6 series

The J6 series is a high power (6 W) Photomultiplier Tube (PMT) power supply featuring ultra low noise (5 mV).
This high voltage power supply can be used not only for PMTs but also for phototubes, GM tubes, proportional counters, and Solid state detector (semiconductor radiation detectors).

FEATURES AND BENEFITS

J4 series

  • Ultra low noise, Excellent stability
  • External output control and output monitor
  • Extensive protection
  • Wide range output
  • UL1950 approved
  • CE marking approved (Low Voltage Directive)

J6 series

  • Ultra low noise, Excellent stability
  • High power 6 W
  • Output control with external voltage
  • Extensive protection circuit
  • External output control and output monitor

APPLICATIONS

Models

J4 series (4 W)

Model Output voltage
[kVdc]		 Output current
[mA]		 Ripple
[mVp-p]		 Safety standards
J4-0.5P 0 to 0.5 kV 8 mA 5 mVp-p UL mark CE mark
J4-0.5P-LX 0 to 0.5 kV 8 mA 5 mVp-p UL mark CE mark
J4-1P 0 to 1 kV 4 mA 2 mVp-p UL mark CE mark
J4-1P-LX 0 to 1 kV 4 mA 2 mVp-p UL mark CE mark
J4-1.5P 0 to 1.5 kV 2.5 mA 2 mVp-p UL mark CE mark
J4-1.5P-LX 0 to 1.5 kV 2.5 mA 2 mVp-p UL mark CE mark
J4-2P 0 to 2 kV 2 mA 2 mVp-p UL mark CE mark
J4-2P-LX 0 to 2 kV 2 mA 2 mVp-p UL mark CE mark
J4-3P 0 to 3 kV 1 mA 3 mVp-p UL mark CE mark
J4-3P-LX 0 to 3 kV 1 mA 3 mVp-p UL mark CE mark
J4-5P 0 to 5 kV 0.5 mA 10 mVp-p UL mark CE mark
J4-5P-LX 0 to 5 kV 0.5 mA 10 mVp-p UL mark CE mark
Model Output voltage
[kVdc]		 Output current
[mA]		 Ripple
[mVp-p]		 Safety standards
J4-0.5N 0 to -0.5 kV 8 mA 5 mVp-p UL mark CE mark
J4-0.5N-LX 0 to -0.5 kV 8 mA 5 mVp-p UL mark CE mark
J4-1N 0 to -1 kV 4 mA 2 mVp-p UL mark CE mark
J4-1N-LX 0 to -1 kV 4 mA 2 mVp-p UL mark CE mark
J4-1.5N 0 to -1.5 kV 2.5 mA 2 mVp-p UL mark CE mark
J4-1.5N-LX 0 to -1.5 kV 2.5 mA 2 mVp-p UL mark CE mark
J4-2N 0 to -2 kV 2 mA 2 mVp-p UL mark CE mark
J4-2N-LX 0 to -2 kV 2 mA 2 mVp-p UL mark CE mark
J4-3N 0 to -3 kV 1 mA 3 mVp-p UL mark CE mark
J4-3N-LX 0 to -3 kV 1 mA 3 mVp-p UL mark CE mark
J4-5N 0 to -5 kV 0.5 mA 10 mVp-p UL mark CE mark
J4-5N-LX 0 to -5 kV 0.5 mA 10 mVp-p UL mark CE mark

J6 series (6 W)

Model Output Voltage
[kVdc]		 Output Current
[mA]		 Ripple
[mVp-p]
J6-1P 0 to 1 kV 6 mA 5 mVp-p
J6-1.5P 0 to1.5 kV 4 mA 5 mVp-p
J6-2P 0 to 2 kV 3 mA 5 mVp-p
J6-3P 0 to 3 kV 2 mA 10 mVp-p
J6-5P 0 to 5 kV 1.2 mA 20 mVp-p
Model Output Voltage
[kVdc]		 Output Current
[mA]		 Ripple
[mVp-p]
J6-1N 0 to -1 kV 6 mA 5 mVp-p
J6-1.5N 0 to -1.5 kV 4 mA 5 mVp-p
J6-2N 0 to -2 kV 3 mA 5 mVp-p
J6-3N 0 to -3 kV 2 mA 10 mVp-p
J6-5N 0 to -5 kV 1.2 mA 20 mVp-p

Specifications

For details, download the datasheet below.

Options

J4 series

-LMH

MHV output connector

-LSH

SHV output connector

-L15

Vin ±12 V to ±18 V @400 mA typ.

J6 series

-LMH

MHV output connector

-LSH

SHV output connector

How to Order

When ordering, add Option No. to Model No. in alphabetic order followed by numerical order.
Example: JP-0.5P-LXMH15, J6-1.5P-LMH

Accessory

CN8R

Assembled input connector with 9.84 inches(250 mm) flying lead

Diagram

For details, download the datasheet below.

Dimensions

For details, download the datasheet below.
