HPMS-1N series

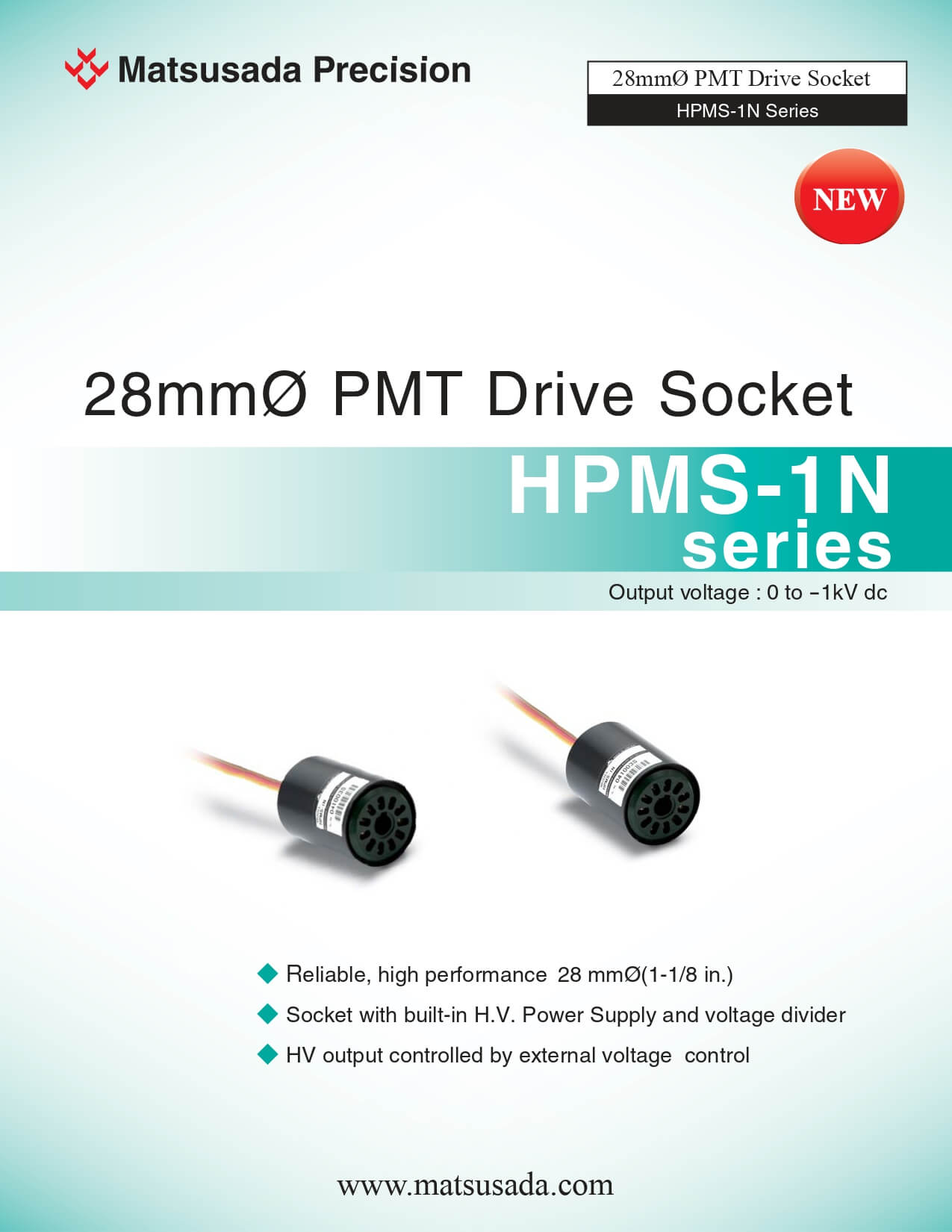

28mmØ PMT Drive Socket

High Voltage Socket Supply

28mmØ PMT Drive Socket (High Voltage Socket Supplies)

HPMS-1N is reliable, high performance power supply with a socket designed for 28 mmØ (1-1/8 in.) PMTs. Technological precision is also achieved in this compact power supply with conventional bleeder circuitry.

Features and Benefits

  • For 28 mm (1-1/8in.) side-on PMT
  • Socket with built-in H.V. Power Supply and voltage divider
  • Compact, easy operation
  • HV output controlled by external voltage control

Models

Model Output Voltage Anode Current Anode Ripple
HPMS-1N -1.0 kV 20 µA AVG. less than 1 mVp-p @-1000 V, 20 kΩ load

Specifications

For details, download the datasheet below.

Options

-L2: Voltage monitor output, 0 to -1V

(output impedance 15.2 kΩ typ)

Diagram

Internal Connection

For details, download the datasheet below.

Dimensions

For details, download the datasheet below.
